无人机在强震区地质灾害精细调查中的应用研究

王帅永 唐川 何敬 张卫旭 方群生 程霄

王帅永, 唐川, 何敬, 张卫旭, 方群生, 程霄. 2016: 无人机在强震区地质灾害精细调查中的应用研究. 工程地质学报, 24(4): 713-719. doi: 10.13544/j.cnki.jeg.2016.04.029
引用本文: 王帅永, 唐川, 何敬, 张卫旭, 方群生, 程霄. 2016: 无人机在强震区地质灾害精细调查中的应用研究. 工程地质学报, 24(4): 713-719. doi: 10.13544/j.cnki.jeg.2016.04.029
WANG Shuaiyong, TANG Chuan, HE Jing, ZHANG Weixu, FANG Qunsheng, CHENG Xiao. 2016: USE OF UNMANNED AERIAL VEHICLE FOR PRECISE INVESTIGATION OF GEOLOGICAL HAZARD IN STRONG SEISMIC ZONE. JOURNAL OF ENGINEERING GEOLOGY, 24(4): 713-719. doi: 10.13544/j.cnki.jeg.2016.04.029
Citation: WANG Shuaiyong, TANG Chuan, HE Jing, ZHANG Weixu, FANG Qunsheng, CHENG Xiao. 2016: USE OF UNMANNED AERIAL VEHICLE FOR PRECISE INVESTIGATION OF GEOLOGICAL HAZARD IN STRONG SEISMIC ZONE. JOURNAL OF ENGINEERING GEOLOGY, 24(4): 713-719. doi: 10.13544/j.cnki.jeg.2016.04.029

无人机在强震区地质灾害精细调查中的应用研究

doi: 10.13544/j.cnki.jeg.2016.04.029
基金项目:

科技基础性工作专项:西南地形急变带地质灾害综合调查与风险制图 2011FY110100-3

地质灾害防治与地质环境保护国家重点实验室团队项目 SKLGP2012Z002

详细信息
    作者简介:

    王帅永(1988-),男,硕士生,研究方向为3S技术在地质灾害中的应用.Email:932642157@qq.com

  • 中图分类号: P694;V279+.2

USE OF UNMANNED AERIAL VEHICLE FOR PRECISE INVESTIGATION OF GEOLOGICAL HAZARD IN STRONG SEISMIC ZONE

  • 摘要: 为对强震区地质灾害进行精细调查,基于无人机低空摄影测量系统能够获取高精度、高分辨率和高时效的遥感影像且具有灵活性强和不受复杂地形影响等特点。本文将无人机低空摄影测量系统应用到强震区地质灾害精细调查,探讨了强震区地质灾害无人机遥感精细调查流程及成果应用。以老虎嘴滑坡所在区域的应用为例,阐述了无人机遥感像片的获取和DEM、DOM及三维真实空间场景的制作方法,重点介绍了利用三维真实场景对地质灾害进行定性及定量分析及精确描述。实践结果表明:(1)同常规的遥感调查方法相比,该方法不仅能够获取更高分辨率和更高精度的地质灾害精细调查基础数据,而且还提高了其时效性及可靠性;(2)构建的地质灾害体三维真实空间场景突破了传统的二维地质灾害解译技术,提高了地质灾害解译的精度及准确度。本文较完整地阐述了无人机低空摄影测量系统在强震区地质灾害精细调查的流程及方法,可以较好地应用于强震区地质灾害精细调查。

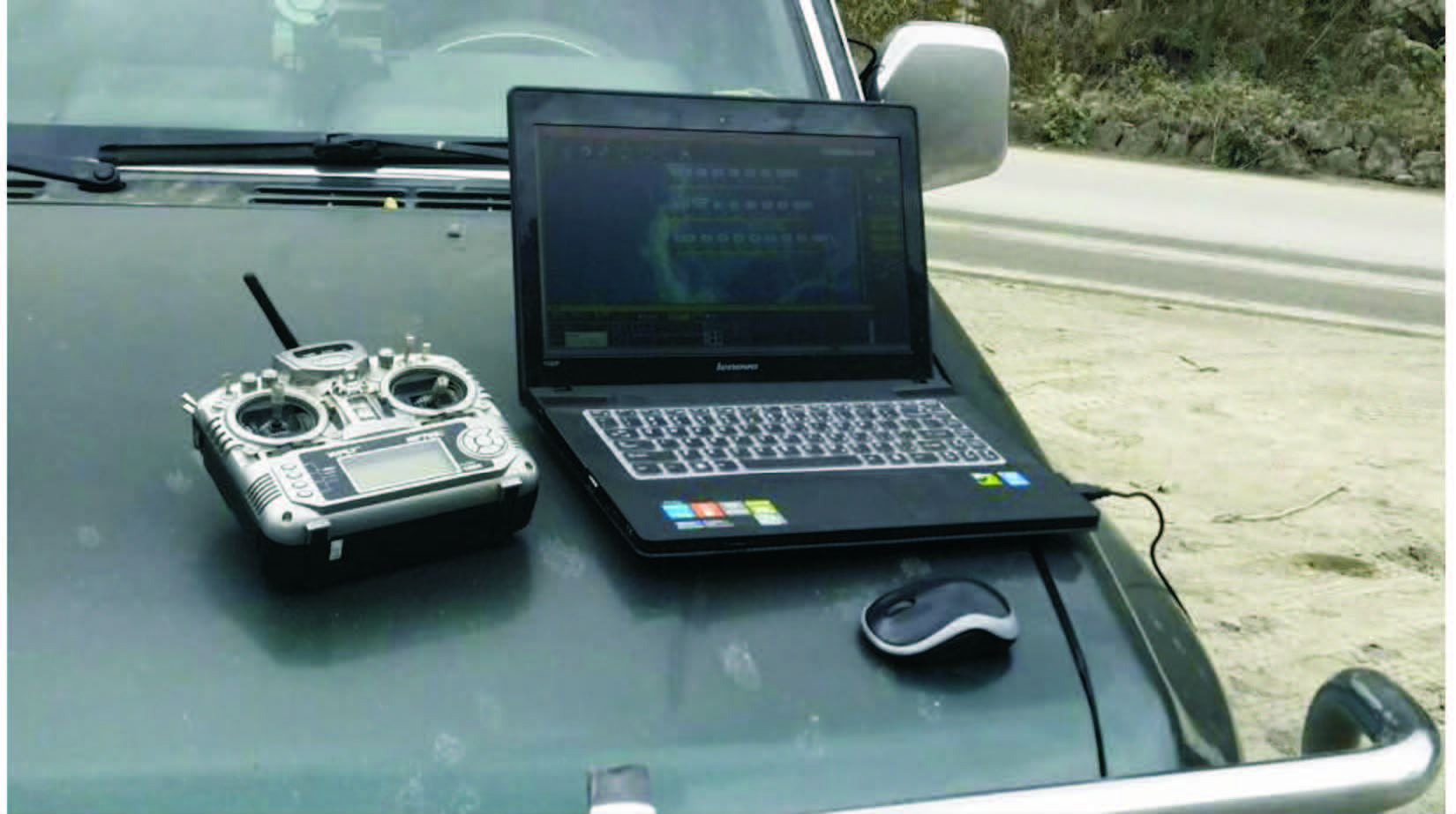

  • 图  1  无人机地面部分

    Figure  1.  Unmanned aerial vehicle ground part

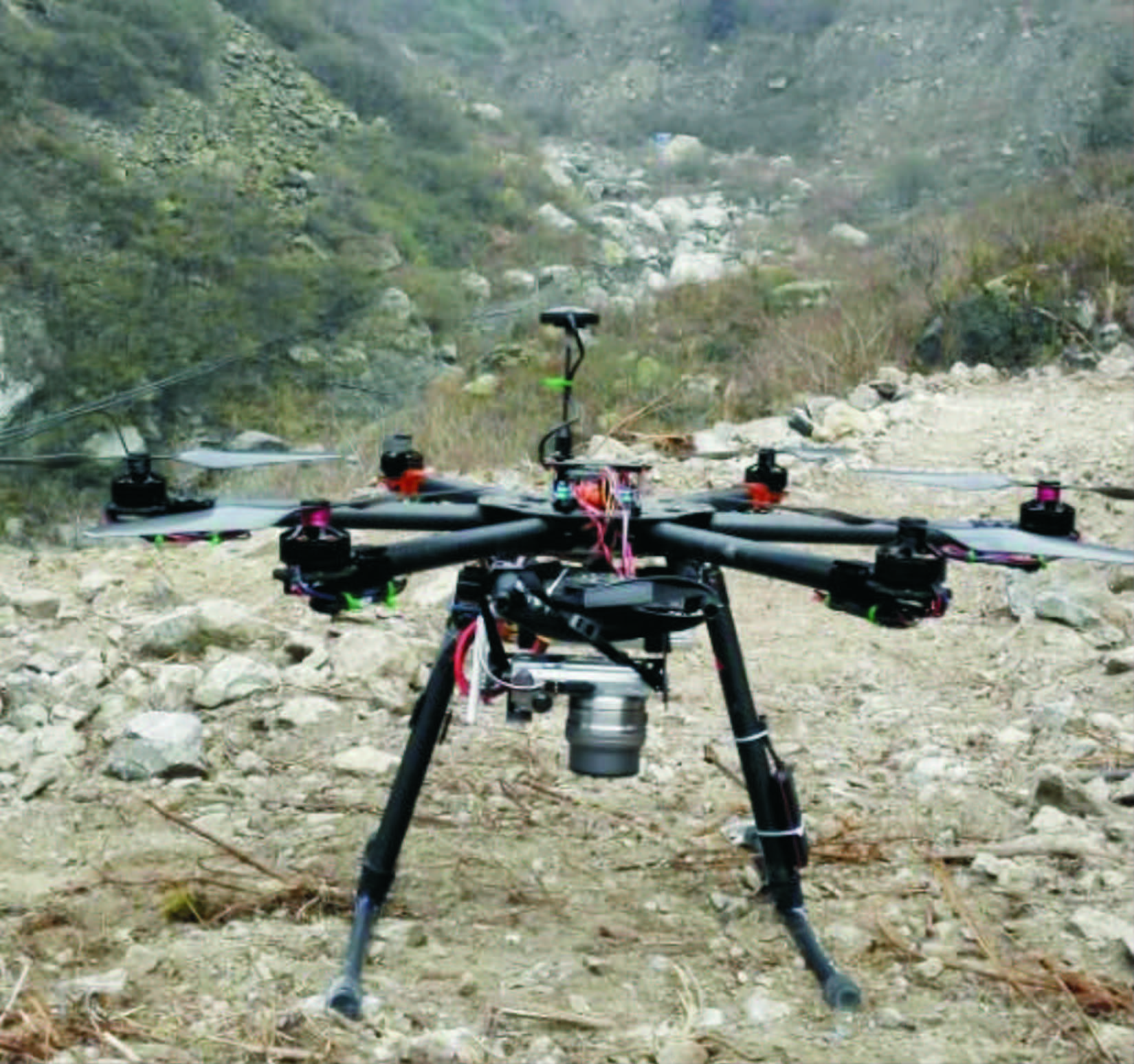

    图  2  无人机空中部分

    Figure  2.  Unmanned aerial vehicle air part

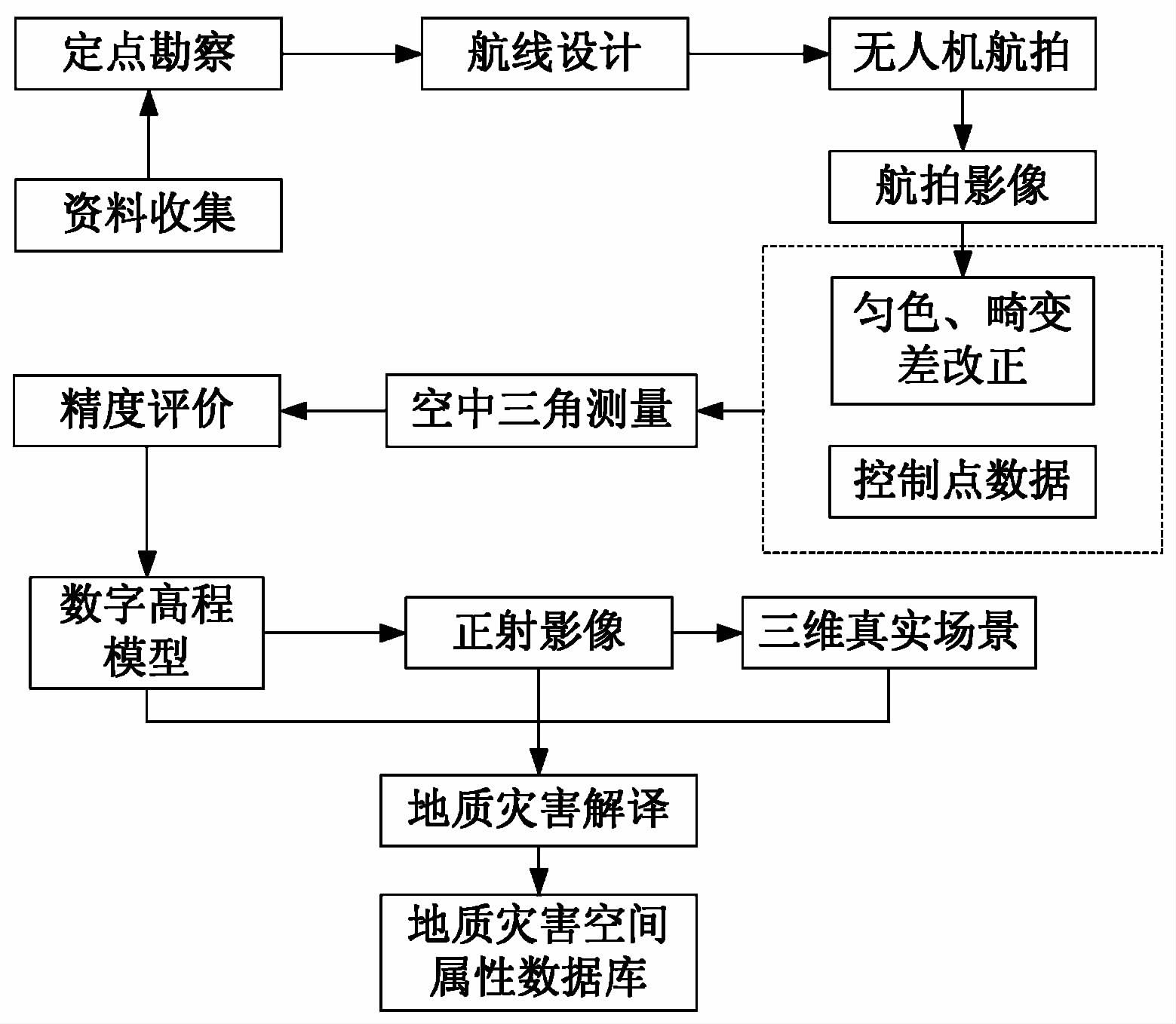

    图  3  无人机低空摄影测量系统的强震区地质灾害精细调查流程图

    Figure  3.  The flowchart of the precise investigation of geological hazard in stong earthquake zone based on unmanned aerial vehicle low-altitude photographic system

    图  4  老虎嘴滑坡单张航拍影像

    Figure  4.  The single aerial photograph of Laohuzui landslide

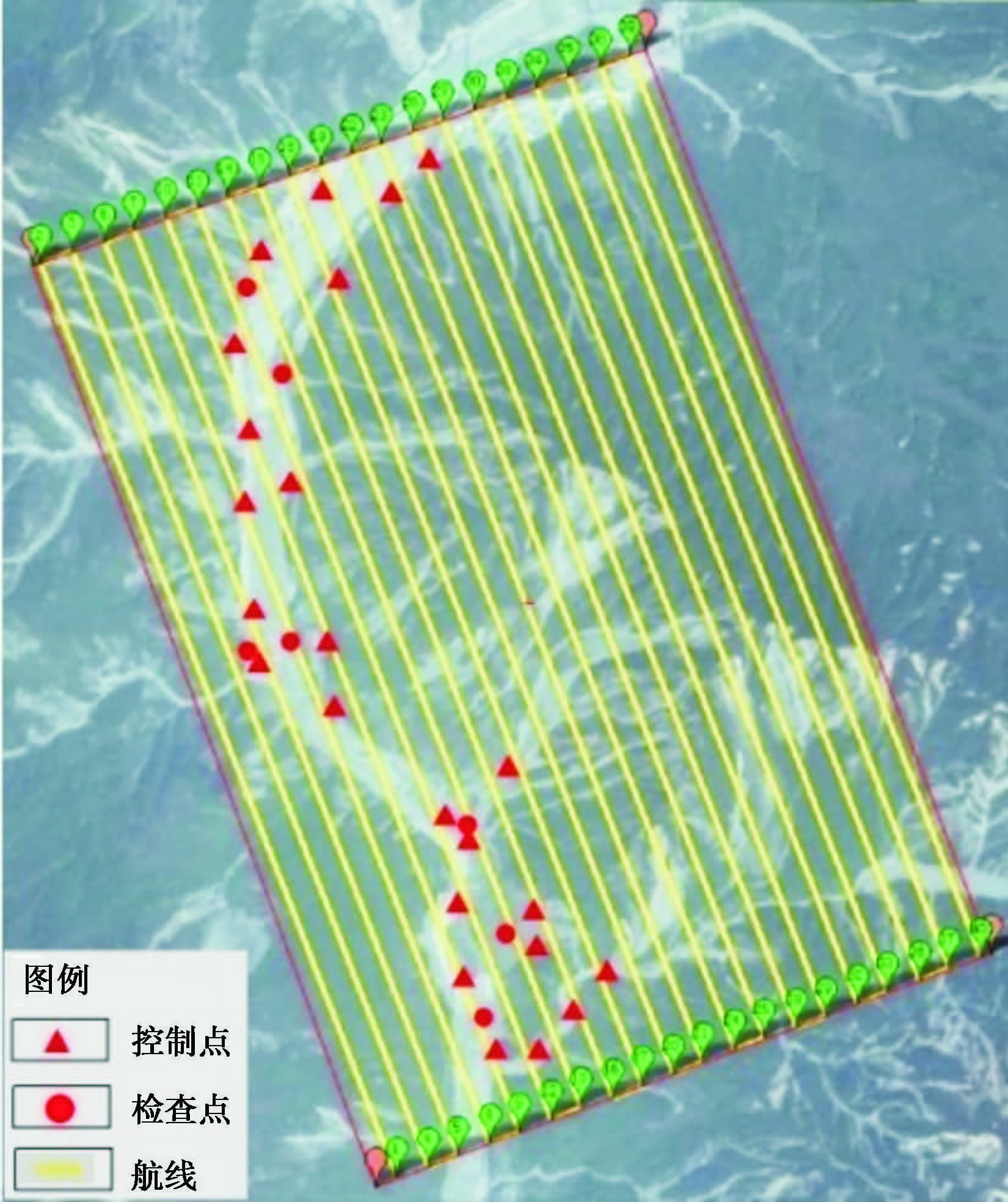

    图  5  航迹图

    Figure  5.  The air route map

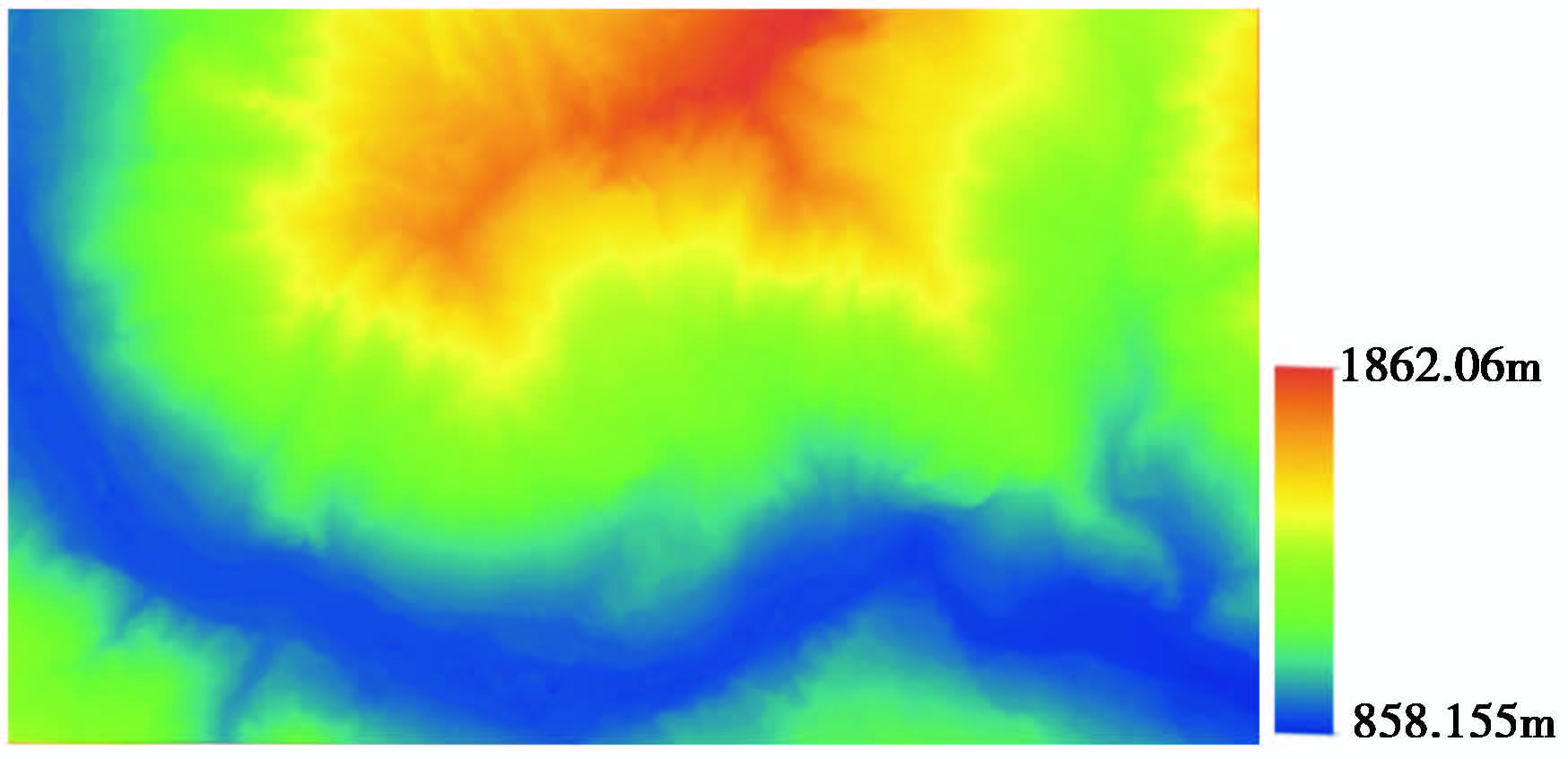

    图  6  研究区DEM栅格影像

    Figure  6.  DEM of study area

    图  7  研究区正射影像

    Figure  7.  DOM of study area

    图  8  研究区三维空间场景

    Figure  8.  Three dimensional scene of study area

    图  9  老虎嘴滑坡三维空间场景

    Figure  9.  Three dimensional scene of Laohuzui landslide

    表  1  无人机相关参数

    Table  1.   Parameters of unmanned aerial vehicle

    项目参数项目参数
    轴数六轴飞行半径15km
    轴距0.81m平飞速度30km·h-1
    空机重4kg巡航速度30km·h-1
    实际有效载荷2kg续航时间30min
    飞行高度1000m搭载相机Cannon 5DII
    下载: 导出CSV
  • [1] Chang Y M. 2013. Study on emergency evaluation to damaged roads and its application based on UAV in the earthquake area[D]. Chengdu:Southwest Jiaotong University.
    [2] Gao J J. 2010. Application of high precision UAV remote sensing in geological disaster investigation[D]. Beijing:Beijing Jiaotong University.
    [3] General administration of quality supervision, inspection and quarantine. Standardization Administration of China. 2008. GB/T7930-2008. Specifications for aerophotogrammetric office operation 1:500, 1:1000, 1:2000[S]. Beijng:Standards Press of China.
    [4] Gui D Z,Li Z J,Zhang C C. 2012. Research on construction of 3D building based on oblique images from UAV[J]. Science of Surveying and Mapping, 37 (4):140-142. http://cn.bing.com/academic/profile?id=2361678137&encoded=0&v=paper_preview&mkt=zh-cn
    [5] He J,Li Y S,Lu H, et al. 2010. Research of UAV image quality evaluation and geometry processing[J]. Bulletin of Surveying and Mapping,(4):22-24. http://cn.bing.com/academic/profile?id=2377451192&encoded=0&v=paper_preview&mkt=zh-cn
    [6] Li Z Z,Zhang X Z. 2012. Researth on the quick construction of 3D model of city based on oblique photogrammertric technique[J]. Geomatics & Spatial Information Technology, 35 (4):117-119. http://www.cnki.com.cn/Article/CJFDTOTAL-DBCH201204038.htm
    [7] Liang J T,Cheng Y L,Wang J, et al. 2013. Monitoring of a typical high position debris flow dynamic change in Wenchuan earthquake areas with unmanned aerial vehicles case study of Wenjiagou debris flows in Mianzhu county[J]. The Chinese Journal of Geological Hazard and Control, 24 (3):54-61. http://www.cnki.com.cn/Article/CJFDTOTAL-ZGDH201303011.htm
    [8] Liu S H. 2013. The production of digital orthophoto map based on the UAV[D]. Shanghai:East China Institute of Technology.
    [9] Lu H,Li Y S,He J,et al. 2011. Capture and processing of low altitude remote sensing images by UAV[J]. Engineering of Surveying and Mapping, 20 (1):51-54. http://cn.bing.com/academic/profile?id=2347500651&encoded=0&v=paper_preview&mkt=zh-cn
    [10] Ministry of land and resource of China. 2014. Speciflcation of comprehensive survey for landslide, collapse and debris flow (1:50000)(DZ/T 0261-2014)[S]. Beijing:Standards Press of China.
    [11] Sun H W. 2014. Three dimensions modeling of digital city based on oblique photogrammetry method[J]. Modern Surveying and Mapping, 37 (1):18-21. http://en.cnki.com.cn/Article_en/CJFDTotal-JSCH201401006.htm
    [12] Zang K,Sun Y H,Li J,et al. 2010. Application of miniature unmanned aerial vehicle remote sensing system to Wenchuan earthquake[J]. Journal of Natural Disasters, 19 (3):162-166. http://cn.bing.com/academic/profile?id=2360594820&encoded=0&v=paper_preview&mkt=zh-cn
    [13] Zeng T,Yang W N,Jian J. 2009. Application of remote sensing images processing of unmanned air vehicle on the low attitude in quick acquirement of geological disasters information in Wenchuan earthquake[J]. Science of Surveying and Mapping, 34 (S):64-65, 55. http://cn.bing.com/academic/profile?id=2348133520&encoded=0&v=paper_preview&mkt=zh-cn
    [14] Zhang Q. 2007. Design and actualization of the aerial photographic system with the low altitude unmanned helicopter[D]. The PLA Information Engineering University.
    [15] Zhao X T,Hu K,Lu X P, et al. 2014. Precise detection method for mine geological disasters using low-altitude photogrammetry based on unmanned aerial vehicle[J]. Science of Surveying and Mapping, 39 (6):49-64. http://cn.bing.com/academic/profile?id=2389126240&encoded=0&v=paper_preview&mkt=zh-cn
    [16] Zhou J P,Gong J H,Wang T,et al. 2008. Study on UAV remote sensing image acquiring and visualization management system for the area affected by 5·12 Wenchuan earthquake[J]. Journal of Remote Sensing, 12 (6):877-884. http://cn.bing.com/academic/profile?id=2391110229&encoded=0&v=paper_preview&mkt=zh-cn
    [17] 常燕敏. 2013. 无人机影像在地震灾区道路损毁应急评估中的应用研究[D]. 成都:西南交通大学.
    [18] 高姣姣. 2010. 高精度无人机遥感地质灾害调查应用研究[D]. 北京:北京交通大学.
    [19] 国家质量监督检验检疫总局, 中国国家标准化管理委员会. 2008. GB/T7930-2008.1:500、1:1000、1:2000地形图航空摄影测量内业规范[S].北京:中国标准出版社.
    [20] 桂德竹,林宗坚,张成成. 2012. 倾斜航空影像的城市建筑物三维模型构建研究[J]. 测绘科学, 37 (4):140-142. http://www.cnki.com.cn/Article/CJFDTOTAL-CHKD201204048.htm
    [21] 何敬,李永树,鲁恒,等. 2010. 无人机影像的质量评定及几何处理研究[J]. 测绘通报,(4):22-24. http://www.cnki.com.cn/Article/CJFDTOTAL-CHTB201004009.htm
    [22] 李镇洲,张学之. 2012. 基于倾斜摄影测量技术快速建立城市三维模型研究[J]. 测绘与空间地理信息, 35 (4):117-119. http://www.cnki.com.cn/Article/CJFDTOTAL-DBCH201204038.htm
    [23] 梁京涛,成余粮,王军,等. 2013. 基于无人机遥感技术的汶川震区典型高位泥石流动态监测——以绵竹市文家沟泥石流为例[J]. 中国地质灾害与防治学报, 24 (3):54-61. http://www.cnki.com.cn/Article/CJFDTOTAL-ZGDH201303011.htm
    [24] 刘淑慧. 2013. 无人机正射影像图的制作[D]. 上海:华东理工大学.
    [25] 鲁恒,李永树,何敬,等. 2011. 无人机低空遥感影像数据的获取与处理[J]. 测绘工程, 20 (1):51-54. http://www.cnki.com.cn/Article/CJFDTOTAL-CHGC201101015.htm
    [26] 国国土资源部. 2014. 滑坡崩塌泥石流灾害调查规范(1:50000)(DZ/T 0261-2014)[S]. 北京:中国标准出版社.
    [27] 孙宏伟. 2014. 基于倾斜摄影测量技术的三维数字城市建模[J]. 现代测绘, 37 (1):18-21. http://www.cnki.com.cn/Article/CJFDTOTAL-JSCH201401006.htm
    [28] 臧克,孙永华,李京,等. 2010. 微型无人机遥感系统在汶川地震中的应用[J]. 自然灾害学报, 19 (3):162-166. http://www.cnki.com.cn/Article/CJFDTOTAL-ZRZH201003027.htm
    [29] 曾涛,杨武年,简季. 2009. 无人机低空遥感影像处理在汶川地震地质灾害信息快速勘测中的应用[J]. 测绘科学, 34 (增刊):64-65,55. http://www.cnki.com.cn/Article/CJFDTOTAL-CHKD2009S2023.htm
    [30] 张强. 2007. 低空无人直升机航空摄影系统的设计与实现[D]. 郑州:郑州信息工程大学.
    [31] 赵星涛,胡奎,卢晓攀,等. 2014. 无人机低空航摄的矿山地质灾害精细探测方法[J]. 测绘科学, 39 (6):49-64. http://www.cnki.com.cn/Article/CJFDTOTAL-CHKD201406011.htm
    [32] 周洁萍,龚建华,王涛,等. 2008. 汶川地震灾区无人机遥感影像获取与可视化管理系统研究[J]. 遥感学报, 12 (6):877-884. http://www.cnki.com.cn/Article/CJFDTOTAL-YGXB200806008.htm
