MODEL EXPERIMENT STUDY ON EROSION OF LOESS SLOPE DUE TO RAINFALL
-
摘要: 针对边坡表层受降雨冲刷易引发水土流失并导致滑坡灾害的难题, 以黄土边坡为例, 提出了一种基于减排水理念的生态固坡综合防护方法。采用自主研制的边坡降雨模拟实验装置, 考虑不同改良剂掺量、格构防护形式、雨强、历时、坡比等因素对防护效果的影响, 研究不同因素组合影响下的边坡土体侵蚀规律与演化机理。试验结果表明, 黄土边坡坡面侵蚀可归纳为溅蚀、片蚀、沟蚀、坍塌、滑坡的过程; 随改良剂掺量增加, 改良边坡抗侵蚀能力增强, 综合考虑提出改良剂的最优掺量为3‰; 与素土边坡相比, 3‰改良剂改良边坡受雨强的影响较小; 随降雨历时增加, 改良剂改良效果越明显; 改良剂、框格梁以及两者的综合利用, 均能有效提高边坡抗雨水冲刷与侵蚀能力; 边坡坡度增大至一定程度, 坡体受降雨侵蚀易突然发生整体滑塌, 需进行重点关注; 改良剂主要通过絮凝作用使土颗粒之间镶嵌黏结更紧密, 从而提高黄土的持水性和抗蚀性。Abstract: Slope surface erosion due to rainfall is liable to cause soil erosion and landslide hazard, which is a difficult problem.This paper takes a loess slope as an example and puts forward a comprehensive protection method of ecological slope based on the concept of water reducing and drainage.In order to study on soil erosion law and evolution mechanism of slope under different factors, the simulation experiments were carried out with the self-developed slope rainfall simulator.It considers modifier content, lattice protective form, intensity, duration, aspect ratio on the effect of protection.Test results show that the loess slope surface erosion can be summarized as splash erosion, sheet erosion, gully erosion and landslides.With the increase of the modifier content, the corrosion resistance of the improved slope is enhanced, and the optimal dosage of the modifier is 3‰.Compared with the plain loess slope, rainfall intensity has little influence on improved slope with 3‰modifier.With the increase of rainfall duration, the improvement effect of the modifier is more obvious.Modifier and frame as well as their comprehensive utilization can effectively improve the slope resistance to rainfall erosion.When the slope gradient increases to a certain extent, the slope is prone to collapse suddenly due to the rainfall erosion, which needs to be emphasized.The modifier mainly makes the soil particles more compacted by flocculation, so as to improve the water holding capacity and corrosion resistance of loess.
-
Key words:
- Loess /
- Landslide /
- Slope rainfall simulator /
- Modifier /
- Ecological slope /
- Gridiron /
- Microscopic mechanism
-
图 1 边坡降雨冲刷模拟装置
①.流量表; ②.降雨雾化喷头; ③.降雨架; ④.模型槽; ⑤.导水槽; ⑥.集水桶
Figure 1. The simulation device for slope rainfall erosion
图 2 降雨条件下坡面侵蚀的演变过程
a.5 min; b.10 min; c.15 min; d.25 min; e.35 min; f.45 min
Figure 2. Evolution process of slope surface rainfall erosion

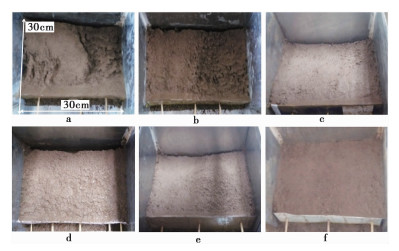

图 4 45 min后各边坡冲刷情况
a.素土; b.1‰PMP; c.2‰PMP; d.3‰PMP; e.4‰PMP; f.6‰PMP
Figure 4. The slope erosion situation after 45 min
图 5 不同工况下的黄土侵蚀累积量
Figure 5. Cumulative quantity of loess erosion under different working conditions
图 6 降雨45 min后各工况边坡侵蚀现象对比图
a.工况1;b.工况2;c.工况4;d.工况7;e.工况8;f.工况9
Figure 6. The slope erosion phenomenon after 45 min
图 8 25 min后不同雨强下的素土坡体
a.70 mm h-1; b.100 mm h-1; c.140 mm h-1
Figure 8. Soil slope under different rainfall intensity after 25 min
图 9 降雨15 min累积冲刷量随坡比的变化
Figure 9. Change of cumulative erosion with slope ratio after 15 min
图 11 素黄土SEM图像
a.×100;b.×500;c.×1000;d.×2000;e.×5000;f.×10000
Figure 11. The SEM images of loess
图 12 改良黄土SEM图像
×100;b.×500;c.×1000;d.×2000;e.×5000;f.×10000
Figure 12. The SEM of modified loess
表 1 试验用土参数
Table 1. Parameters of experimental soil
土的类型 改良剂掺量/‰ 密度/g·cm-3 含水率/% 塑限ωp/% 液限ωL/% 抗剪强度参数 崩解性 湿陷性 c /kPa φ /(°) 原状土 — 1.60 13.5 14.5 31.6 55.0 30.3 有 有 改良重塑土 0 1.60 13.5 14.5 31.6 4.7 22.8 有 有 1 1.60 13.5 15.2 32.3 7.0 24.3 无 无 2 1.60 13.5 14.5 34.6 13.2 23.2 无 无 3 1.60 13.5 14.5 37.4 15.1 24.7 无 无 4 1.60 13.5 14.7 39.9 18.6 24.2 无 无 6 1.61 13.5 13.2 42.3 22.4 26.0 无 无
下载: 导出CSV
表 2 不同工况表
Table 2. Different working table
工况编号 素土 改良剂改良土 框格梁 坡比 雨强/mm·h-1 1 √ — — 1︰1 70 2 — 1‰ — 1︰1 70 3 — 2‰ — 1︰1 70 4 — 3‰ — 1︰1 70 5 — 4‰ — 1︰1 70 6 — 6‰ — 1︰1 70 7 √ — √ 1︰1 70 8 — 1‰ √ 1︰1 70 9 — 3‰ √ 1︰1 70 10 √ — — 1︰1 100 11 — 3‰ — 1︰1 100 12 √ — — 1︰1 140 13 — 3‰ — 1︰1 140 14 √ — — 1︰0.75 70 15 — 3‰ — 1︰0.75 70 16 √ — — 1︰1.25 70 17 — 3‰ — 1︰1.25 70
下载: 导出CSV
表 3 冲刷速度降低率
Table 3. Reduction rate of scour velocity
改良剂掺量/‰ 冲刷速度降低率α/% 5min 10min 15min 25min 35min 45min 1 32.4 7.1 53.7 72.9 76.6 77.1 2 45.4 59.2 82.9 93.8 94.9 94.7 3 83.4 83.2 91.3 96.2 96.7 95 4 52.1 62.9 85.6 95 95.4 94.8 6 52.5 70.6 89.4 96.5 97.2 97.4
下载: 导出CSV
表 4 各工况下的累积冲刷量降低率
Table 4. Reduction rate of cumulative erosion under various operating conditions
工况情况 素土加格构梁 1‰改良土 3‰改良土 1‰改良土加格构梁 3‰改良土加格构梁 β/%(25min) 60 77 96 92 97 β/%(45min) 63 77 94 91 96
下载: 导出CSV
-
Cheng Y, Fang L, Zhao J F, et al.2010.Indoor scour model test of express way slope ecology protection using coconut fibre nets[J].Chinese Journal of Rock Mechanics and Engineering, 29 (S1):2935-2942. https://www.scientific.net/amr.655-657.1910.pdf Ding Y. 2011. Study on stability of high loess slope under artificial rainfall simulation[D]. Xi'an: Northwestern University. Fan H H, Wu P T, Gao J E, et al.2010.Microstructure characteristics of soil stabilized with cement-based soil stabilizer[J].Journal of Building Materials, 13 (5):669-674. http://en.cnki.com.cn/Article_en/CJFDTOTAL-JZCX201005022.htm Gu T F, Wang J D, Guo L, et al.2011.Study of Q3 loess microstructure changes based on image processing[J].Chinese Journal of Rock Mechanics and Engineering, 30 (增1):3185-3192. https://www.researchgate.net/publication/289473162_Factors_affecting_analysis_of_soil_microstructure_using_SEM Hu X W, Tang H M, Liu Y R.2005.Physical model studies on stability of Zhaoshuling landslide in area of Three Gorges Reservoir[J].Chinese Journal of Rock Mechanics and Engineering, 24 (12):2089-2095. http://www.oalib.com/paper/1484206 Hou Y C, Wang G Y.2014.Geotextile slope ecological protection structure of anti-scouring indoor simulation experiment research[J].Highways & Automotive Applications(4):118-120. Huang X H, Wang C M, Song P R, et al.2015.Physical simulation experiment for characteristic of loess slope erosion[J].Journal of Engineering Geology, 23 (4):725-730. Jia G W, Zhan L T, Chen Y M.2009.Model test study of slope instability induced by papid drawdown of water level[J].Chinese Journal of Rock Mechanics and Engineering, 28 (9):1798-1803. https://www.researchgate.net/publication/287623893_Model_test_study_of_slope_instability_induced_by_rapid_drawdown_of_water_level Jia S H.2007.Experimental study on soil and water conservation of geotextile[J].Soil & Water Conservation in China, 36-37. http://en.cnki.com.cn/Article_en/CJFDTOTAL-ZGSB200703015.htm Kukal S S, Kaur M, Bawa S S, et al.2007.Water-drop stability of PVA-treated natural soil aggregates from different land uses[J].Catena, 70(3):475-479. doi: 10.1016/j.catena.2006.11.013 Lee L M, Gofar N, Rahardjo H.2009.A simple model for preliminary evaluation of rainfall-induced slop instability[J].Engineering Geology, 108(3-4):272-285. doi: 10.1016/j.enggeo.2009.06.011 Liu J. 2011. Experimental study on development and application of polymer soil stabilizers[D]. Nanjing: Nanjing University. Liu Y M. 2013. Effects of EN-1 ionic stabilizer on loess soil and ryegrass[D]. Shaanxi: North West Agriculture and Forestry University. Li Z Q. 2014a. A new type of ecological restoration of rock and soil slopes and anti erosion stabilizer: China, CN103806439A[P]. 2014-05-21. Li Z Q. 2014b. Method for preventing erosion and ecological restoration of rock soil slope: China, CN103806456A[P]. 2014-05-21. Li Z Q. 2014c. Low carbon recovery and greening slope fixing method for unsaturated sandy soil slope: China, CN103806455A[P]. 2014-05-21. Ni S C, Hu X R, Mao X Q, et al.2008.Experimental study on slope runoff of loess slope vegetation under condition of indoor artificial rainfall simulation[J].Journal of Soil and Water Conservation, 22 (5):22-25. http://en.cnki.com.cn/Article_en/CJFDTOTAL-TRQS200805004.htm San Z J. 2010. Mechanism study on the reinforcement of EN-1 Ionic soil stabilizer to the loess slope[D]. Beijing: Graduate School of Chinese Academy of Sciences. Su T. 2011. Mechanism on scourresistance stabilityof EN-1 solidified slope in Pisha sandstone region [D]. Shaanxi: North West Agriculture and Forestry University. Terry, Richard E, Nelson, et al.1986.Effects of polyacrylamide and irrigation method on soil physical properties[J].Soil Science, 141(5):317-320. doi: 10.1097/00010694-198605000-00003 Tu X B, Kwong A K L, Dai F C, et al.2009.Field monitoring of rainfall infiltration in a loess slope and analysis of failure mechanism of rainfall-induced landslides[J].Engineering Geology, 105(1-2):134-150. doi: 10.1016/j.enggeo.2008.11.011 Tian H, Kong L W, Li B.2015.Centrifugal modeling tests on stability of deposits slope under rainfall[J].Rock and Soil Mechanics, 36(11).3180-3186. doi: 10.1061/%28ASCE%29GT.1943-5606.0000024 Wang F H, Li J C, Tian W P.2009.Test on rainfall filtration in loess slope[J].Journal of Chang'an University(Natural Science Edition), 29 (4):20-24. http://en.cnki.com.cn/Article_en/CJFDTOTAL-XAGL200904004.htm Wu C P. 2013. Indoor model test research on loess slope under artificial rainfall conditions[D]. Shaanxi: Northwest Agriculture & Forestry University. Xia J H, Du Y D, Meng W Z.2000.Simulated experiment of preventing soil erosion with polyacrylamide on sloping field[J].Journal of Soil and Water Conservation, 14 (3):14-17. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=trqsystbcxb200003003 Xiao X X, Xia K Q, Xu M, et al.2013.Stability of landslide on Three Gorges dam reservoir with physical simulate on model[J].Journal of Engineering Geology, 21 (1):45-52. doi: 10.1007/s12665-014-3205-x Zhao M H, Jiang D S, Chen C F, et al.2004.Research on on-the-spot and indoor washing-out tests of ecological protection of rocky slopes[J].Journal of Hunan University(Natural Science), 31 (5):77-81. http://en.cnki.com.cn/Article_en/CJFDTOTAL-HNDX200405018.htm Zhao X M, Shi J J, Wang W, et al.2007.Experimental study on the herbage plant and degradation of the red jute geotextile[J].Journal of Xi'an University of Engineering Science & Technology, 21(3):310-314. http://en.cnki.com.cn/Article_en/CJFDTotal-XBFZ200703007.htm Zhang M, Wu H F.2007.Rainfall simulation techniques in centrifuge modelling of slopes[J].Rock and Soil Mechanics, 28 (S):53-57. http://en.cnki.com.cn/Article_en/CJFDTOTAL-YTLX2007S1011.htm 程晔、方靓, 赵俊峰, 等.2010, 高速公路边坡CF网防护抗冲刷室内模型试验研究[J].岩石力学与工程学报, 29 (增1):2935-2942. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=yslxygcxb2010z1049 丁勇. 2011. 人工降雨模拟作用下的黄土高边坡稳定性研究[D]. 西安: 西北大学. 樊恒辉, 吴普特, 高建恩, 等.2010.水泥基土壤固化剂固化土的微观结构特征[J].建筑材料学报, 13 (5):669-674. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=jzclxb201005021 谷天峰, 王家鼎, 郭乐, 等.2011.基于图像处理的Q3黄土的微观结构变化研究[J].岩石力学与工程学报, 30 (增1):3185-3192. http://edu.wanfangdata.com.cn/Periodical/Detail/kxjsygc201431016 黄晓虎, 王常明, 宋朋燃, 等, 2015.黄土边坡降雨侵蚀特征的物理模拟试验研究[J].工程地质学报, 23 (4):725-730. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gcdzxb201504025 胡修文, 唐辉明, 刘佑荣.2005.三峡库区赵树岭滑坡稳定性物理模拟试验研究[J].岩石力学与工程学报, 24 (12):2089-2095. doi: 10.3321/j.issn:1000-6915.2005.12.014 侯永盛, 王桂尧.2014.土工布边坡生态防护结构的抗冲刷室内模拟试验研究[J].公路与汽运, (4):118-120. http://www.cnki.com.cn/Article/CJFDTotal-ZNQY201406033.htm 贾官伟, 詹良通, 陈云敏.2009.水位骤降对边坡稳定性影响的模型试验研究[J].岩石力学与工程学报, 28 (9):1798-1803. http://www.cqvip.com/QK/96026X/200909/31493224.html 贾生海.2007.土工织物保土保水试验研究.中国水土保持, (3):36-37. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgstbc200703015 刘瑾. 2011. 新型高分子土壤稳定剂的研制及其应用研究[D]. 南京: 南京大学. 刘月梅. 2013. EN-1固化剂对黄土性土壤与黑麦草的效应研究[D]. 陕西: 西北农林科技大学. 倪三川, 胡夏嵩, 毛小青, 等.2008.室内模拟降雨条件下黄土植被边坡径流试验研究[J].水土保持学报, 22 (5):22-25. http://www.cnki.com.cn/Article/CJFDTOTAL-TRQS200805004.htm 李志清. 2014a. 一种新型岩土体边坡生态恢复与抗侵蚀稳固剂: 中国, CN103806439A[P]. 2014-05-21. 李志清. 2014b. 一种岩土体边坡抗侵蚀与生态修复防护方法: 中国, CN103806456A[P]. 2014-05-21. 李志清. 2014c. 一种非饱和砂性土边坡低碳修复与绿化固坡方法: 中国, CN103806455A[P]. 2014-05-21. 单志杰. 2010. EN-1离子固化剂加固黄土边坡机理研究[D]. 北京: 中国科学院研究生院. 苏涛. 2011. 砒砂岩地区EN-1固化剂固化边坡抗冲稳定性的机理[D]. 陕西: 西北农林科技大学. 田海, 孔令伟, 李波.2015.降雨条件下松散堆积体边坡稳定性离心模型试验研究[J].岩土力学, 36 (11):3180-3186. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ytlx201511019 武彩萍. 2013. 人工降雨条件下黄土边坡的室内模型试验研究[D]. 陕西: 西北农林科技大学. 王福恒, 李家春, 田伟平.2009.黄土边坡降雨入渗规律试验[J].长安大学学报(自然科学版), 29 (4):20-24. http://www.cqvip.com/QK/90144B/200904/31203517.html 夏海江, 杜尧东, 孟维忠.2000.聚丙烯酰胺防治坡地土壤侵蚀的室内模拟试验[J].水土保持学报, 14 (3):14-17. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=trqsystbcxb200003003 肖先煊、夏克勤, 许模, 等.2013.三峡库区某滑坡稳定性模型试验研究[J].工程地质学报, 21 (1):45-52. http://www.cqvip.com/QK/98122X/201301/45133260.html 赵明华, 蒋德松, 陈昌富, 等.2004.岩质边坡生态防护现场及室内抗冲刷试验研究[J].湖南大学学报(自然科学版), 31 (5):77-81. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hndxxb200405018 赵雪曼, 史晶晶, 王卫, 等.2007.红麻土工织物草本种植及降解实验研究[J].西安工程科技学院学报, 21(3):310-314. http://www.cnki.com.cn/Article/CJFDTotal-XYSK200402017.htm 张敏, 吴宏伟.2007.边坡离心模型试验中的降雨模拟研究[J].岩土力学, 28(增刊):53-57. http://cpfd.cnki.com.cn/Article/CPFDTOTAL-AGLU200710007012.htm -
