2017年8月28日贵州纳雍县张家湾镇普洒村崩塌特征与成因机理研究

郑光 许强 巨袁臻 李为乐 周小棚 彭双麒

郑光, 许强, 巨袁臻, 李为乐, 周小棚, 彭双麒. 2018: 2017年8月28日贵州纳雍县张家湾镇普洒村崩塌特征与成因机理研究. 工程地质学报, 26(1): 223-240. doi: 10.13544/j.cnki.jeg.2018.01.023
引用本文: 郑光, 许强, 巨袁臻, 李为乐, 周小棚, 彭双麒. 2018: 2017年8月28日贵州纳雍县张家湾镇普洒村崩塌特征与成因机理研究. 工程地质学报, 26(1): 223-240. doi: 10.13544/j.cnki.jeg.2018.01.023
ZHENG Guang, XU Qiang, JU Yuanzhen, LI Weile, ZHOU Xiaopeng, PENG Shuangqi. 2018: THE PUSACUN ROCKAVALANCHE ON AUGUST 28, 2017 IN ZHANGJIA-WAN NAYONGXIAN, GUIZHOU: CHARACTERISTICS AND FAILURE MECHANISM. JOURNAL OF ENGINEERING GEOLOGY, 26(1): 223-240. doi: 10.13544/j.cnki.jeg.2018.01.023
Citation: ZHENG Guang, XU Qiang, JU Yuanzhen, LI Weile, ZHOU Xiaopeng, PENG Shuangqi. 2018: THE PUSACUN ROCKAVALANCHE ON AUGUST 28, 2017 IN ZHANGJIA-WAN NAYONGXIAN, GUIZHOU: CHARACTERISTICS AND FAILURE MECHANISM. JOURNAL OF ENGINEERING GEOLOGY, 26(1): 223-240. doi: 10.13544/j.cnki.jeg.2018.01.023

2017年8月28日贵州纳雍县张家湾镇普洒村崩塌特征与成因机理研究

doi: 10.13544/j.cnki.jeg.2018.01.023
基金项目:

国家创新研究群体科学基金 41521002

国家重点基础研究发展计划(973计划) 2014CB744703

地质灾害防治与地质环境保护国家重点实验室自主研究课题 SKLGP2015Z023

详细信息
    作者简介:

    郑光(1981-), 男, 博士生, 实验师, 主要从事地质灾害防治和模型试验研究工作.Email:flywing140@163.com

  • 中图分类号: P642.22

THE PUSACUN ROCKAVALANCHE ON AUGUST 28, 2017 IN ZHANGJIA-WAN NAYONGXIAN, GUIZHOU: CHARACTERISTICS AND FAILURE MECHANISM

  • 摘要: 2017年8月28日10时30分许,贵州省纳雍县张家湾镇普洒村后山约49.1×104 m3的山体发生高位崩塌,高速运动的碎屑物质沿途铲刮坡面原有松散崩滑堆积物,最终形成体积约为82.3×104 m3的堆积体,摧毁坡脚的普洒村大树脚组和桥边组居民区,造成26人遇难,9人失踪。通过对灾害发生现场进行详细的地质调查,本文综合运用无人机航拍、地面合成孔径雷达监测等技术手段,对普洒村崩塌体特征进行了详细描述,初步阐述了崩塌发生的动力学过程和成因机理,并对周边受崩塌体失稳影响而产生的欠稳定区岩体特征的危险性进行了分析评价。初步研究结果认为,崩塌源区岩体在下部巷道采煤的影响下产生拉张裂缝,之后在长期重力作用下,山体开始变形、破碎,最终整体失稳破坏。崩塌体从小规模掉块开始到整体失稳破坏、远程运动,直至最终停积,整个过程用时约7分21秒,其中主崩塌体失稳用时约26 s,远程运动距离约788 m,是一处典型的高位崩塌-碎屑流。深入研究普洒村崩塌的形成过程和成灾机理,对我国西南山区存在的与普洒村崩塌体类似条件的灾害隐患点的减灾防灾工作,具有重要的指导意义。

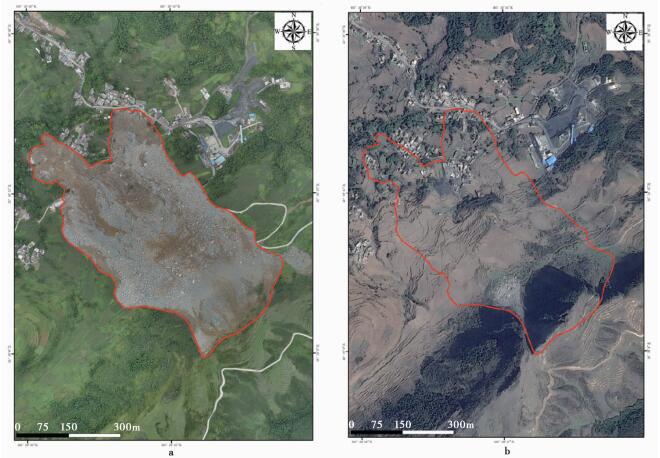

  • 图  1  普洒村崩塌发生前后影像图

    a. 2017年8月30日无人机影像;b. 2014年3月18日google earth图像

    Figure  1.  Pre-sliding and post-sliding images of Pusacun rockavalanche

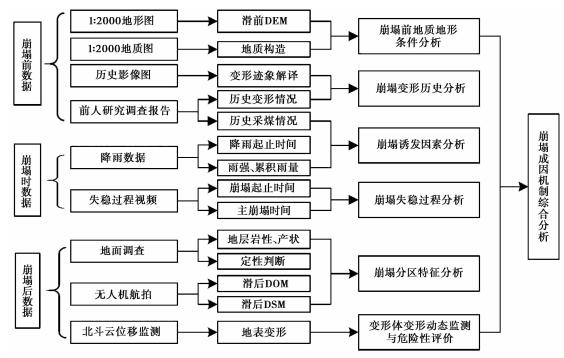

    图  2  分析研究数据与技术方法示意图

    Figure  2.  Flowchart indicating the data and methods used in this study

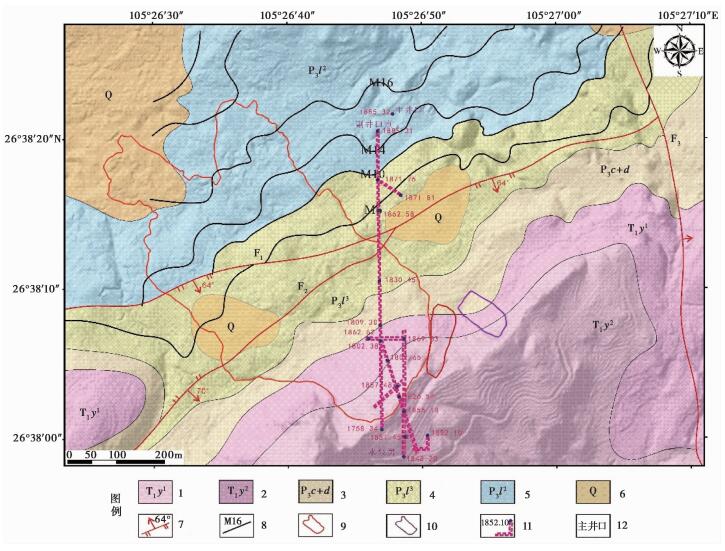

    图  3  8.28普洒村崩塌区附近地质构造图

    1.下三叠统夜郎组二段;2.下三叠统夜郎组一段;3.上二叠统长兴组+大隆组;4.上二叠统龙潭组三段;5.上二叠统龙潭组二段;6.第四系;7.断层;8.煤层露头及编号;9. 8.28崩塌边界;10.历史崩塌;11.地下采矿巷道及标高;12.井下设施;11及12数据由贵州省地质灾害应急技术指导中心提供

    Figure  3.  Geological map of the investigated area showing the outline of 8.28 Pusacun rockavalanche

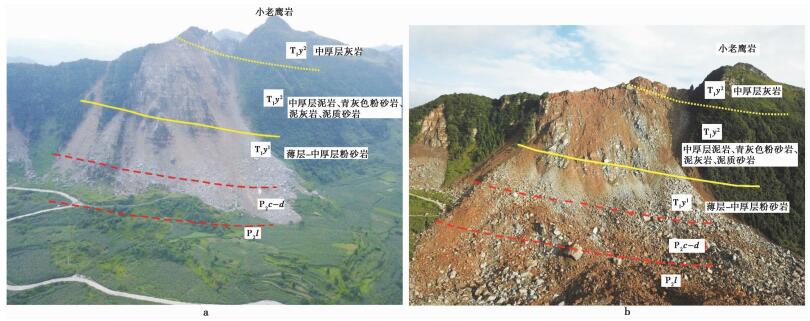

    图  4  崩塌源区出露地层及分布

    a.崩滑前;b.崩滑后

    Figure  4.  The stratums and their distribution in Pusacun rockavalanche source area

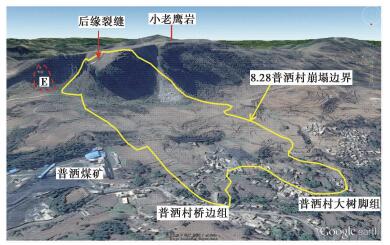

    图  5  普洒村崩塌前地貌及堆积区范围(据Google earth,2014年3月18日图像)

    黄色线为8.28崩塌边界,红色虚线所示E区为2016年发生小崩塌位置

    Figure  5.  3D satellite image of the investigated area showing the outline of Pusacun rockacalanche(the image was taken on Mar. 18 2014, copyright@Google Earth)

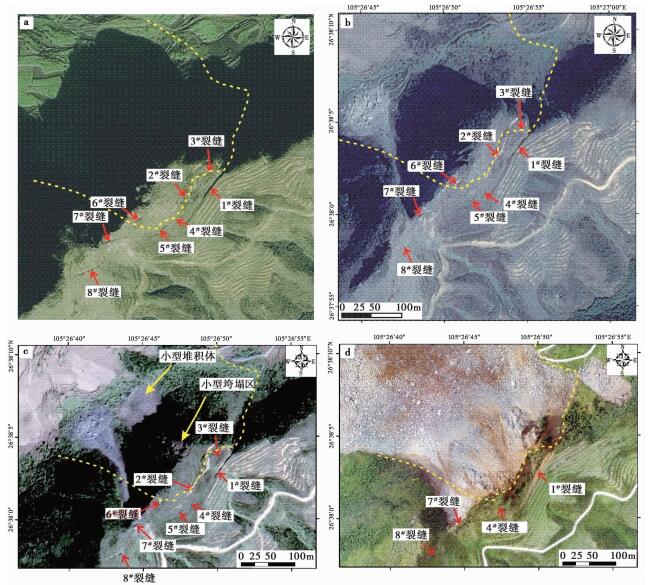

    图  6  崩塌源区岩体裂缝特征

    a. 2013年无人机正射影像图;b. 2014年Google Earth影像二维视图;c. 2015年国产高分2号卫星影像图;d. 2017年崩塌后无人机影像二维视图

    Figure  6.  Images of the rockavalanche source area showing the cracks

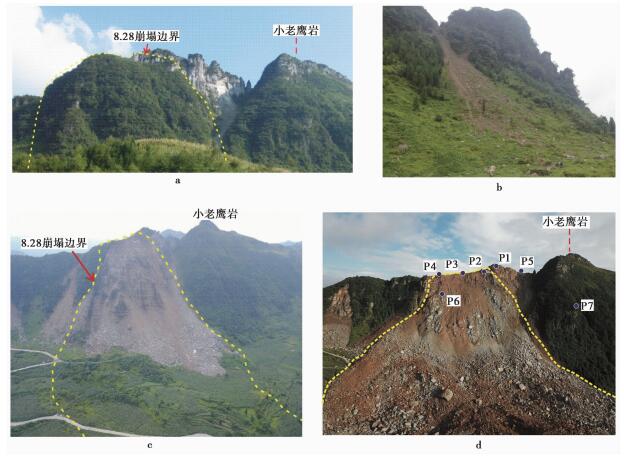

    图  7  崩塌源区地貌特征

    a. 2009年12月崩塌源区全貌;b. 2016年6月崩塌源区右后侧地貌;c. 2017年7月崩塌源区全貌;d. 2017年8月29日崩塌发生后全貌,P1~P7为应急抢险时雷达变形监测点;虚线为8.28崩塌边界

    Figure  7.  Images of the rockavalanche source area

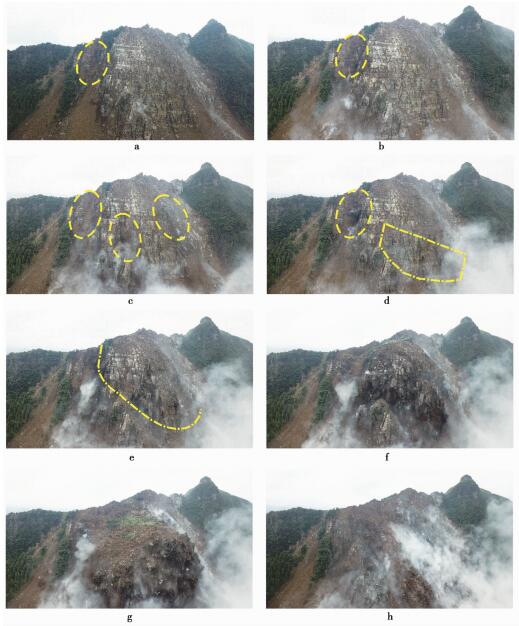

    图  8  崩塌源区山体失稳正面录像

    a. 0:27;b. 4:42;c. 6:14;d. 6:43;e. 6:52;f. 6:55;g. 7:00;h. 7:21

    Figure  8.  The runaway process of the rockmass in source area

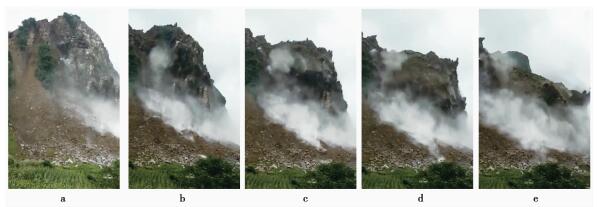

    图  9  崩塌发生过程侧面录像

    a. 1:36;b. 1:43;c. 1:45;d. 1:46;e. 1:48

    Figure  9.  The runaway process of rightside of rockmass in source area

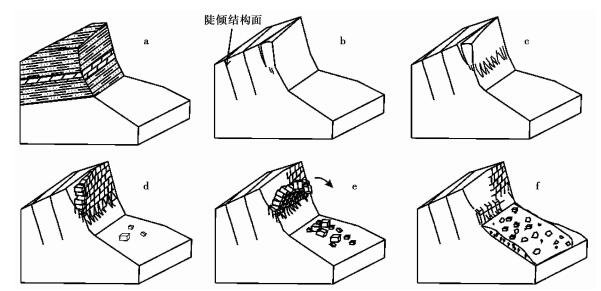

    图  10  崩塌源区山体失稳发展演化过程示意图

    Figure  10.  Conceptual models of formation and development process of the unstable rock mass in the source area

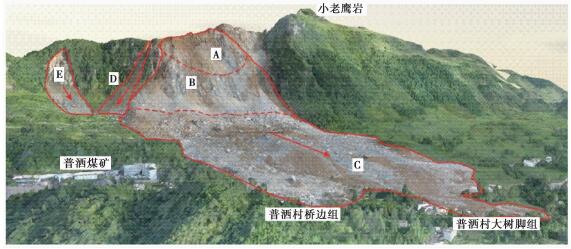

    图  11  普洒村崩塌及堆积区全貌

    Figure  11.  Avalanche source area and depositional area of Pusacun rockavalanche

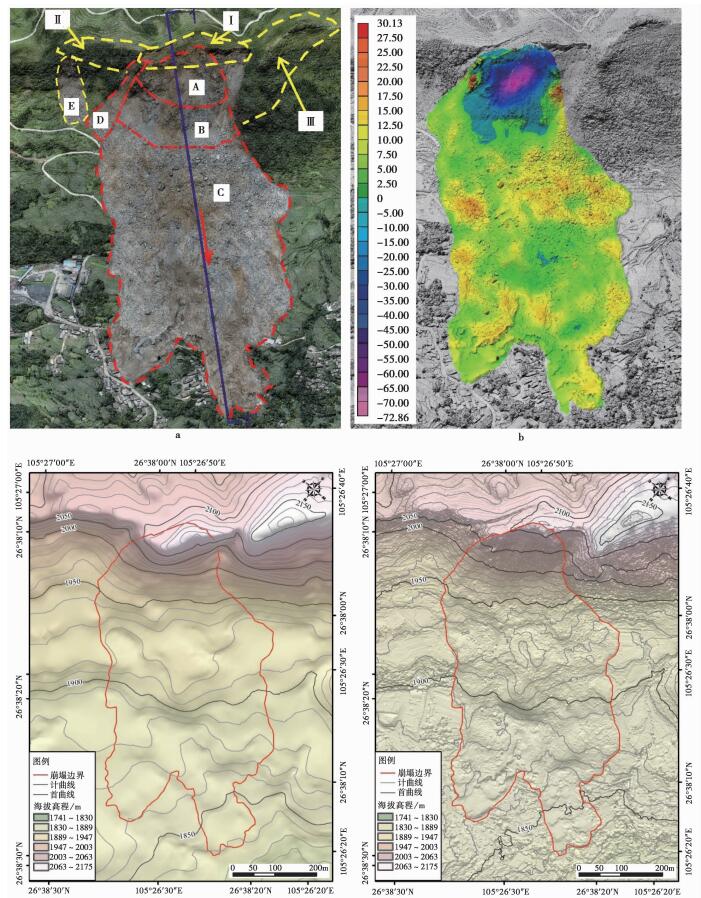

    图  12  崩塌区DEM影像

    a.崩塌后堆积区全貌,A、B、C、D为主崩塌区分区编号,E为2016年发生的小崩塌,Ⅰ、Ⅱ、Ⅲ为崩塌影响区编号;b.崩塌前后高程差值;c.崩塌前1︰2000DEM;d.崩塌后无人机航拍DEM

    Figure  12.  Pre-sliding and post-sliding DEMs of Pusacun rockavalanche

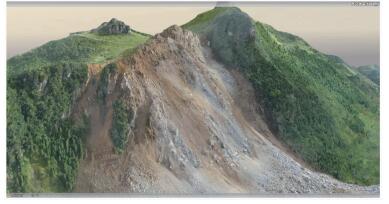

    图  13  崩塌源区和下落铲刮区三维模型影像

    Figure  13.  3D model of Pusacun rockavalanche showing the source area and transportation area

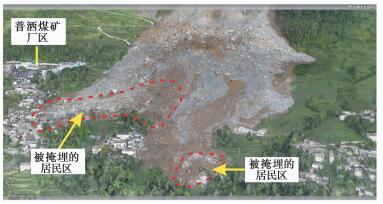

    图  14  崩塌流通堆积区三维航拍影像

    Figure  14.  3D aerial image of the depositional area of Pusacun rockavalanche

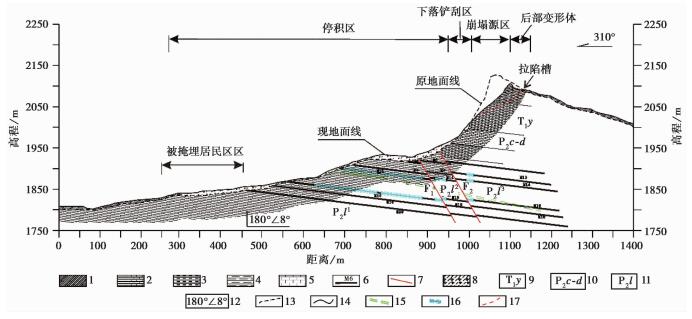

    图  15  崩塌地质剖面图(1-1′剖面)

    1.第四系堆积物,2.砂岩,3.泥岩,4.粉砂质泥岩,5.灰岩,6.煤层及编号,7.断层,8.崩塌堆积物,9.下三叠统夜郎组,10.下二叠统长兴-大隆组,11.上二叠统龙潭组,12.岩层产状,13.原始地面线,14.现地面线,15.矿道,16.采空区,17.拉裂缝;矿道和采空区是由普洒煤矿开采方案图(2010年7月)A-A′剖面投影所得

    Figure  15.  Cross section of Pusacun rockavalanche

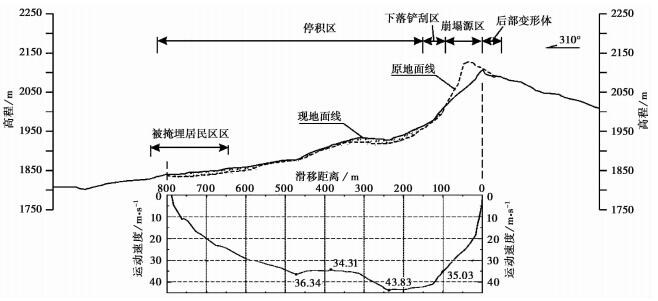

    图  16  8.28普洒村崩塌-碎屑流沿途运动速度分布图

    Figure  16.  Velocity profile of Pusacun rockavalanche

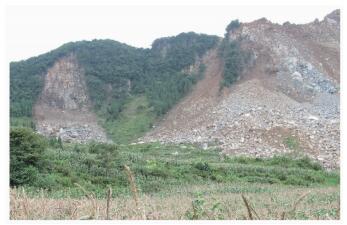

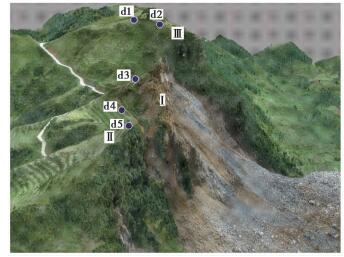

    图  17  崩塌源区周边的欠稳定岩体

    d1~d5为崩塌后设置的北斗云位移监测点

    Figure  17.  The unstable rock masses surrounding the source area

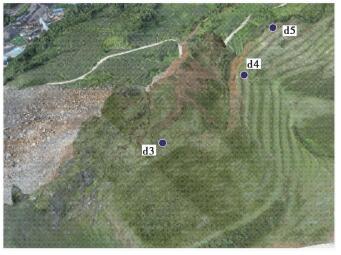

    图  18  滑源区后部变形体全景

    d3~d5为崩塌后设置的北斗云位移监测点

    Figure  18.  The unstable rock mass on the rear of the source area

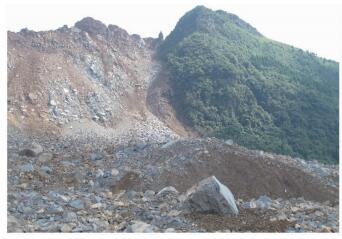

    图  19  崩塌源区北侧欠稳定岩体

    Figure  19.  The unstable rock mass on the north side of the source area

    图  20  崩塌源区南侧欠稳定岩体

    Figure  20.  The unstable rock mass on the south side of the source area

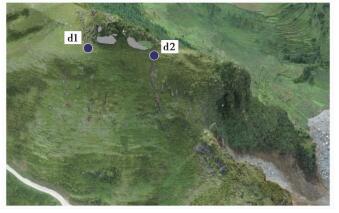

    图  21  南侧欠稳定区后部地面裂缝特征

    d1~d2为崩塌后设置的北斗云位移监测点

    Figure  21.  Cracks on the unstable rock mass of the south side of the source area

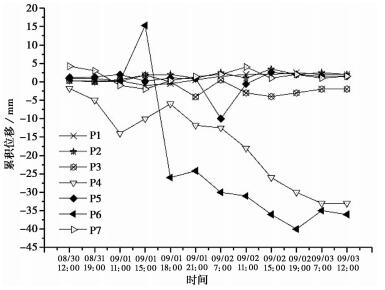

    图  22  崩塌壁GBSAR代表性监测点的变形时间曲线

    Figure  22.  The displacement monitoring curve of the unstable rock mass in main scarp by GBSAR

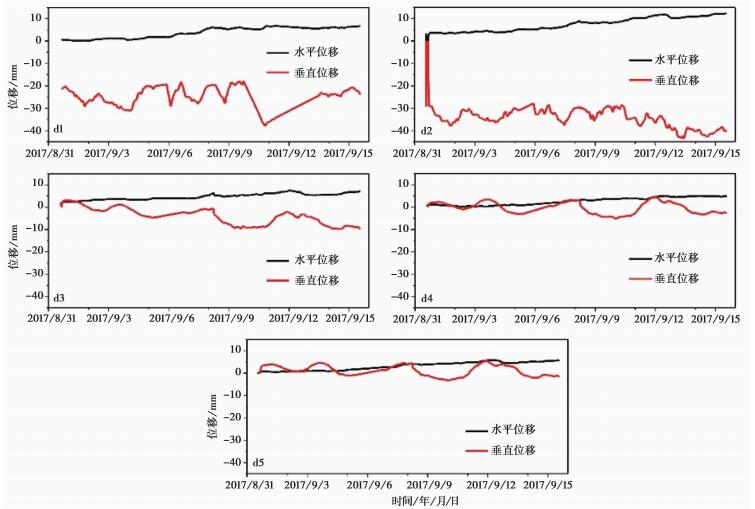

    图  23  崩塌影响区北斗云位移监测点变形-时间曲线

    Figure  23.  The displacement monitoring curve of the unstable area by Beidou Monitoring System

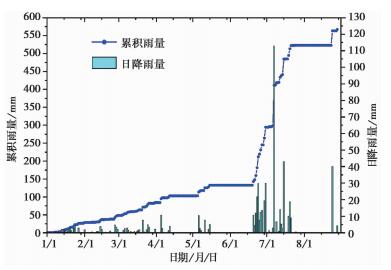

    图  24  滑前降雨过程曲线图

    Figure  24.  Cumulative curve of rainfall prior to rockavalanche occurrence in Zhangjiawan town near the Pusacun rockavalanche

  • Charrière, M Humair, F Froese, C, et al. 2016. from the source area to the deposit:collapse, fragmentation, and propagation of the Frank Slide[J]. Geological Society of America Bulletin, 128(1-2):332-351. https://www.researchgate.net/profile/Florian_Humair/publication/281236815_From_the_source_area_to_the_deposit_Collapse_fragmentation_and_propagation_of_the_Frank_Slide/links/55def1a008ae45e825d3bc4f.pdf?origin=publication_list
    Dong X J, Pei X J, Huang R Q. 2015. The Longchangzhen collapse in Kaili, Guizhou:characteristics and failure causes[J]. The Chinese Journal of Geological Hazard and Control, 26(3):3-9. https://www.researchgate.net/profile/Mark_Purnell
    Han Z H, Chen X, Wang X L. 2017. Risk Assessment for Luojiaqinggangling rockfall[J]. Journal of Engineering Geology, 25(2):520-530. https://www.researchgate.net/profile/Meho_Sasa_Kovacevic/publication/283825479_A_Framework_for_Risk_Management_in_Rockfall_Protection/links/5673e0ca08ae04d9b09be69b.pdf?inViewer=0&pdfJsDownload=0&origin=publication_detail
    Hsü K J. 1975. Catastrophic Debris Streams(Sturzstroms) Generated by Rockfalls[J]. GSA Bulletin, 86(1):129-140. doi: 10.1130/0016-7606(1975)86<129:CDSSGB>2.0.CO;2
    Li T F, Chen H T, Wang R Q. 2016. Formation mechanism of Yanchihe landslide in Yichang city, Hubei province[J]. Journal of Engineering Geology, 24(4):578-583. https://www.sciencedirect.com/science/article/pii/S0013795209001562
    Liu C Z. 2006. Basic problem on emergency disposition of abrupt heavy geological disaster[J]. Journal of Natural Disasters, 15(3):24-30. http://en.cnki.com.cn/Article_en/CJFDTOTAL-JYRJ201405003.htm
    Liu C Z. 2009. Landslide geohazard induced by undermining[C]//Theory and Its Application on Mega-geo-Hazards Mitigation. Beijing: Science Press.
    Liu C Z. 2014. Genetic Types of Landslide and Debris Flow Disasters in China[J]. Geological Review, 60(4):858-868. http://en.cnki.com.cn/Article_en/CJFDTotal-DZLP201404018.htm
    Monserrat O, Moya J, Luzi G, et al. 2013. Non-interferometric GB-SAR measurement:application to the Vallcebre landslide(eastern Pyrenees, Spain)[J]. Natural Hazards and Earth System Sciences, 13(7):1873-1887. doi: 10.5194/nhess-13-1873-2013
    Nichol D. 2001. Landslides and Landslide Management in South Wales[J]. Quarterly Journal of Engineering Geology and Hydrogeology, 34(4):415-416. http://www.worldcat.org/title/landslides-and-landslide-management-in-south-wales/oclc/44737544
    Ouyang G, Lan Z X. 2009. Construction Report Design of Collapse Geological Hazard Treatment Project of Pusa Coal Mine in Zhangjiawan Town, Nayong County[R]. Guiyang: Guizhou Dikuang Engineering Investigation Corporation.
    Ouyang G, Wang J. 2010. Mining landscape environmental protection and reservoir recovery scheme of Pusa coal mine in zhangjiawan town, Nayong county[R]. Guiyang: Guizhou Dikuang Engineering Investigation Corporation.
    Peng D L, Xu Q, Dong X J, et al. 2017. Accurate and Efficient Method for Loess Landslide Fine Mapping with High Resolution Close-Range Photogrammetry[J]. Journal of Engineering Geology, 25(2):424-435. doi: 10.1007/978-3-319-55342-9_1/fulltext.html
    Scheidegger A E. 1973. On the prediction of the reach and velocity of catastrophic landslides[J]. Rock Mechanics, 5 (4):231-236. doi: 10.1007/BF01301796
    Wang D Y, et al. 2016. an Emergency Investigation Report of the Collapse of Geological Disasters in the Laoyingyan of Pusa Village in Zhangjiawan Town, Nayong County[R]. 106 Geological Party, Zunyi: Guizhou Bureau of Geology and Minerals Exploration and Development.
    Wang S J, Huang D C. 2004. Centurial Achievements of Chinese Engineering Geology[M]. Beijing:Geologic Publishing House.
    Wang Y C, Ju N P, Zhao J J, et al. 2013. Formation mechanism of landslide above the mined out area in gently inclined coal beds[J]. Journal of Engineering Geology, 21(1):61-68. http://en.cnki.com.cn/Article_en/CJFDTOTAL-KXZB201309011.htm
    Xu Q, Li W L, Dong X J, et al. 2017. The Xinmocun landslide on June 24, 2017 in Maoxian, Sichuan:characteristics and failure mechanism[J]. Chinese Journal of Rock Mechanics and Engineering, 36(11):2612-2628. https://www.researchgate.net/publication/320318336_Failure_mechanism_and_kinematics_of_the_deadly_June_24th_2017_Xinmo_landslide_Maoxian_Sichuan_China
    Xu Q, Huang R Q, Yin Y P, et al. 2009. The Jiweishan landslide of June 5, 2009 in Wulong, Chongqing:Characteristics and failure mechanism[J]. Journal of Engineering Geology, 17(4):433-444. http://en.cnki.com.cn/Article_en/CJFDTOTAL-GCDZ200904002.htm
    董秀军, 裴向军, 黄润秋. 2015.贵州凯里龙场镇山体崩塌基本特征与成因分析[J].中国地质灾害与防治学报, 26(3):3-9. http://mall.cnki.net/magazine/Article/ZGDH201503029.htm
    韩振华, 陈鑫, 王学良, 等. 2017.四川罗家青杠岭崩塌风险的定量评价研究[J].工程地质学报, 25(2):520-530. http://www.gcdz.org/CN/abstract/abstract12379.shtml
    李腾飞, 陈洪涛, 王瑞青. 2016.湖北宜昌盐池河滑坡成因机理分析[J].工程地质学报, 24(4):578-583. http://www.gcdz.org/CN/abstract/abstract12007.shtml
    刘传正. 2006.重大突发地质灾害应急处置的基本问题[J].自然灾害学报, 15(3):24-30. http://www.cqvip.com/QK/90959A/201306/48188485.html
    刘传正. 2009. 采矿引发的山体开裂崩滑灾害[C]//重大地质灾害防治理论与实践. 北京: 科学出版社.
    刘传正. 2014.中国崩塌滑坡泥石流灾害成因类型[J].地质论评, 60(4):858-868. https://www.wenkuxiazai.com/doc/8512fb07770bf78a64295437.html
    欧阳刚, 兰中孝. 2009. 纳雍县张家湾镇普洒煤矿崩塌地质灾害治理工程施工图设计[R]. 贵阳: 贵州地矿工程勘察总公司.
    欧阳刚, 王江. 2010. 纳雍县张家湾镇普洒煤矿矿山地质环境保护与治理恢复方案[R]. 贵阳: 贵州地矿工程勘察总公司.
    彭大雷, 许强, 董秀军, 等. 2017.基于高精度低空摄影测量的黄土滑坡精细测绘术[J].工程地质学报, 25(2):424-435. http://www.gcdz.org/CN/abstract/abstract12368.shtml
    王得原, 等. 2016. 纳雍县张家湾镇普洒村老鹰岩组崩塌地质灾害应急调查报告[R]. 遵义: 贵州省地质矿产勘查开发局一〇六地质大队.
    王思敬, 黄鼎成. 2004.中国工程地质世纪成就[M].北京:地质出版社.
    王玉川, 巨能攀, 赵建军, 等. 2013.缓倾煤层采空区上覆山体滑坡形成机制分析[J].工程地质学报, 21(1):61-68. http://www.gcdz.org/CN/abstract/abstract11249.shtml
    许强, 李为乐, 董秀军, 等. 2017.四川茂县叠溪镇新磨村滑坡特征与成因机制初步研究[J].岩石力学与工程学报, 36(11):2612-2628. https://mall.cnki.net/qikan-GCDZ201005004.html
    许强, 黄润秋, 殷跃平, 等. 2009.2009年6.5重庆武隆鸡尾山崩滑灾害基本特征与成因机理初步研究[J].工程地质学报, 17(4):433-444. http://www.gcdz.org/CN/abstract/abstract8436.shtml
