RESEARCH ON THE DEFORMATION AND FORCE CHARACTERISTICS OF UNDERGROUND UTILITY TUNNEL CROSSING GROUND FISSURE
-
摘要: 以西安市昆明路地下综合管廊穿越f3地裂缝为研究对象，基于有限元数值模拟分析了地裂缝错动作用下分段地下综合管廊的变形与受力特征。结果表明：地裂缝错动作用下地下管廊顶板竖向沉降变形整体上呈现反“S”形特征，其变形量随地裂缝错动量的增大而增大；管廊结构纵向变形大致可划分3个变形段即下盘翘曲变形段、不均匀沉降段和上盘整体沉降段；在管廊设计使用寿期100 a内地裂缝错动量为50 cm时，管廊接头部位顶板的水平位移在地裂缝带处达到峰值，为4.1 cm，而底板水平位移为3.2 cm，管廊接头部位易发生张开、错位破坏现象，应予以加固；在地裂缝带附近，上盘管廊底板的接触压力减低至0，存在底板脱空现象，应预留注浆孔便于必要时进行注浆加固处理，而下盘管廊底板的接触压力则有明显增大的趋势；当地裂缝错动量超过20 cm时管廊结构顶、底板的拉应变超过了混凝土的极限拉应变，管廊变形破坏模式主要为拉张破坏。研究结果可以为西安市及其他地裂缝发育区地下综合管廊穿越地裂缝带的结构设计提供科学依据。Abstract: This paper takes the Kunming road underground utility tunnel crossing through f3 ground fissure in Xi'an city, China as research object. The deformation and force characteristics of underground segmented utility tunnel is analysed with finite element numerical simulationmethod. The results show that the vertical settlement deformation at the roof of underground utility tunnel exhibits reverse-S shape as a whole, and increases with the settlement of the hanging wall of ground fissure increasing. The longitudinal deformation of underground utility tunnel can be divided into three deformation sections:warping deformation section at the hanging wall of ground fissure, differential settlement section, and integral deformation section at the footwall of ground fissure. Under the action of ground fissure with a vertical dislocation 50 cm in the design life of 100 years, the horizontal displacement peak value of utility tunnel roof appears in the position of ground fissure zone. The maximum values are 4.1 cm on roof and 3.2 cm on the floor of utility tunnel. The joints between utility segmented tunnels is easy to pull apart and be damaged and should be reinforced. Nearby the ground fissure zone, the contact pressure between the utility tunnel floor and soil stratum decreases to 0 at the hanging wall with the increase of vertical dislocation of ground fissure and underground utility tunnel floor appears disengaging phenomenon. Grouting holes should be reserved convenient to grouting treatment, But the contact pressure between underground utility tunnel roof and soil stratum has an increase trend. The strain of the underground utility tunnel roof and floor exceeds the limit of the concrete strain when settlement of the hanging wall of ground fissure reaches 20 cm. Therefore, the deformation and failure mode of the underground utility tunnel is mainly tensile failure under the action of ground fissure. The research can provide a scientific basis for engineering design of underground utility tunnel crossing ground fissure zone in Xi'an city and other developed areas of ground fissure.
-
图 1 西安市地下综合管廊与地裂缝平面分布图
Figure 1. Plane distribution of underground utility tunnel and ground fissures in Xi'an city
图 4 管廊与地裂缝正交示意图
Figure 4. Schematic diagram of underground utility tunnel or thogonally crossing ground fissure zone
图 8 地裂缝不同位错量作用下地表竖向位移曲线图
Figure 8. Vertical displacement curve of ground surface under the action of ground fissure

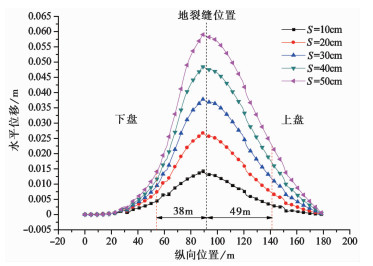

图 9 地裂缝不同位错量作用下地表水平位移曲线图
Figure 9. Horizontal displacement curve of ground surface under the action of ground fissure
图 10 管廊竖向沉降变形云图(sz=50 cm)
Figure 10. Vertical settlement deformation nephogram of underground utility tunnel(sz=50 cm)
图 11 管廊顶板竖向沉降变形曲线图
Figure 11. Vertical settlement deformation curve of underground utility tunnel roof
图 12 管廊水平变形云图(sz=50 cm)
Figure 12. Horizontal deformation nephogram of underground utility tunnel(sz=50 cm)
图 13 管廊顶板水平变形曲线图
Figure 13. Horizontal deformation curve of underground utility tunnel roof
图 14 管廊底板水平变形曲线图
Figure 14. Horizontal deformation curve of underground utility tunnel roof
图 15 管廊底板接触压力曲线图
Figure 15. Contact pressure curve of underground utility tunnel floor
表 1 数值模拟计算参数
Table 1. Parameters of numerical simulation calculation
地层 弹性模量/MPa 泊松比 容重/kN·m-3 黏聚力/kPa 内摩擦角/(°) ①素填土 12.85 0.3 18 18 19 ②黄土 32.43 0.28 18.6 37 30 ③黄土状土 32.71 0.28 18.8 29 25 ④粉质黏土 31.08 0.28 19.9 35 28 ⑤古土壤 33.54 0.28 19.7 35 28 ⑥粉质黏土 27.55 0.28 18.7 29.2 26 管廊 30000 0.2 25
下载: 导出CSV
表 2 接触面计算参数
Table 2. Computing parameters of interface
接触面名称 法向刚度/kPa 切向刚度/kPa 黏聚力/kPa 内摩擦角/(°) 管廊之间 1500000 150000 38 35 管土接触面 30000 3000 23 27 地裂缝 8000 800 10 18
下载: 导出CSV
-
Fan W, Deng L S, Peng J B, et al. 2008. Research on physical model experiment of metro tunnel crossing ground fissure belt[J]. Chinese Journal of Rock Mechanics and Engineering, 27(9):1917-1923. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=yslxygcxb200809021 Hu X, Xue W C. 2010. Experimental study of mechanical properties of PPMT[J]. China Civil Engineering Journal, 43(5):29-37. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK201001196206 Huang Q B, Peng J B, Fan H W, et al. 2009. Metro tunnel hazards induced by active ground fissures in Xi'an and relevant control measures[J]. Chinese Journal of Geotechnical Engineering, 31(5):781-788. http://en.cnki.com.cn/Article_en/CJFDTOTAL-YTGC200905029.htm Huang Q B, Yang T, Wang Z, et al. 2016. Calculation of vertical strata load of metro tunnel crossing ground fissure zone[J]. Chinese Journal of Geotechnical and Engineering, 35(8):1705-1711. http://www.en.cnki.com.cn/Article_en/CJFDTotal-YSLX201608019.htm Jiang L Z, Chen J, Li J. 2010. Shaking table test of utility tunnel under non-uniform seismic excitations(Ⅲ):Numerical simulation[J]. Journal of Earthquake Engineering and Engineering Vibration, 30(3):45-52. http://en.cnki.com.cn/Article_en/CJFDTOTAL-DGGC201003005.htm Jiang L Z, Li J, Chen J. 2015. Numerical simulation of utility tunnel joint effects under non-uniform earthquake excitation[J]. World Earthquake Engineering, 31(2):101-107. Liu Y, Liu N N. 2017. Research on longitudinal stress mechanism of metro tunnel under ground fissure environment[J]. Journal of Xi'an Niversity(Natural Science Edition), 20(7):105-108. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=xajyxyxb201705023 Meng Z J, Peng J B, Huang Q B, et al. 2017. Study on deformation response of metro tunnel based on fracture dislocation[J]. Journal of Engineering Geology, 25(6):1624-1632. http://d.old.wanfangdata.com.cn/Periodical/gcdzxb201706028 National Center for Earthquake Engineering Research(NCEER). 1999. Proceedings of the Seventh U.S.-Japan Workshop on Earthquake Resistant Design of Lifeline Facilities and Countermeasures Against Soil Liquefaction[C]. America: MCEER Technical Reports. Peng J B, Lu Q Z, Huang Q B, et al. 2017. Hazard of ground fissure in Fen-Wei basin[M]. Beijing:Science Press. Peng J B, Zhang Q, Huang Q B, et al. 2012. Hazard of ground fissure in Xi'an[M]. Beijing:Science Press:502-510. Shamsabadi A, Law H. 2001. Seismic retrofit of bored and cut and covered tunnel[C]//5th Iranian Tunneling Conference: Iran: [s.n.]: 1-6. Shamsabadi A, Law H, Amini M. 2002. Seismic rock-tunnel-structure interaction analysis[C]//12th European Conference on Earthquake Engineering. Netherland: Elsevier Science Ltd: 1-8. Shamsabadi A, Sedarat H, Kozak A. 2001. Seismic soil-tunnel-structure interaction analysis and retrofit of the posey-webster street tunnels[C]//2nd US-JAPAN Soil-Structure-Interaction Workshop: Tsukuba, Japan: [s.n.]: 1-21. Shi X J, Chen J, Li J. 2008. Shaking table test on underground utility tunnel[J]. Journal of Earthquake Engineering and Engineering Vibration, 28(6):116-123. http://en.cnki.com.cn/Article_en/CJFDTotal-DGGC200806017.htm Takada Shiro. 1991. Seismic design of underground lifeline[J]. Tunnel translations, (7):44-51. http://cedb.asce.org/CEDBsearch/cgi/wwwdisplay.cgi?9706 The National Standards Compilation Group of People's Republic of China. 2010. Code for design of concrete structures(GB 50010-2010)[S].Beijing: China Architecture and Building Press. The National Standards Compilation Group of People's Republic of China. 2015. Technical code for urban utility tunnel engineering(GB50838-2015)[S].Beijing: China Planning Press. Wu M, Peng J B, He K, et al. 2015. Numerical analysis of dislocation of ground fissure on the metro tunnel paralleling to the ground fissure's strike[J]. Journal of Engineering Geology, 23(5):1020-1029. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gcdzxb201505029 Yue Q X, Li J. 2008. Response analysis of utility tunnel in earthquake of approximate rayleigh waves[J]. Journal of Disaster Prevention and Mitigation Engineering, 28(4):409-415. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dzxk200804002 范文, 邓龙胜, 彭建兵, 等. 2008.地铁隧道穿越地裂缝带的物理模型试验研究[J].岩石力学与工程学报, 27(9):1917-1923. doi: 10.3321/j.issn:1000-6915.2008.09.021 胡翔, 薛伟辰. 2010.预制预应力综合管廊受力性能试验研究[J].土木工程学报, 43(5):29-37. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK201001196206 黄强兵, 彭建兵, 樊红卫, 等. 2009.西安地裂缝对地铁隧道的危害及防治措施研究[J].岩土工程学报, 31(5):781-788. doi: 10.3321/j.issn:1000-4548.2009.05.023 黄强兵, 杨涛, 王震, 等. 2016.跨地裂缝地铁隧道竖向地层压力计算方法探讨[J].岩石力学与工程学报, 35(8):1705-1711. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QKC20162016082400203534 蒋录珍, 陈隽, 李杰. 2010.非一致地震激励地下综合管廊振动台模型试验研究(Ⅲ)-数值模拟[J].地震工程与工程振动, 30(3):45-52. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dzgcygczd201003006 蒋录珍, 李杰, 陈隽. 2015.非一致地震激励下综合管廊接头响应数值模拟[J].世界地震工程, 31(2):101-107. http://www.cnki.com.cn/Article/CJFDTOTAL-SJDC201502014.htm 刘洋, 刘妮娜. 2017.地裂缝环境下地铁隧道纵向受力机理研究[J].西安文理学院学报(自然科学版), 20(7):105-108. http://d.old.wanfangdata.com.cn/Periodical/xajyxyxb201705023 孟振江, 彭建兵, 黄强兵, 等. 2017.基于断裂错动引起地铁隧道的变形响应研究[J].工程地质学报, 25(6):1624-1632. http://d.old.wanfangdata.com.cn/Periodical/gcdzxb201706028 彭建兵, 卢全中, 黄强兵, 等. 2017.汾渭盆地地裂缝灾害[M].北京:科学出版社. 彭建兵, 张勤, 黄强兵, 等. 2012.西安地裂缝灾害[M].北京:科学出版社:502-510. 史晓军, 陈隽, 李杰. 2008.地下综合管廊大型振动台模型试验研究[J].地震工程与工程振动, 28(6):116-123. http://d.old.wanfangdata.com.cn/Periodical/dzgcygczd200806017 吴明, 彭建兵, 贺凯, 等.2015地铁隧道受平行向地裂缝错动影响数值分析[J].工程地质学报, 23(5):1020-1029. http://d.old.wanfangdata.com.cn/Periodical/gcdzxb201505029 岳庆霞, 李杰. 2008.近似Rayleigh地震波作用下地下综合管廊响应分析[J].防灾减灾工程学报, 28(4):409-415. http://d.old.wanfangdata.com.cn/Periodical/dzxk200804002 中华人民共和国国家标准编写组. 2010.混凝土结构设计规范(GB 50010-2010)[S].北京: 中国建筑工业出版社. 中华人民共和国国家标准编写组. 2015.城市综合管廊技术规范(GB 50838-2015)[S].北京: 中国计划出版社. -
