岩桥直剪细观破坏特征与剪胀效应研究

孙祥 陈国庆 张广泽 王栋 秦昌安

孙祥, 陈国庆, 张广泽, 等. 2020. 岩桥直剪细观破坏特征与剪胀效应研究[J]. 工程地质学报, 28(2): 246-254. doi: 10.13544/j.cnki.jeg.2019-039
引用本文: 孙祥, 陈国庆, 张广泽, 等. 2020. 岩桥直剪细观破坏特征与剪胀效应研究[J]. 工程地质学报, 28(2): 246-254. doi: 10.13544/j.cnki.jeg.2019-039
Sun Xiang, Chen Guoqing, Zhang Guangze, et al. 2020. Microstructure fracture characteristics and dilatancy effect of rock bridge under direct shear tests[J]. Journal of Engineering Geology, 28(2): 246-254. doi: 10.13544/j.cnki.jeg.2019-039
Citation: Sun Xiang, Chen Guoqing, Zhang Guangze, et al. 2020. Microstructure fracture characteristics and dilatancy effect of rock bridge under direct shear tests[J]. Journal of Engineering Geology, 28(2): 246-254. doi: 10.13544/j.cnki.jeg.2019-039

岩桥直剪细观破坏特征与剪胀效应研究

doi: 10.13544/j.cnki.jeg.2019-039
基金项目:

国家自然科学基金项目 41572283

国家自然科学基金项目 41972284

国家重点研发计划 2017YFC1501301

中铁二院工程集团有限责任公司科研项目 KYY2018010(18-19)

详细信息
    作者简介:

    孙祥(1996-),男,硕士生,主要从事岩石力学及岩桥性质方面的研究. E-mail:743486856@qq.com

    通讯作者:

    陈国庆(1982-),男,博士,教授,主要从事地质灾害防治和岩石力学方面的教学与研究工作. E-mail: chgq1982@126.com

  • 中图分类号: TD313

MICROSTRUCTURE FRACTURE CHARACTERISTICS AND DILATANCY EFFECT OF ROCK BRIDGE UNDER DIRECT SHEAR TESTS

Funds:

the National Natural Science Foundation of China 41572283

the National Natural Science Foundation of China 41972284

the National Key Research and Development Program of China 2017YFC1501301

China Railway Eryuan Engineering Group Co., Ltd. Funding KYY2018010(18-19)

  • 摘要: 节理岩体的剪切贯通机制影响着边坡的稳定性。为揭示锁固段型非贯通节理岩体在不同连通率和法向应力下的破坏特征,在室内直剪试验中结合高速摄影与AE特征参数分析其剪切全过程及剪胀效应。结果表明:节理岩体直剪试验中,法向应力的增大及节理连通率的下降会致使峰值剪切应力及峰值剪切位移增大;节理连通率与法向应力对其破坏特征具显著影响,表现为节理连通率较高且法向应力较小时呈直接剪断的特性,节理连通率降低后呈拉剪复合破坏,出现剪胀现象,而法向应力的增大使得剪胀效应呈波动现象;AE特征与岩桥贯通过程一致,事件数峰值随节理连通率的降低及法向应力的增大而增大且位于峰后。试验得到的岩桥细观破坏特征与剪胀效应对研究锁固段型岩质边坡的贯通破坏机制具指导意义。

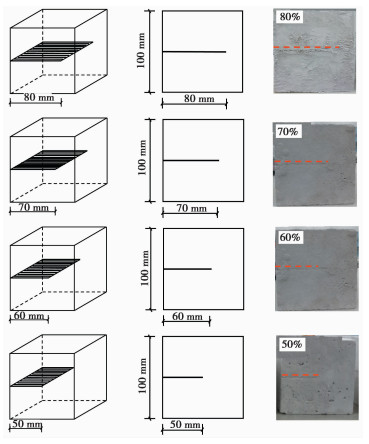

  • 图  1  节理岩体试样

    Figure  1.  Joint rock sample

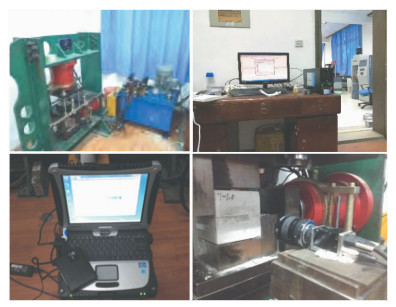

    图  2  加载系统、AE以及高速摄像机布置

    Figure  2.  Loading system, digital AE system and high speed camera layout

    图  3  AE探头布置

    Figure  3.  Digital AE system sensor layout

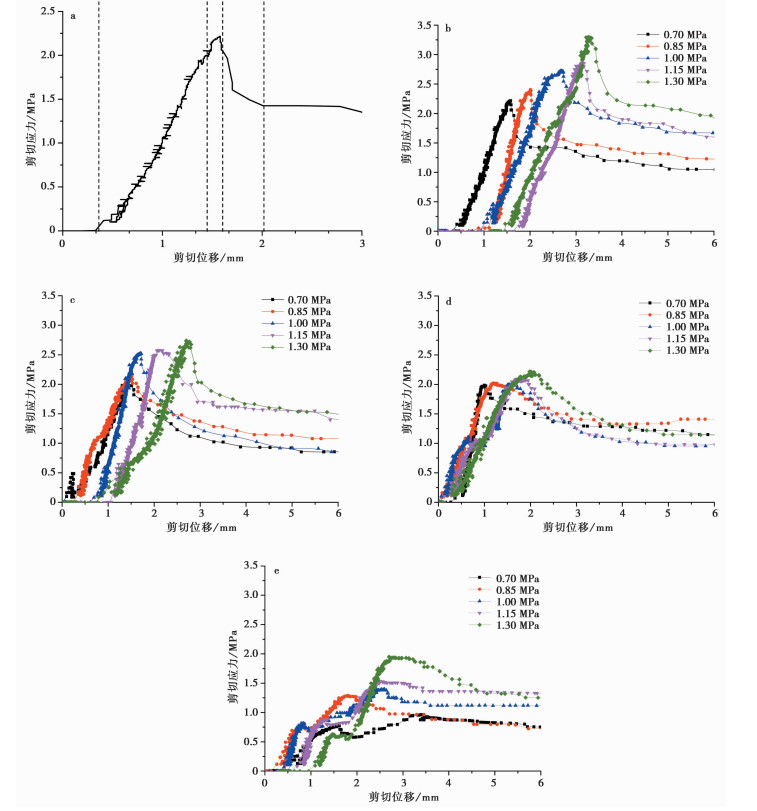

    图  4  直剪全过程剪切应力-剪切位移曲线

    a.法向应力0.70 MPa,节理连通率50%;b.节理连通率50%;c.节理连通率60%;d.节理连通率70%;e.节理连通率80%

    Figure  4.  Curve of shear stress-shear displacement in the whole process of direct shear

    图  5  微观凸起体作用

    Figure  5.  Microconvex effect

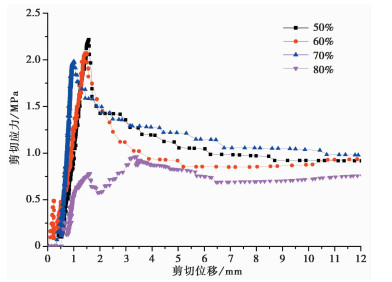

    图  6  法向应力0.85 MPa剪切应力-剪位移曲线

    Figure  6.  Shear stress-shear displacement curve under normal stress 0.85 MPa

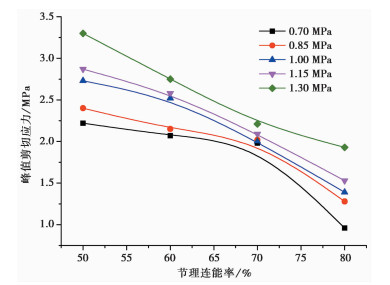

    图  7  节理连通率-峰值剪应力曲线

    Figure  7.  Joint connectivity-shear stress curve

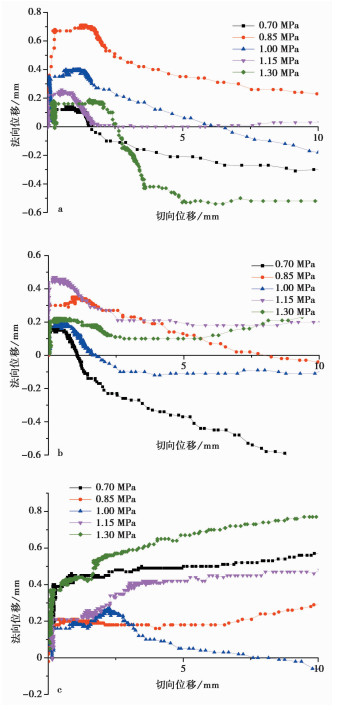

    图  8  切向位移-法向位移曲线

    a.节理连通率60%;b.节理连通率70%;c.节理连通率80%

    Figure  8.  Tangential displacement-normal displacement curve

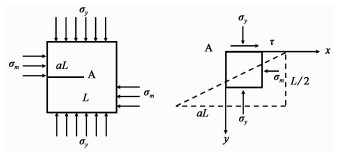

    图  9  节理岩体直剪试验加载及端部受力示意图

    Figure  9.  Diagram of loading and end force in direct shear test of jointed rock mass

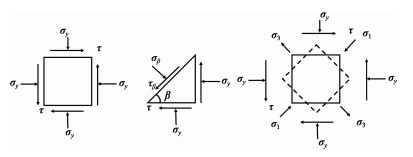

    图  10  微元A应力状态

    Figure  10.  Stress state of element A

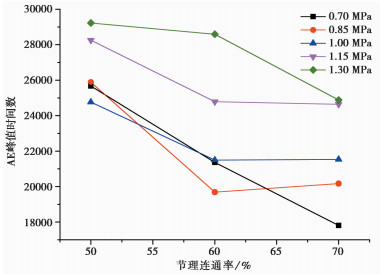

    图  11  节理连通率—AE峰值事件数

    Figure  11.  Joint connectivity rate vs AE peak event number

    表  1  剪胀阶段割线斜率

    Table  1.   Secant slope in dilatancy stage

    节理连通率
    /%
    法向应力/MPa
    0.7 0.85 1 1.15 1.3
    60 0.333 0.341 0.312 0.266 0.355
    70 0.331 0.110 0.154 0.109 0.073
    80 0 0 0.133 0 0
    下载: 导出CSV

    表  2  不同节理连通率下的3种剪切破坏模式

    Table  2.   Three shear failure modes with different joint connectivity

    破坏方式 破坏过程及特征 示意图 破坏照片
    直接剪断 试样破坏的初裂纹很小,且与剪切面小角度相交,甚至无初裂纹。岩桥直接剪断破坏,剪胀效应不明显,岩桥破坏面较平直,粗糙度较小
    压致拉裂
    后剪断
    在未施加剪切位移之前,试样就出现有压制拉裂,裂纹由岩桥端部发育,之后岩桥剪断
    剪胀剪断 破坏面近于弧形,在剪切过程中拉裂纹的连通会导致掉快现象,剪胀效应也变得更为明显
    下载: 导出CSV

    表  3  特征曲线

    Table  3.   Acoustic emission characteristic curve

  • Bai S W, Ren W Z, Feng D X, et al. 1999. Research on the strength behaviour of rock containing coplanar close intermittent joints by direct test[J]. Rock and Soil Mechanics, 20(2): 10-16.
    Chen H R, Qin S Q, Xue L, et al. 2019. Modes of mechanical action between locked segments[J]. Journal of Engineering Geology, 27(1): 1-13. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gcdzxb201901001
    Du J C, Chen Z Y. 2002. A Simplified discontinuity propagation model and its application in mechanics of rock mass[J]. Chinese Journal of Geotechnical Engineering, 24(4): 421-426. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ytgcxb200204003
    Huang D, Huang R Q, Lei P. 2014. Shear deformation and strength of through-going saw-tooth rock discontinuity[J]. Journal of China Coalsociety, 39(7): 1229-1237. http://d.old.wanfangdata.com.cn/Periodical/mtxb201407006
    Lajtai E Z. 1969a. Shear strength of weakness planes in rock[J]. International Journal of Rock Mechanics and Mining Sciences & Geomechanics Abstracts, 6(5): 499-515.
    Lajtai E Z. 1969b. Strength of discontinuous rocks in direct shear[J]. Géotechnique, 19(2): 218-233. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=df74765c0e96986935a86d72300950a2
    Li X F, Li H B, Xia X, et al. 2016. Numerical simulation of mechanical characteristics of jointed rock in direct shear test[J]. Rock and Soil Mechanics, 37(2): 583-591. http://d.old.wanfangdata.com.cn/Periodical/ytlx201602032
    Liu S Q, Ma F S, Zhao H J, et al. 2018. RJM based numerical study of strength and failure modes of rockmass with discontinuous joints[J]. Journal of Engineering Geology, 26(5): 1342-1350. http://d.old.wanfangdata.com.cn/Periodical/gcdzxb201805030
    Liu Y M, Xia C C. 2010a. Research on rock mass containing discontinuous joints by direct shear test based on weakening mechanism of rock bridge mechanical properties[J]. Chinese Journal of Rock Mechanics and Engineering, 29(7): 1467-1472. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=yslxygcxb201007022
    Liu Y M, Xia C C. 2010b. Weakening mechanism of mechanical behaviors and failure models of rock mass containing discontinuous joints under direct shear condition[J]. Rock and Soil Mechanics, 31(3): 695-701. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ytlx201003005
    Liu Y M. 2007. Study on failure models and strength of rockmass containing discontinuous joints in direct shear[D]. Shanghai: Tongji University.
    Savilabti T, Nordlund E, Stephansson O. 1990. Shearbox testing and modeling of joint bridge[C]//Proc Int Symp Rock Joints. Norway: [s.n.]: 295-300.
    Wong R, Leung W, Wang S. 2001. Shear strength studies on rock-like models containing arrayed open joints[J]. Rock Mechanics in the National Interest, 1(2): 843-849. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=CC027298253
    Xu W Z, Lin H, Cao R H. 2018. Simulation and macro-mesoscopic parameter analysis for direct shear of filled rough joints[J]. Journal of Southwest Jiaotong University, 53(3): 548-557. http://d.old.wanfangdata.com.cn/Periodical/xnjtdxxb201803016
    Xu Y F. 2018. PFC2D simulation of rockfill shear strength based on particle fragmentation[J]. Journal of Engineering Geology, 26(6): 1409-1414. http://d.old.wanfangdata.com.cn/Periodical/gcdzxb201806001
    Zhong B B, Zhang Y B, Li H. 2014. Study of mechanisms of crack propagation of rock based on RFPA2D[J]. Journal of Wuhan University of Technology, 36(2): 82-88. http://d.old.wanfangdata.com.cn/Periodical/whgydxxb201402016
    Zhu W S, Li S C, Chen W Z. 2002. Failure mechanism, anchorage effect and engineering application of jointed rock mass[M]. Beijing: Science Press.
    Zhu W S, Liang Z Y, Feng G B, et al. 1994. Physical simulation and strength prediction analysis of jointed rock mass[C]//Ge Xiulin. Application of computer methods in rock mechanics and engineering. Wuhan: Wuhan Surveying and Mapping Science and Technology Human Science Press.
    Zhu W S, Chen W Z, Shen J. 1998. Simulation experiment and fracture mechanism study on propagation of echelon pattern cracks[J]. Acta Mechanica Solida Sinica, 19(4): 355-360. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK199800141602
    白世伟, 任伟中, 丰定祥, 等. 1999.共同闭合断续节理岩体强度特性直剪试验研究[J].岩土力学, 20(2): 10-16. http://www.cqvip.com/qk/94551X/199902/3579137.html
    陈竑然, 秦四清, 薛雷, 等. 2019.锁固段之间的力学作用模式[J].工程地质学报, 27(1): 1-13. doi: 10.13544/j.cnki.jeg.2019-011
    杜景灿, 陈祖煜. 2002.岩桥破坏的简化模型及在节理岩体中模拟网络中的应用[J].岩土工程学报, 24(4): 421-426. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ytgcxb200204003
    黄达, 黄润秋, 雷鹏. 2014.贯通型锯齿状岩体结构面剪切变形及强度特征[J].煤炭学报, 39(7): 1229-1237. http://d.old.wanfangdata.com.cn/Periodical/mtxb201407006
    李晓锋, 李海波, 夏祥, 等. 2016.类节理岩石直剪试验力学特性的数值模拟研究[J].岩土力学, 37(2): 583-591. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ytlx201602032
    刘帅奇, 马凤山, 赵海军, 等. 2018.基于RJM断续节理岩体强度与破坏特征的数值模拟研究[J].工程地质学报, 26(5): 1342-1350. doi: 10.13544/j.cnki.jeg.2018250
    刘远明, 夏才初. 2010a.基于岩桥力学性质弱化机制的非贯通节理岩体直剪试验研究[J].岩石力学与工程学报, 29(7): 1467-1472. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=yslxygcxb201007022
    刘远明, 夏才初. 2010b.直剪条件下非贯通节理岩体岩桥力学性质弱化机制及贯通模型初步研究[J].岩土力学, 31(3): 695-701. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ytlx201003005
    刘远明. 2007.基于直剪试验的非贯通节理岩体扩展贯通研究[D].上海: 同济大学. http://www.wanfangdata.com.cn/details/detail.do?_type=degree&id=Y1228226
    徐永福. 2018.基于颗粒破碎的粗粒土剪切强度的模拟分析[J].工程地质学报, 26(6): 1409-1414. doi: 10.13544/j.cnki.jeg.2017-432
    许万忠, 林杭, 曹日红. 2018.充填粗糙节理直剪数值模拟宏细观分析[J].西南交通大学学报, 53(3): 548-557. http://d.old.wanfangdata.com.cn/Periodical/xnjtdxxb201803016
    钟波波, 张永彬, 李宏. 2014.基于RFPA2D的岩石裂纹扩展模式的研究[J].武汉理工大学学报, 36(2): 82-88. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=whgydxxb201402016
    朱维申, 陈卫忠, 申晋. 1998.雁形裂纹扩展的模型试验及断裂力学机制研究[J].固体力学学报, 19(4): 355-360. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK199800141602
    朱维申, 李术才, 陈卫忠. 2002.节理岩体破坏机理和锚固效应及工程应用[M].北京:科学出版社.
    朱维申, 梁作元, 冯光北, 等. 1994.节理岩体强度特性的物理模拟及其强度预测分析[C]//葛修润: 计算机方法在岩石力学及工程中的应用国际学术讨论文集.武汉: 武汉测绘科技人学出版社.
