有机质含量对磷酸镁水泥固化土性质的影响研究

俞良晨; 闫超; 郭书兰; 阎长虹; 李想林

doi:10.13544/j.cnki.jeg.2019-416

有机质含量对磷酸镁水泥固化土性质的影响研究

doi: 10.13544/j.cnki.jeg.2019-416

俞良晨^{①, ②,},
闫超^②,
郭书兰^①,
阎长虹^{①, ③, ,},
李想林^②

①.
南京大学地球科学与工程学院，南京 210023，中国
②.
安徽大学资源与环境工程学院，合肥 230601，中国
③.
南京大学金陵学院，南京 210089，中国

基金项目:

江苏省科技厅社会发展面上项目 BE2019705

江苏省地质矿产勘查局科技项目 2017-KY-1

详细信息

作者简介:
俞良晨(1995-)，男，硕士生，主要从事城市环境岩土工程、边坡工程方向的研究. E-mail: ylc1203@126.com

通讯作者:
阎长虹(1959-)，男，博士，教授，博士生导师，从事水文地质工程地质、城市环境岩土工程科研教学工作. E-mail: yanchh@nju.edu.cn

中图分类号: P642.13⁺9
计量
- 文章访问数: 1671
- HTML全文浏览量: 233
- PDF下载量: 76
- 被引次数: 0
出版历程
- 收稿日期: 2019-10-08
- 修回日期: 2019-11-27
- 刊出日期: 2020-04-25

STUDY ON THE EFFECT OF ORGANIC CONTENT ON PROPERTIES OF MAGNESIUM PHOSPHATE CEMENT SOLIDIFIED SOIL

YU Liangchen^{①, ②
,},
YAN Chao^②,
GUO Shulan^①,
YAN Changhong^{①, ③
, ,},
LI Xianglin^②

①.
School of Earth Sciences and Engineering, Nanjing University, Nanjing 210023, China
②.
School of Resources and Environmental Engineering, Anhui University, Hefei 230601, China
③.
Nanjing University Jinling College, Nanjing 210089, China

Funds:

the Social Development Project of Jiangsu Science and Technology Department BE2019705

the Science and Technology Project of Jiangsu Geology & Mineral Exploration Bureau 2017-KY-1

摘要

摘要: 许多重要的软土工程譬如基坑、路基工程在破坏后需要快速修复，磷酸镁水泥的出现很好地满足了这一现代建设的要求，但不同地区软土的有机质含量不同，而有机质的含量对固化土的性质有着重要影响。为了研究磷酸镁水泥加固不同有机质含量软土的加固规律，本文通过向烘干后的软土中添加腐殖酸，人为制备不同有机质含量的土样，并取相同条件下PO水泥加固软土作对比，通过相关力学试验得到以下规律：两种水泥在加固不同含量有机质软土的过程中，加固效果都会随着有机质含量的升高而逐渐降低；磷酸镁水泥在快速修复和凝结方面明显优于PO水泥，但磷酸镁水泥中长期加固有机质软土的效果却不及PO水泥。同时利用SEM试验对得到的规律进行了解释并分析其微结构演化特征。该研究成果独到地分析了有机质含量变化对磷酸镁水泥加固效果的影响，证明了磷酸镁水泥可以应用于软土的抢修工程建设中，对加固软土工程具有指导和借鉴意义。
- 磷酸镁水泥 /
- PO水泥 /
- 软土 /
- 力学强度 /
- 微观结构
Abstract: Many important soft soil projects need to be repaired quickly after failure, such as foundation pits and subgrade engineering. The appearance of magnesium phosphate cement satisfies the requirements of modern construction. However, the difference of the organic content of soft soil in different regions has an important influence on the properties of the solidified soil. We prepare soil samples with different organic contents by adding humic acid to the soft soil and study the reinforcement of soft soil with different organic contents by magnesium phosphate cement, contrast with the reinforced soft soil of PO cement under the same conditions. Finally, the following laws are obtained through the relevant mechanical tests: in the process of strengthening different organic contents of soft soil, the reinforcement effect can gradually decrease with the increase of organic content. Magnesium phosphate cement is obviously superior in rapid repair and condensation than PO cement. But long-term reinforcement effect of the magnesium phosphate cement in soft soil is not as good as that of PO cement. At the same time, SEM test is used to explain the obtained rules and analyze the microstructure evolution characteristics. Magnesium phosphate cement can be applied to the construction of soft soil repair projects. The research results uniquely analyze the influence of organic content change on the strengthening effect of magnesium phosphate cement, which has guiding and reference significance for reinforcing soft soil projects.
- Magnesium phosphate cement /
- PO cement /
- Soft soil /
- Mechanical strength /
- Microstructure

HTML全文

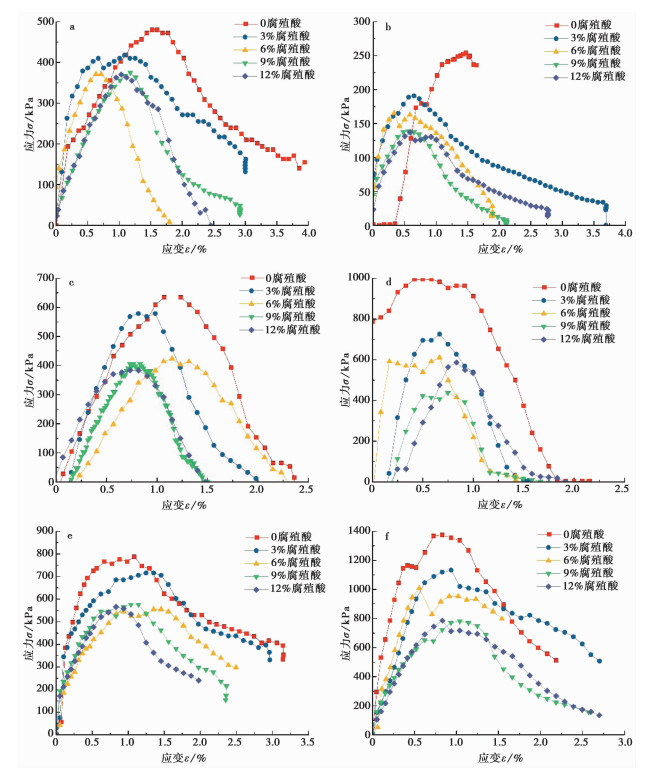

图 1 固化土应力-应变曲线

a.磷酸镁水泥固化土应力-应变曲线(7 d)；b. PO水泥固化土应力-应变曲线(7 d)；c.磷酸镁水泥固化土应力-应变曲线(14 d)；d. PO水泥固化土应力-应变曲线(14 d)；e.磷酸镁水泥固化土应力-应变曲线(28 d)；f. PO水泥固化土应力-应变曲线(28 d)

Figure 1. Stress-strain curve of solidified soil

下载: 全尺寸图片幻灯片

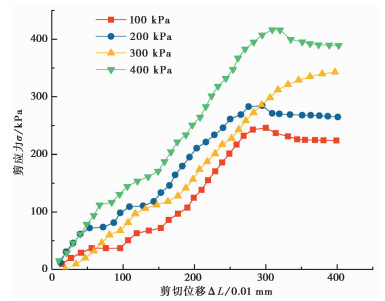

图 2 剪切位移与剪应力

Figure 2. Shear displacement and shear stress

下载: 全尺寸图片幻灯片

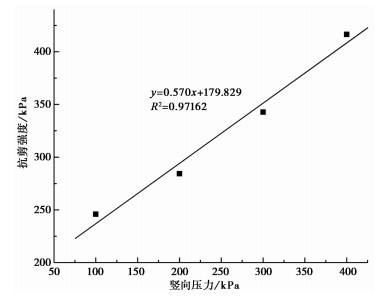

图 3 竖向压力对应的抗剪强度

Figure 3. The shear strength corresponding to vertical pressure

下载: 全尺寸图片幻灯片

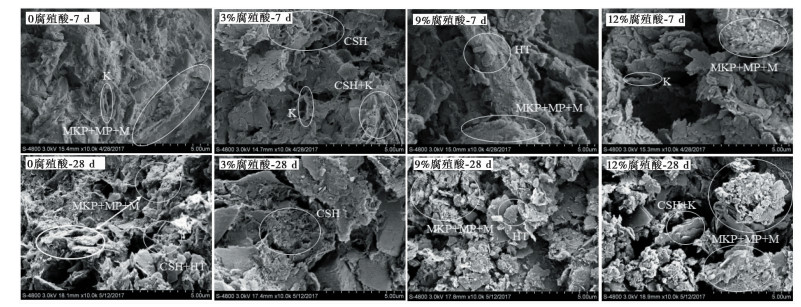

图 4 磷酸镁水泥固化土SEM图片

Figure 4. SEM of magnesium phosphate cement solidified soil

下载: 全尺寸图片幻灯片

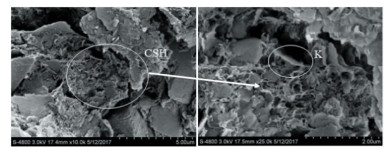

图 5 固化土水化SEM图片

Figure 5. SEM of hydration of solidified soil

下载: 全尺寸图片幻灯片

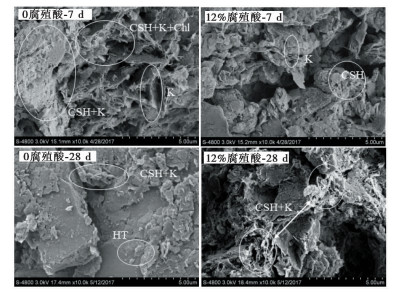

图 6 磷酸镁水泥固化土SEM图片

Figure 6. SEM of magnesium phosphate cement solidified soil

下载: 全尺寸图片幻灯片

图 7 PO水泥固化土10 000倍SEM图片

Figure 7. 10 000 times SEM image of PO cement solidified soil

下载: 全尺寸图片幻灯片

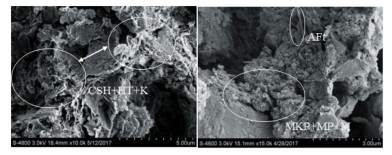

图 8 两种水泥加固效果10 000倍SEM图片

Figure 8. Two kinds of cement reinforcement effect on 10 000 times SEM image

下载: 全尺寸图片幻灯片

表 1 软土的物理力学性质指标

Table 1. Physico-mechanical indices of soft soil samples

天然密度 /g·cm^-3	土粒相对密度	含水率 /%	液限 /%	塑限 /%	塑性指数	液性指数	孔隙率	压缩模量 /MPa	压缩系数 /MPa^-1	黏粒 /%	有机质 /%
1.81	2.70	39.7	45	22	23	0.68	0.63	1.702	0.826	41.3	0.3

下载: 导出CSV

表 2 磷酸镁水泥组成

Table 2. Composition of magnesium phosphate cement

组分	氧化镁(M)	磷酸二氢钾(P)	硼砂(B)
比例	20	5	1

下载: 导出CSV

表 3 PO水泥和磷酸镁水泥固化土无侧限抗压强度试验结果

Table 3. Test results of unconfined compressive strength of PO cement and magnesium phosphate cement solidified soil

编号	腐殖酸含量 /%	无侧限抗压强度/kPa
		7 d		14 d		28 d
		磷酸镁水泥	PO水泥	磷酸镁水泥	PO水泥	磷酸镁水泥	PO水泥
1	0	497.48	253.96	635.31	995.28	787.73	1373.27
2	3	417.89	190.78	578.68	725.25	715.41	1131.86
3	6	371.28	162.85	423.85	611.23	555.22	1008.41
4	9	374.94	138.91	405.86	421.93	575.59	781.71
5	12	370.52	130.33	383.26	586.35	565.96	717.76

下载: 导出CSV

表 4 PO固化土和磷酸镁固化土黏聚力试验结果

Table 4. Test results of cohesion of PO-stabilized soils and magnesium phosphate-stabilized soils

编号	腐殖酸含量 /%	黏聚力c/kPa
		7 d		14 d		28 d
		磷酸镁水泥	PO水泥	磷酸镁水泥	PO水泥	磷酸镁水泥	PO水泥
1	0	179.83	142.26	202.54	242.26	250.00	525.65
2	3	173.54	118.12	193.35	218.12	235.50	452.69
3	6	169.07	106.35	179.80	196.35	230.12	360.02
4	9	165.48	104.71	174.73	194.71	226.34	359.03
5	12	164.45	100.36	170.14	180.36	216.97	345.10

下载: 导出CSV

表 5 PO固化土和磷酸镁固化土内摩擦角试验结果

Table 5. Test results of internal friction angle of PO-stabilized soil and magnesium phosphate-stabilized soil

编号	腐殖酸含量 /%	内摩擦角φ/(°)
		7 d		14 d		28 d
		磷酸镁水泥	PO水泥	磷酸镁水泥	PO水泥	磷酸镁水泥	PO水泥
1	0	29.69	27.18	31.53	35.94	32.06	40.10
2	3	27.27	24.16	29.00	33.50	30.75	35.11
3	6	23.12	20.67	25.96	30.50	27.06	33.98
4	9	21.96	19.45	23.37	28.00	24.00	32.23
5	12	17.20	15.41	19.00	24.50	20.31	24.98

下载: 导出CSV

表 6 物相统计及标记

Table 6. Phase statistics and markers

名称	化学式	标记
绿泥石	(Mg，Fe²⁺，Fe³⁺，Al)₆((Si，Al)₄O₁₀)(OH)₈	Chl
高岭石	Al₂Si₂O₅(OH)₄	K
水化磷酸镁	Mg₃(PO₄)₂	MP
钾磷酸盐	MgKPO₄·6H₂O	MKP
水滑石	Mg₆Al₂(CO₃)(OH)₁₆·4H₂O	HT
钙矾石	3CaO·Al₂O₃·3CaSO₄·32H₂O	AFt
水化硅酸钙	CaO·Al₂O₃·10H₂O	CSH
方镁石	MgO	M

下载: 导出CSV

参考文献(40)

Bai J. 2015. Optimization plan of reinforcement on deep dredger fill of Soft ground[J]. Journal of Engineering Geology, 23(2): 265-271. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gcdzxb201502013

Chen H E, Wang Q. 2005. Influences of organic matter on the effect of consolidating soft soil with cement[J]. Chinese Journal of Rock Mechanics and Engineering, 24 (S2): 5816-5821. http://en.cnki.com.cn/Article_en/CJFDTotal-YSLX2005S2095.htm

Du G Y, Wu C W, Zhang G Z, et al. 2018. Discussion on deep marine clay foundation treatment method of riverbank highway extension[J]. Journal of Engineering Geology, 26(6): 1681-1689. http://d.old.wanfangdata.com.cn/Periodical/gcdzxb201806032

Soudée E, Péra J. 2000. Mechanism of setting reaction in magnesia-phosphate cements[J]. Cement & Concrete Research, 30(2): 315-321. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=29e25bfdca219858d92be9fe670aaa48

Fan Z P, Zhu W, Zhang C L. 2005. Experimental study on influence of organic matter content on solidified dredging[J]. Rock and Soil Mechanics, 26(8): 1327-1334. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ytlx200508027

Huang Y H, Zhu W, Zhou X Z, et al. 2012. Experimental study of compressibility behavior of solidified dredged material[J]. Rock and Soil Mechanics, 33(10): 2923-2928. http://en.cnki.com.cn/Article_en/CJFDTOTAL-YTLX201210008.htm

Jiang H Y, Zhang L M. 2002. Study on properties of super-fast-hard phosphate concrete repair materials with pavement[J]. Highway, (3): 88-89.

Jin C, Yang Q B. 2013. Effects of fly ash on properties of phosphate-based material for rapid repair[J]. Fly Ash Comprehensive Utilization, (2): 36-37. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=fmhzhly201302009

Lei H Y, Jia Y F. 2013. Shear creep property and constitutive model for soft soil of littoral area in Tianjin[J]. Journal of Engineering Geology, 21(3): 416-421. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gcdzxb201303012

Liang S H, Wang M, Zhang L. 2015. Experimental study of mechanical properties and microstructures on Nansha soft soil stabilised with cement[J]. Materials Research Innovations, 19 (S8): 518-524. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=10.1179/1432891715Z.0000000001867

Liu J H, Zhou X T, Luo Z Q. 2019. Study on preparation and formation mechanism of ferronickel slag-based magnesium phosphate cement[J/OL]. Journal of Building Materials, http://kns.cnki.net/kcms/detail/31.1764.tu.20190929.1026.002.html.

Liu N, Chen B. 2016. Experimental research on magnesium phosphate cements containing alumina[J]. Construction & Building Materials, 121 : 354-360. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=0198a83fab43ea981967c22200ffcad6

Lu H B, Wang R, Zhao Y L, et al. 2003. Study of structure characteristics evolution of soft clay by pore size distribution test[J]. Rock and Soil Mechanics, 24(4): 573-578. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ytlx200304018

Qin Z H, Ma C, Zheng Z Q, et al. 2020. Effects of metakaolin on properties and microstructure of magnesium phosphate cement[J]. Construction and Building Materials, 234: 117353. doi: 10.1016/j.conbuildmat.2019.117353

Shao S, He H B, Zhang W, et al. 2017. Soil organic matter formation and origin: a review[J]. Journal of Jilin Normal University(Natural Science Edition), 38(1): 126-130. http://d.old.wanfangdata.com.cn/Periodical/tryhj201309027

Wang B X, Li X B, Du D J, et al. 2009. Test and study on the solidifying Tianjin marine soft soil with alkalescent cement additive[J]. Journal of Engineering Geology, 17(3): 426-432. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gcdzxb200903024

Wang D C. 2003. Integration of grinding and mixing: the development strategy of China's commercial concrete industry[J]. Concrete, (2): 20-23.

Wang H T, Cao J H. 2007. Study on setting time of Magnesia-Phosphate cement[J]. Journal of Logistical Engineering University, 23(2): 84-87. http://d.old.wanfangdata.com.cn/Conference/9081288

Wang H T, Cao J H, Xue M, et al. 2009. Study on the new phosphate cement repair material with super rapid hardening[J]. New Building Materials, 7 : 49-51. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=xxjzcl200907016

Yang A W, Zhang Z D, Li X W, et al. 2017. Microscopic structure evolution parameters of soft dredger fill in stage of safe operation hyperplasia with preconsolidation effect[J]. Journal of Engineering Geology, 25(2): 284-291. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gcdzxb201702003

Yang Q B, Zhang S Q, Yang Q S, et al. 2000. Properties of new fast-hardening phosphate repair materials[J]. China Concrete and Cement Products, (4): 8-11.

Zheng J, She C G, Yan C H, et al. 2017. Engineering geological mechanism on deformation of Nanjing metro tunnel in operating[J]. Journal of Engineering Geology, 25(1): 199-208. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gcdzxb201701026

柏炯. 2015.冲填软土地基深层加固的优化方案分析[J].工程地质学报, 23(2): 265-271. doi: 10.13544/j.cnki.jeg.2015.02.011

陈慧娥, 王清. 2005.有机质对水泥加固软土效果的影响[J].岩石力学与工程学报, 24 (S2): 5816-5821. http://d.old.wanfangdata.com.cn/Conference/6197752

杜广印, 吴春伟, 张国柱, 等. 2018.深厚海相软土临河公路扩建地基处理方法探讨[J].工程地质学报, 26(6): 1681-1689. doi: 10.13544/j.cnki.jeg.2017-553

范昭平, 朱伟, 张春雷. 2005.有机质含量对淤泥固化效果影响的试验研究[J].岩土力学, 26(8): 1327-1334. doi: 10.3969/j.issn.1000-7598.2005.08.027

黄英豪, 朱伟, 周宣兆, 等. 2012.固化淤泥压缩特性的试验研究[J].岩土力学, 33(2): 2923-2928. http://d.old.wanfangdata.com.cn/Periodical/ytlx201210007

姜洪义, 张联盟. 2002.超快硬磷酸盐混凝土路面修补材料性能的研究[J].公路, (3): 87-89. doi: 10.3969/j.issn.0451-0712.2002.03.022

金城, 杨全兵. 2013.粉煤灰对磷酸盐快速修补材料性能的影响[J].粉煤灰综合利用, (2): 36-37. doi: 10.3969/j.issn.1005-8249.2013.02.009

雷华阳, 贾亚芳. 2013.滨海软土剪切蠕变特性研究[J].工程地质学报, 21(3): 416-421. doi: 10.3969/j.issn.1004-9665.2013.03.012

刘佳辉, 周新涛, 罗中秋. 2019.镍铁渣基磷酸镁水泥的制备及其机理研究[J/OL].建筑材料学报, http://kns.cnki.net/kcms/detail/31.1764.tu.20190929.1026.002.html.

吕海波, 汪稔, 赵艳林, 等. 2003.软土结构性破损的孔径分布试验研究[J].岩土力学, 24(4): 573-578. doi: 10.3969/j.issn.1000-7598.2003.04.018

邵帅, 何红波, 张威, 等. 2017.土壤有机质形成与来源研究进展[J].吉林师范大学学报(自然科学版), 38(1): 126-130. http://d.old.wanfangdata.com.cn/Periodical/slxk-zrkx201701023

王宝勋, 李夕兵, 杜东菊, 等. 2009.应用碱性水泥外掺剂固化天津海积软土的试验研究[J].工程地质学报, 17(3): 426-432. doi: 10.3969/j.issn.1004-9665.2009.03.024

王定才. 2003.粉磨-搅拌一体化:中国商品混凝土产业的发展策略[J].混凝土, (2): 20-23. doi: 10.3969/j.issn.1002-3550.2003.02.010

汪宏涛, 曹巨辉. 2007.磷酸盐水泥凝结时间研究[J].后勤工程学院学报, 23(2): 84-87. doi: 10.3969/j.issn.1672-7843.2007.02.021

汪宏涛, 曹巨辉, 薛明, 等. 2009.新型超快硬磷酸盐水泥修补材料的研究[J].新型建筑材料, 7 : 49-51. http://d.old.wanfangdata.com.cn/Periodical/xxjzcl200907016

杨爱武, 张振东, 李潇雯, 等. 2017.考虑前期固结影响的吹填软土安全运营阶段微结构演化特征[J].工程地质学报, 25(2): 284-291. doi: 10.13544/j.cnki.jeg.2017.02.003

杨全兵, 张树青, 杨钱荣, 等. 2000.新型快硬磷酸盐修补材料性能[J].混凝土与水泥制品, (4): 8-11. doi: 10.3969/j.issn.1000-4637.2000.04.002

郑军, 佘才高, 阎长虹, 等. 2017.南京地铁运营隧道变形的工程地质机理研究[J].工程地质学报, 25 (1): 199-208. doi: 10.13544/j.cnki.jeg.2017.01.026
