SPATIAL-TEMPORAL EVOLUTION CHARACTERISTICS OF LAND SUB-SIDENCE AND GROUND FISSURE IN YUHUA VILLAGE OF XI'AN CITY USING SBAS-INSAR TECHNIQUE
-
摘要: 自20世纪50年代末以来，西安市遭受了严重的地面沉降和地裂缝灾害，严重制约了西安市城市建设发展规划。本文以西安市典型地面沉降区之一的鱼化寨为研究区，基于短基线集合成孔径雷达干涉测量技术，采用覆盖研究区的ERS(1992~1993年)、Envisat(2003~2010年)、Sentinel-1A(2015~2020年)3种卫星数据，并结合区内钻孔、地下水开采及城市发展建设历史和现状资料，分析鱼化寨周边地区地面沉降与地裂缝时空演变特征，探讨区内地面沉降与地裂缝的成因机制。本文获取的主要结果如下：获取了鱼化寨周边地区1992~2020年3阶段年均沉降速率图，揭示区内沉降中心由90年代电子城处(90mm ·a-1)变为现今鱼化寨处(50mm ·a-1)；证实了地面沉降与地裂缝在时空分布上具有关联性，地裂缝发育于地面沉降槽的北侧边缘，限制了地面沉降槽向北扩展，且随地面沉降槽的发展而延伸；揭示了鱼化寨沉降中心仍在扩大，f4地裂缝还存在向西延伸的可能；明确了鱼化寨周边地区地面沉降和地裂缝的发展受地下承压含水层的开采及人类建设活动等的影响。上述认识可为受地面沉降和地裂缝影响的城市地面开发利用和灾害防治提供一定参考和支撑。
-
关键词:
- 地面沉降 /
- 地裂缝 /
- SBAS-InSAR技术 /
- 时空演变 /
- 鱼化寨
Abstract: Since the late 1950s,Xi'an City has suffered from serious land subsidence and ground fissure,which seriously restricted the urban construction and development planning of Xi'an City. In this study,Yuhua Village,one of the typical land subsidence areas in Xi'an City,was taken as the research area. Based on the SBAS-InSAR technique,ERS(1992-1993),Envisat(2003-2010) and Sentinel-1A(2015-2020)satellite datas covering the study area are used to analyze the temporal and spatial evolution characteristics of land subsidence and ground fissures in the surrounding area of Yuhua Village. The drilling data and the history and current situation of groundwater exploitation and urban development are used in this paper. The genetic mechanism of land subsidence and ground fissures in the study area is also discussed. The main conclusions of this study are as follows. (1)The annual average subsidence rate of three stages in the surrounding area of Yuhua Village from 1992 to 2020 is obtained,which reveals that the subsidence center changes from the Electronic City(90mm ·a-1)in the 1990s to the present Yuhua Village(50mm ·a-1). (2)It is confirmed that there is a correlation between the land subsidence and the ground fissure in the temporal and spatial distribution. The ground fissures develop in the north edge of the land subsidence trough,which limit the northward development of land subsidence trough. And the ground fissures extend with the development of the land subsidence trough. (3)It is revealed that the Yuhua Village subsidence center is still expanding,and the f4 ground fissure may extend westward. (4)The development of land subsidence and ground fissure around Yuhua Village is affected by the exploitation of underground confined aquifer and human construction activities. The above understanding can provide certain reference and support for urban land development and disaster prevention affected by land subsidence and ground fissures.-
Key words:
- Land subsidence /
- Ground fissure /
- SBAS-InSAR technique /
- Spatial-temporal evolution /
- Yuhua Village
-
图 1 1992~2020年研究区内地裂缝空间分布演化
Figure 1. Spatial distribution and evolution of ground fissures in the study area from 1992 to 2020
图 2 研究区城市建设发展演化(数据来源于谷歌地球历史影像)
a. 1992年；b. 1999年；c. 2006年；d. 2020年
Figure 2. The evolution of urban construction in the study area(data from Google Earth history images)
图 4 1992~2020研究区平均沉降速率图(地裂缝分布为2017年分布情况)
a. 1992~1993年；b. 2003~2010年；c. 2015~2020年
Figure 4. Annual deformation rate map in the study area from 1992 to 2020

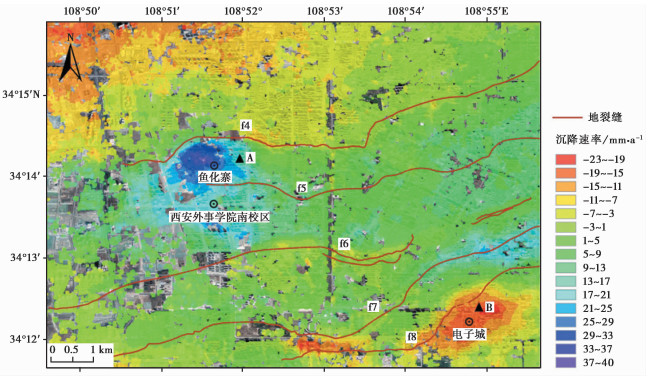

图 5 2018~2020年研究区年平均沉降速率图
Figure 5. Annual deformation rate map in the study area from 2018 to 2020

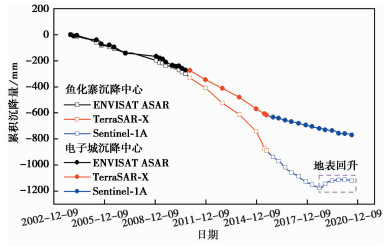

图 6 沉降中心累积沉降量(TerraSAR数据参考Peng et al., 2019)
Figure 6. Cumulative deformation in the subsidence center
图 7 研究区地面变形特征
a. 沉降陡变带现场照片(2020)；b. 沉降陡变带现场照片(2013)；c. 沉降中心外围现场照片(2020)；d. 沉降中心外围现场照片(2013)
Figure 7. Land deformation characteristics of the study area

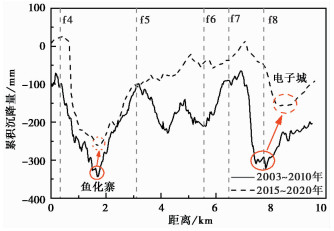

图 8 沿剖面线P1-P1′(2003~2010)和P2-P2′(2015~2020) 的地面累积沉降量和地裂缝关联关系
Figure 8. The correlation between the cumulative land subsidence and ground fissures along the profile P1-P1′(2003~2010) and P2-P2′(2015~2020)

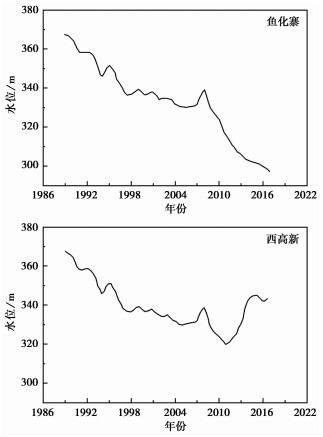

图 9 鱼化寨、西高新地下水位动态变化曲线图(董英等，2019)
Figure 9. The variation curves of groundwater level dynamics in Yuhua Village and High-tech zone

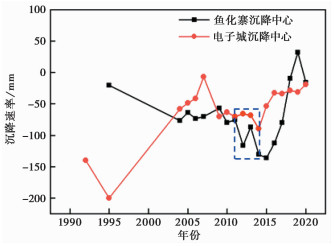

图 10 沉降中心逐年沉降速率变化图(虚线框内数据参考Peng et al., 2019)
Figure 10. Deformation rate change diagram of subsidence centers
图 11 抽水引起地面沉降与地裂缝形成机理及发展过程示意图
a. 1992年之前；b. 1992~2000年；c. 2003~2015年；d. 2015年~至今
Figure 11. Schematic diagram of ground fissure and ground subsidence caused by water pumping

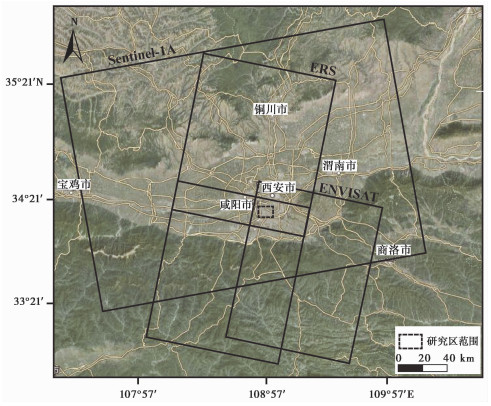

表 1 3种SAR数据基本参数
Table 1. Basic parameters of the three SAR date sets
传感器类型 ERS1/2 Envisat ASAR Sentinel-1A 波段 C C C 波长 5.6 5.6 5.6 极化方式 VV VV VV 轨道方向 降轨 降轨 升轨 影像数量 4 33 67 覆盖时间 1992.07.03~ 1993.03.05 2003.12.06~ 2010.09.25 2015.06.20~ 2020.08.04
下载: 导出CSV
-
Cao W Z. 2012. The analysis on the causes of different groundwater levels between two plates of the Xi'an ground fissure[D]. Xi'an: Chang'an University. Dong Y, Zhang M S, Liu J, et al. 2019. Coupling relationship between groundwater and ground fissures of land subsidence in Xi'an city and risk prevention and control technology[J]. Northwestern Geology, 52 (2): 95-102. Feng W K, Dun J W, Yi X Y, et al. 2020. Deformation analysis of Woda Village old landslide in Jinsha river basin using SBAS-InSAR technology[J]. Journal of Engineering Geology, 28 (2): 384-393. Geng D Y, Li Z S. 2000. Ground fissure hazards in the United States and China[J]. Acta Seismologica Sinica, 22 (4): 433-441. Lan H X, Meng Y S, Zhang Y X. 2019. Spatiotemporal evolution analysis of land subsidence in Fuzhou City under the influence of complex factors[J]. Journal of Engineering Geology, 27 (6): 1350-1361. Liu C C. 2011. Numerical simulation of land subsidence in Xi'an Gaoxinqu[D]. Xi'an: Chang'an University. Li N. 2010. Study on formation mechanism and numerical simulation of land subsidence in Xi'an[D]. Xi'an: Chang'an University. Liu Y, Lu Q Z, Zhan J W, et al. 2020. A review of synsedimentary faults[J]. Journal of Engineering Geology, 29 (4): 1155-1166. Lu Q Z, Zhao F K, Peng J B, et al. 2013. Overview on rupture propagation studies of buried ground-fissures[J]. Journal of Engineering Geology, 21 (6): 898-907. Lu Q Z, Li C, Liu C, et al. 2021. Classification of ground fissures and prevention measures of tectonic ground fissures in land subsidence area[J]. Journal of Earth Sciences and Environment, 43 (2): 366-375. Peng J B, Fan W, Li X A, et al. 2007. Some key questions in the formation of ground fissures in the Fen-Wei Basin[J]. Journal of Engineering Geology, 15 (4): 433-440. Peng J B. 2010. Research report on monitoring and prevention of ground fissure subsidence in typical area of Fenwei Basin[R]. Xi'an: Chang'an University. Peng J B. 2012. Ground fissure hazard in Xi'an[M]. Beijing: Science Press. Peng J B, Sun X H, Wang W, et al. 2016. Characteristics of land subsidence, earth fissures and related disaster chain effects with respect to urban hazards in Xi'an, China[J]. Environmental Earth Sciences, 75 (16): 1-15. Peng J B, Qiao J W, Sun X H, et al. 2020a. Distribution and generative mechanisms of ground fissures in China[J]. Journal of Asian Earth Sciences, 191: 104218. doi: 10.1016/j.jseaes.2019.104218 Peng J B, Sun X H, Lu Q Z, et al. 2020b. Characteristics and mechanisms for origin of earth fissures in Fenwei Basin, China[J]. Engineering Geology, 266: 105445. doi: 10.1016/j.enggeo.2019.105445 Peng M M, Zhao C Y, Zhang Q, et al. 2018. Monitoring Xi'an land subsidence during 2015~2017 using Sentinel-1A images[J]. Progress in Geophysics, 33 (6): 2264-2269. Peng M M, Zhao C Y, Zhang Q, et al. 2019. Research on spatiotemporal land deformation(2012~2018)over Xi'an, China, with multi-sensor SAR datasets[J]. Remote Sensing, 11(6): 664. doi: 10.3390/rs11060664 Pu C H, Xu Q, Zhao K Y, et al. 2020. Remote sensing analysis of land subsidence and vegetation restoration characteristics in excavation and filling areas of mountain region for urban extension in Yan'an[J]. Journal of Engineering Geology, 28 (3): 597-609. Qu F F, Zhang Q, Lu Z, et al. 2014. Land subsidence and ground fissures in Xi'an, China 2005-2012 revealed by multi-band InSAR time-series analysis[J]. Remote Sensing of Environment, 155 : 366-376. doi: 10.1016/j.rse.2014.09.008 Qiao J W, Peng J B, Zheng J G, et al. 2020. Development rules and movement characteristics of earth fissures in China[J]. Journal of Engineering Geology, 28 (5): 1016-1027. Shaanxi Huacai Tendering Co., Ltd. 2018. Announcement on procurement results of special engineering design and construction project of groundwater recharge for emergency treatment of land subsidence in Yuhua[EB/OL]. (2018-11-08)[2020.12.20]. http://www.ccgp.gov.cn/cggg/dfgg/cjgg/201811/t20181108_11064072.htm. Shi M. 2009. The development condition and section structure characteristic of Xi'an ground fissures[D]. Xi'an: Chang'an University. Sun G C, Peng J B, Zhang D Y. 2008. Discussion on the genetic mechanism of land subsidence in Xi'an[J]. Journal of Catastrophology, 23 (S1): 40-44. Wang Q Y, Peng J B, Jiang Z W, et al. 2014. Numerical simulation and layerwise mark monitoring of land subsidence and ground fissures of typical section in Xi'an[J]. Rock and Soil Mechanics, 35 (11): 3298-3302, 3309. Wu Z B, Miao X S, Yang G Q. 1986. The relationship between the land subsidence and the ground fissure in Xi'an[J]. Journal of Earth Sciences and Environment, 8 (4): 118-128. Yan W Z. 1998. Analysis on the origin of land subsidence and its countermeasures of control in Xi'an[J]. The Chinese Journal of Geological Hazard and Control, 9 (2): 27-32. Yan Y F. 2014. Analysis the Unconfined Water Characteristics Near the Xi'an Ground Fissure[D]. Xi'an: Chang'an University. Yin Y P, Zhang Z C, Zhang K J. 2005. Land subsidence and countermeasures for its prevention in China[J]. The Chinese Journal of Geological Hazard and Control, 16 (2): 1-8. Zhang A G, Liu Y, Gong S L. 2000. Overview of international land subsidence research[J]. Shanghai Land & Resources, 21 (4): 1-7. Zhang J M. 1990. Research on ground fracturing in the region of Xi'an[M]. Xi'an: Northwest University Press. Zhang J J, Zhang H X, Zhang M S, et al. 2017. Da preliminary study of land subsidence in the F4 ground fissure, Yuhuazhai area, Xi'an, China[J]. Journal of Geological Hazards and Environment Preservation, 28 (4): 31-37. Zhang J J, Zhang H X, Zhang M S, et al. 2018. Study on the seepage deformation induce ground fissures and land subsidence in Xi'an[J]. Journal of Engineering Geology, 26 (S): 301-309. Zhang Q, Zhao C Y, Ding X L, et al. 2009. Research on recent characteristics of spatio-temporal evolution and mechanism of Xi'an land subsidence and ground fissure by using GPS and InSAR techniques[J]. Chinese Journal of Geophysics, 52 (5): 1214-1222. Zhao C Y, Zhang Q, Ding X L, et al. 2009. InSAR based evaluation of land subsidence and ground fissure evolution at Xi'an[J]. Journal of Engineering Geology, 17 (3): 389-393. Zhao Q. 2019. Research on surface deformation monitoring in Jilin province based on InSAR time series analysis[D]. Changchun: Jilin University. Zhu L F, Li Y C, Liu F, et al. 2005. Features on ground fractures and exploration train of thought in Xi'an[J]. Northwestern Geology, 38 (4): 102-107. Zhu M R, Zhang J M. 1982. Ground fissures in Xi'an and their engineering geological significance[J]. Hydrogeology & Engineering Geology, 8 (5): 23-25. Zhu Y Q, Wang Q L, Xu Y M, et al. 2005. A study of the space-time change characteristics of ground subsidence in Xi'an and their mechanism[J]. Acta Geoscientica Sinica, 26 (1): 67-70. 曹伟忠. 2012. 西安地裂缝两盘地下水位差异成因分析[D]. 西安: 长安大学. 董英, 张茂省, 刘洁, 等. 2019. 西安市地下水与地面沉降地裂缝耦合关系及风险防控技术[J]. 西北地质, 52 (2): 95-102. https://www.cnki.com.cn/Article/CJFDTOTAL-XBDI201902014.htm 冯文凯, 顿佳伟, 易小宇, 等. 2020. 基于SBAS-InSAR技术的金沙江流域沃达村巨型老滑坡形变分析[J]. 工程地质学报, 28 (2): 384-393. doi: 10.13544/j.cnki.jeg.2019-411 耿大玉, 李忠生. 2000. 中美两国的地裂缝灾害[J]. 地震学报, 22 (4): 433-441. doi: 10.3321/j.issn:0253-3782.2000.04.013 兰恒星, 孟云闪, 仉义星. 2019. 复杂因素影响下的福州市地面沉降时空演化分析[J]. 工程地质学报, 27 (6): 1350-1361. doi: 10.13544/j.cnki.jeg.2018-268 刘琮琮. 2011. 西安高新区工程性地面沉降机理数值分析[D]. 西安: 长安大学. 李宁. 2010. 西安地面沉降形成机理及数值模拟研究[D]. 西安: 长安大学. 刘阳, 卢全中, 占洁伟, 等. 2020. 同沉积断层研究综述[J]. 工程地质学报, 29 (4): 1155-1166. doi: 10.13544/j.cnki.jeg.2019-494 卢全中, 赵富坤, 彭建兵, 等. 2013. 隐伏地裂缝破裂扩展研究综述[J]. 工程地质学报, 21 (6): 898-907. doi: 10.3969/j.issn.1004-9665.2013.06.018 卢全中, 李聪, 刘聪, 等. 2021. 地裂缝分类及地面沉降区构造地裂缝防治对策[J]. 地球科学与环境学报, 43 (2): 366-375. https://www.cnki.com.cn/Article/CJFDTOTAL-XAGX202102017.htm 彭建兵, 范文, 李喜安, 等. 2007. 汾渭盆地地裂缝成因研究中的若干关键问题[J]. 工程地质学报, 15 (4): 433-440. doi: 10.3969/j.issn.1004-9665.2007.04.001 彭建兵. 2010. 汾渭盆地典型地区地裂缝地面沉降监测与防治研究成果报告及各专题成果报告[R]. 西安: 长安大学. 彭建兵. 2012. 西安地裂缝灾害[M]. 北京: 科学出版社. 彭米米, 赵超英, 张勤, 等. 2018. 利用Sentinel-1A数据监测大西安2015~2017年地面沉降[J]. 地球物理学进展, 33 (6): 2264-2269. https://www.cnki.com.cn/Article/CJFDTOTAL-DQWJ201806010.htm 蒲川豪, 许强, 赵宽耀, 等. 2020. 基于遥感分析的延安新区平山造城工程地面沉降及植被恢复特征研究[J]. 工程地质学报, 28 (3): 597-609. doi: 10.13544/j.cnki.jeg.2019-107 乔建伟, 彭建兵, 郑建国, 等. 2020. 中国地裂缝发育规律与运动特征研究[J]. 工程地质学报, 28 (5): 1016-1027. doi: 10.13544/j.cnki.jeg.2020-266 陕西华采招标有限公司. 2018. 关于鱼化寨地区地面沉降应急治理地下水回灌专项工程设计及施工项目的采购结果公告[EB/OL]. (2018-11-08)[2020.12.20]. http://www.ccgp.gov.cn/cggg/dfgg/cjgg/201811/t20181108_11064072.htm. 石明. 2009. 西安地裂缝发育现状及剖面结构特征[D]. 西安: 长安大学. 孙刚臣, 彭建兵, 张德媛. 2008. 西安市地面沉降成因机理中的若干问题探讨[J]. 灾害学, 23 (S1): 40-44. https://www.cnki.com.cn/Article/CJFDTOTAL-ZHXU2008S1011.htm 王启耀, 彭建兵, 蒋臻蔚, 等. 2014. 西安典型段地面沉降分层标观测及数值模拟[J]. 岩土力学, 35 (11): 3298-3302, 3309. https://www.cnki.com.cn/Article/CJFDTOTAL-YTLX201411040.htm 吴在宝, 缪祥生, 杨国强. 1986. 西安地面沉降与地裂缝的关系[J]. 长安大学学报(地球科学版), 8 (4): 118-128. https://www.cnki.com.cn/Article/CJFDTOTAL-XAGX198604014.htm 闫文中. 1998. 西安地面沉降成因分析及其防治对策[J]. 中国地质灾害与防治学报, 9 (2): 27-32. https://www.cnki.com.cn/Article/CJFDTOTAL-ZGDH802.004.htm 闫育锋. 2014. 西安地裂缝附近潜水特征分析[D]. 西安: 长安大学. 殷跃平, 张作辰, 张开军. 2005. 我国地面沉降现状及防治对策研究[J]. 中国地质灾害与防治学报, 16 (2): 1-8. doi: 10.3969/j.issn.1003-8035.2005.02.001 张阿根, 刘毅, 龚士良. 2000. 国际地面沉降研究综述[J]. 上海地质, 21 (4): 1-7. https://www.cnki.com.cn/Article/CJFDTOTAL-SHAD200004001.htm 张家明. 1990. 西安市地裂缝研究[M]. 西安: 西北大学出版社. 张建军, 张鹤馨, 张茂省, 等. 2017. 西安鱼化寨F4地裂缝地面沉降初步研究[J]. 地质灾害与环境保护, 28 (4): 31-37. doi: 10.3969/j.issn.1006-4362.2017.04.007 张建军, 张鹤馨, 张茂省, 等. 2018. 渗透变形引起的西安地面沉降地裂缝研究初探[J]. 工程地质学报, 26(增): 301-309. doi: 10.13544/j.cnki.jeg.2018115 张勤, 赵超英, 丁晓利, 等. 2009. 利用GPS与InSAR研究西安现今地面沉降与地裂缝时空演化特征[J]. 地球物理学报, 52 (5): 1214-1222. doi: 10.3969/j.issn.0001-5733.2009.05.010 赵超英, 张勤, 丁晓利, 等. 2009. 基于InSAR的西安地面沉降与地裂缝发育特征研究[J]. 工程地质学报, 17 (3): 389-393. doi: 10.3969/j.issn.1004-9665.2009.03.018 赵强. 2019. 基于InSAR时序分析的吉林省地表形变监测研究[D]. 长春: 吉林大学. 朱立峰, 李益朝, 刘方, 等. 2005. 西安地裂缝活动特征及勘查思路探讨[J]. 西北地质, 38 (4): 102-107. doi: 10.3969/j.issn.1009-6248.2005.04.015 朱慕仁, 张家明. 1982. 西安地裂缝及其工程地质意义[J]. 水文地质工程地质, 8 (5): 23-25. https://www.cnki.com.cn/Article/CJFDTOTAL-SWDG198205005.htm 祝意青, 王庆良, 徐云马, 等. 2005. 西安市地面沉降时空演化特征及机理研究[J]. 地球学报, 26 (1): 67-70. doi: 10.3321/j.issn:1006-3021.2005.01.010 -
