软硬互层反倾岩质边坡稳定性影响因素分析及破坏模式研究

霍逸康 石振明 郑鸿超 黄达

霍逸康, 石振明, 郑鸿超, 等. 2023. 软硬互层反倾岩质边坡稳定性影响因素分析及破坏模式研究[J]. 工程地质学报, 31(5): 1680-1688. doi: 10.13544/j.cnki.jeg.2021-0159
引用本文: 霍逸康, 石振明, 郑鸿超, 等. 2023. 软硬互层反倾岩质边坡稳定性影响因素分析及破坏模式研究[J]. 工程地质学报, 31(5): 1680-1688. doi: 10.13544/j.cnki.jeg.2021-0159
Huo Yikang, Shi Zhenming, Zheng Hongchao, et al. 2023. Study on influence factors of stability and failure modes of anti-dip rock slope with soft and hard interbed[J]. Journal of Engineering Geology, 31(5): 1680-1688. doi: 10.13544/j.cnki.jeg.2021-0159
Citation: Huo Yikang, Shi Zhenming, Zheng Hongchao, et al. 2023. Study on influence factors of stability and failure modes of anti-dip rock slope with soft and hard interbed[J]. Journal of Engineering Geology, 31(5): 1680-1688. doi: 10.13544/j.cnki.jeg.2021-0159

软硬互层反倾岩质边坡稳定性影响因素分析及破坏模式研究

doi: 10.13544/j.cnki.jeg.2021-0159
基金项目:

国家重点研发计划 2019YFC1509702

住建部科研项目 2020-K-30

国家自然科学基金 41972297

详细信息
    作者简介:

    霍逸康(1998-),男,硕士生,主要从事地质灾害及岩体工程,边坡加固方面的研究工作. E-mail:huo_yikang@tongji.edu.cn

    通讯作者:

    黄达(1976-),男,博士,教授,博士生导师,主要从事岩土工程和工程地质方面的研究工作. E-mail:hdcqy@126.com

  • 中图分类号: P642.22

STUDY ON INFLUENCE FACTORS OF STABILITY AND FAILURE MODES OF ANTI-DIP ROCK SLOPE WITH SOFT AND HARD INTERBED

Funds:

the National Key R&D Program of China 2019YFC1509702

Scientific Research Project of the Ministry of Housing and Urban Rural Development 2020-K-30

the National Natural Science Foundation of China 41972297

  • 摘要: 反倾边坡破坏会诱发严重的地质灾害,因此对软硬互层反倾岩质边坡的稳定性及破坏模式进行研究具有重要的意义。本文基于数值模拟的方法,利用离散元UDEC软件,首先基于正交试验设计法,考虑了边坡坡角、岩层倾角、坡高、相邻软硬岩层总厚度、硬软岩层厚度比、硬软岩层力学参数序号比、结构面力学参数7个因素的影响,设计了32组正交试验,利用强度折减法对边坡的稳定性及可能的破坏模式进行模拟,并从边坡稳定系数和位移两个方面对计算结果进行敏感性分析。结果表明,边坡坡角和岩层倾角对稳定系数影响较大,结构面力学参数和坡高对边坡位移影响较大;然后对边坡的破坏模式进行归纳总结,将软硬互层反倾边坡的破坏模式分为弯曲倾倒破坏、坍塌滑动破坏和块体倾倒破坏3种类型,并对每种破坏类型的边坡特征进行详细分析。

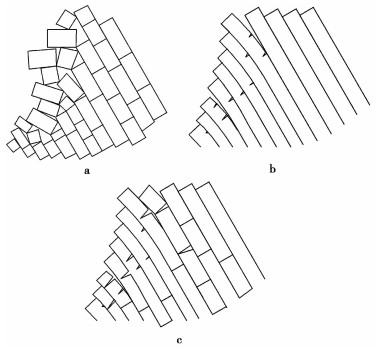

  • 图  1  反倾边坡倾倒破坏类型

    a. 块体倾倒;b. 弯曲倾倒;c. 块体-弯曲倾倒

    Figure  1.  Types of toppling failure of anti-dip slope

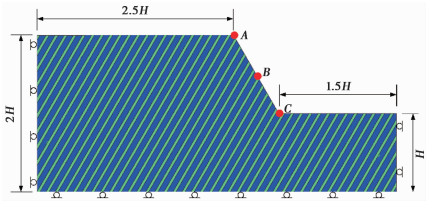

    图  2  UDEC计算模型

    Figure  2.  UDEC calculation model

    图  3  各因素水平变化对稳定系数的影响

    Figure  3.  Influence of various factors on safety factor

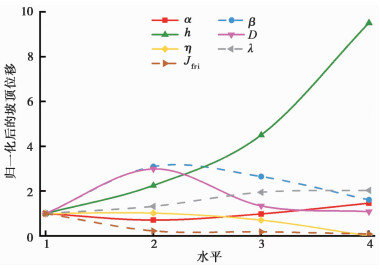

    图  4  各因素水平变化对坡顶位移的影响

    Figure  4.  Influence of various factors on displacement of top

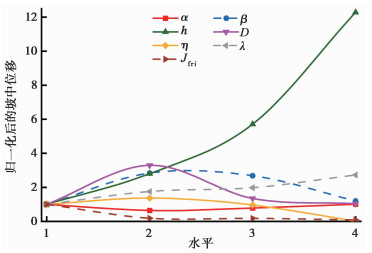

    图  5  各因素水平变化对坡中位移的影响

    Figure  5.  Influence of various factors on displacement of middle

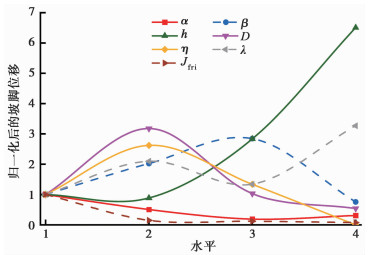

    图  6  各因素水平变化对坡脚位移的影响

    Figure  6.  Influence of various factors on displacement of foot

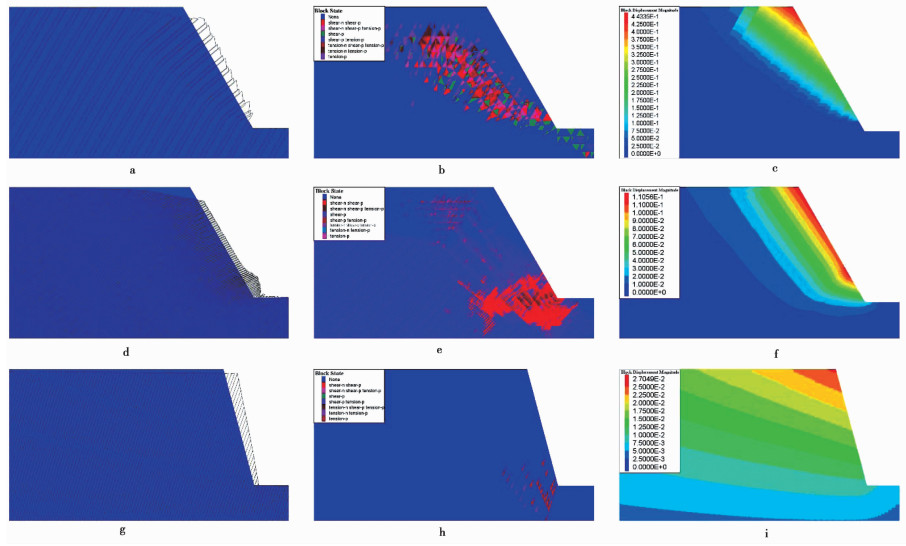

    图  7  17号、11号和28号试验模拟结果图

    a. 17号边坡变形图;b. 17号边坡塑性区图;c. 17号边坡总位移等值线图;d. 11号边坡变形图;e. 11号边坡塑性区图;f. 11号边坡总位移等值线图;g. 28号边坡变形图; h. 28号边坡塑性区图;i. 28号边坡总位移等值线图

    Figure  7.  Simulation results of No.17, No.11 and No.28 tests

    表  1  岩层力学参数选取

    Table  1.   Selection of mechanical parameters of rock

    序号 重度γ/kN·m-3 内摩擦角φ/(°) 黏聚力c/MPa 弹性模量E/GPa 泊松比μ 抗拉强度T/MPa
    1 22.5 27 0.20 1.30 0.350 0.10
    2 23.5 33 0.45 3.65 0.325 0.22
    3 25.5 45 1.10 11.00 0.275 0.60
    4 26.5 50 1.50 16.00 0.250 0.80
    下载: 导出CSV

    表  2  结构面力学参数选取

    Table  2.   Selection of mechanical parameters of structural plane

    序号 剪切模量Jks/GPa 体积模量Jkn/GPa 摩擦角Jfri/(°) 黏聚力Jcoh/MPa 抗拉强度Jten/MPa
    1 1 1 10 0.01 0.01
    2 30 30 20 0.03 0.03
    3 60 60 30 0.06 0.06
    4 90 90 40 0.09 0.09
    下载: 导出CSV

    表  3  硬软岩层力学参数序号组合

    Table  3.   Combination of mechanical parameter number of hard and soft rock layers

    硬软岩层力学参数序号比λ 硬岩序号 软岩序号
    1.5 3 2
    2 4 2
    3 3 1
    4 4 1
    下载: 导出CSV

    表  4  正交试验设计表

    Table  4.   Orthogonal test table

    试验编号 坡角α/(°) 岩层倾角β/(°) 坡高h/m 相邻软硬岩层总厚度D/m 硬软岩厚度比η 硬软岩层力学参数序号比λ 结构面参数(以Jfri为代表)/(°)
    1 60.00 45.00 40.00 6.00 0.50 1.50 20.00
    2 75.00 60.00 80.00 6.00 0.50 4.00 30.00
    3 45.00 30.00 40.00 2.00 0.50 4.00 30.00
    4 45.00 30.00 100.00 4.00 0.50 3.00 20.00
    5 75.00 30.00 80.00 2.00 2.00 2.00 20.00
    6 30.00 75.00 60.00 4.00 0.50 2.00 30.00
    7 45.00 60.00 40.00 6.00 1.00 2.00 20.00
    8 45.00 75.00 60.00 6.00 0.50 3.00 10.00
    9 60.00 30.00 60.00 6.00 2.00 4.00 10.00
    10 75.00 60.00 60.00 1.00 0.50 3.00 20.00
    11 60.00 45.00 100.00 1.00 0.50 2.00 30.00
    12 30.00 30.00 40.00 1.00 0.50 1.50 10.00
    13 45.00 45.00 80.00 4.00 2.00 2.00 10.00
    14 60.00 75.00 40.00 2.00 2.00 3.00 30.00
    15 75.00 45.00 40.00 4.00 0.50 4.00 40.00
    16 30.00 60.00 40.00 4.00 2.00 3.00 40.00
    17 60.00 60.00 80.00 4.00 0.50 1.50 10.00
    18 75.00 45.00 100.00 2.00 0.50 3.00 10.00
    19 60.00 30.00 80.00 1.00 1.00 3.00 40.00
    20 30.00 75.00 80.00 2.00 0.50 1.50 20.00
    21 60.00 75.00 100.00 4.00 1.00 4.00 20.00
    22 45.00 45.00 60.00 2.00 1.00 1.50 40.00
    23 75.00 30.00 60.00 4.00 1.00 1.50 30.00
    24 45.00 75.00 80.00 1.00 0.50 4.00 40.00
    25 30.00 45.00 60.00 1.00 2.00 4.00 20.00
    26 45.00 60.00 100.00 1.00 2.00 1.50 30.00
    27 30.00 30.00 100.00 6.00 0.50 2.00 40.00
    28 75.00 75.00 40.00 1.00 1.00 2.00 10.00
    29 30.00 45.00 80.00 6.00 1.00 3.00 30.00
    30 60.00 60.00 60.00 2.00 0.50 2.00 40.00
    31 75.00 75.00 100.00 6.00 2.00 1.50 40.00
    32 30.00 60.00 100.00 2.00 1.00 4.00 10.00
    下载: 导出CSV

    表  5  稳定系数的极差分析结果

    Table  5.   Range analysis results of safety factor

    平均值 α β h D η λ Jfri
    k1 5.19 4.59 4.13 4.20 3.37 4.07 2.81
    k2 4.20 4.23 4.05 3.81 3.70 4.00 3.52
    k3 2.93 3.38 3.28 3.14 4.27 2.76 3.59
    k4 2.39 2.52 3.25 3.57 3.89 4.79
    R 2.80 2.07 0.87 1.07 0.89 1.31 1.99
    敏感性 α>β>Jfri>λ>D>η>h
    下载: 导出CSV

    表  6  稳定系数的方差分析结果

    Table  6.   Variance analysis results of safety factor

    III类平方和 自由度 均方 F 显著性
    修正模型 98.687a 20 4.934 8.158 0
    截距 411.143 1 411.143 679.713 0
    坡角α 38.214 3 12.738 21.059 0
    岩层倾角β 20.597 3 6.866 11.350 0.001
    坡高h 5.414 3 1.805 2.983 0.078
    相邻软硬岩层总厚度D 4.781 3 1.594 2.634 0.102
    硬软岩层厚度比η 4.240 2 2.120 3.505 0.066
    硬软岩层力学参数序号比λ 9.151 3 3.050 5.043 0.019
    结构面参数Jfri 16.290 3 5.430 8.977 0.003
    误差 6.654 11 0.605
    总计 538.035 32
    修正后总计 105.340 31
    a. R 方=0.937(调整后R 方=0.822)
    下载: 导出CSV

    表  7  32组边坡潜在破坏模式特征归纳

    Table  7.   Summary of potential failure modes of 32 groups of slopes

    破坏模式 试验编号 边坡特征
    弯曲倾倒 1、2、5、6、7、8、9、10、13、15、17、18、20、21、23、30、32 ①坡角较大,倾角较大,其中坡角与倾角之和均大于90°;②软岩厚度占比较大,硬软岩厚度比大多为0.5;③岩体和结构面强度参数较小
    坍塌滑动 3、4、11、12、19、22、25、26 ①倾角较小,大多小于45°,高度较高;②软岩厚度占比较大,硬软岩厚度比大多为0.5,层厚较小,多为1m;③岩体强度和结构面参数较小
    块体倾倒 14、16、24、27、28、29、31 ①坡角较大,坡高较低,多为80m以下;②倾角较大,大多大于60°;③硬岩厚度占比较大且岩体强度参数较大
    下载: 导出CSV
