改进的Green-Ampt模型及其试验验证

陈骄锐 李绍红 罗晓辉 朱帅润 吴礼舟

陈骄锐, 李绍红, 罗晓辉, 等. 2023. 改进的Green-Ampt模型及其试验验证[J]. 工程地质学报, 31(5): 1728-1737. doi: 10.13544/j.cnki.jeg.2021-0171
引用本文: 陈骄锐, 李绍红, 罗晓辉, 等. 2023. 改进的Green-Ampt模型及其试验验证[J]. 工程地质学报, 31(5): 1728-1737. doi: 10.13544/j.cnki.jeg.2021-0171
Chen Jiaorui, Li Shaohong, Luo Xiaohui, et al. 2023. An improved Green-Ampt model and its experimental verification[J]. Journal of Engineering Geology, 31(5): 1728-1737. doi: 10.13544/j.cnki.jeg.2021-0171
Citation: Chen Jiaorui, Li Shaohong, Luo Xiaohui, et al. 2023. An improved Green-Ampt model and its experimental verification[J]. Journal of Engineering Geology, 31(5): 1728-1737. doi: 10.13544/j.cnki.jeg.2021-0171

改进的Green-Ampt模型及其试验验证

doi: 10.13544/j.cnki.jeg.2021-0171
基金项目:

国家重点研发计划 2018YFC1504702

国家自然科学基金面上项目 41672282

详细信息
    作者简介:

    陈骄锐(1997-),女,硕士生,主要从事岩土工程研究. E-mail: 1098099261@qq.com

    通讯作者:

    吴礼舟(1975-),男,博士,教授,博士生导师,从事地质工程的教学和研究. E-mail: wulizhou07@cdut.cn

  • 中图分类号: P642.3

AN IMPROVED GREEN-AMPT MODEL AND ITS EXPERIMENTAL VERIFICATION

Funds:

National Key Research and Development Program 2018YFC1504702

the National Natural Science Foundation of China 41672282

  • 摘要: 鉴于Green-Ampt模型过于简化、难以反映实际入渗特征,且其假设与实际入渗规律不符,本文为了弥补Green-Ampt模型的不足,提出了一种改进的Green-Ampt模型。提出的模型考虑了含水率与土体深度的关系,将土壤剖面划分为饱和区、过渡区以及天然区,土柱试验验证了所提出模型的准确性,也证实了入渗过程中过渡区的存在。试验结果表明:Green-Ampt模型计算值明显偏离实际累计入渗量,提出的模型总体上更接近实际累计入渗量。将该模型用于非饱和斜坡稳定性分析,计算结果揭示了Green-Ampt模型低估了斜坡的稳定性系数。提出的改进Green-Ampt模型为分析降雨滑坡风险提供参考。
  • 图  1  降雨时的边坡

    Figure  1.  A slope during rainfall

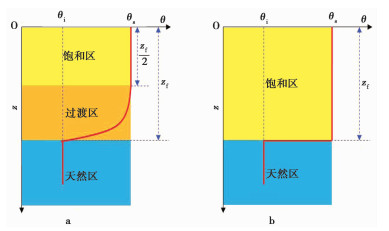

    图  2  土壤剖面体积含水率与深度关系

    a. 提出的模型;b. Green-Ampt模型

    Figure  2.  Relationship between volume moisture content and depth of soil profile

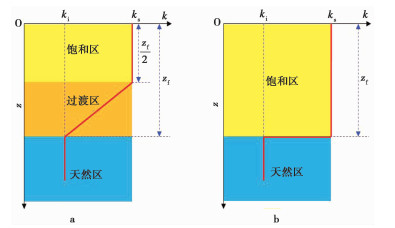

    图  3  土壤剖面渗透系数与深度的关系

    a. 提出的模型;b. Green-Ampt模型

    Figure  3.  Relationship between permeability coefficient and depth of soil profile

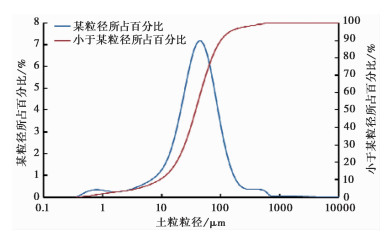

    图  4  次生黄土颗粒级配曲线

    Figure  4.  Grain gradation curve of secondary loess

    图  5  试验装置设计

    1. 水管;2. 控制阀;3. 水箱;4. 水;5. 排水管;6. 传感器;7. 土壤;8. 砂石;9. 数据采集装置;10. 计算机;11. 模型箱

    Figure  5.  Test device design

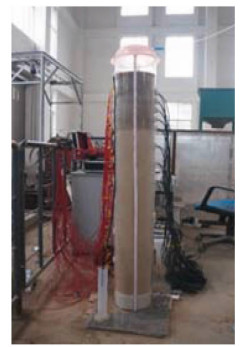

    图  6  试验装置实物图

    Figure  6.  Physical drawing of the test apparatus

    图  7  水分测定装置

    a. EC-5型体积含水率传感器;b. EM50数据采集仪

    Figure  7.  Moisture measurement device

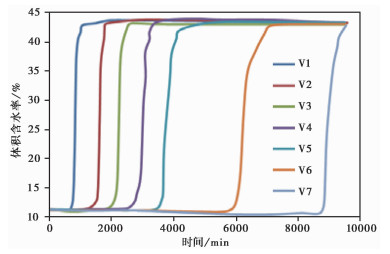

    图  8  含水率监测结果

    Figure  8.  Monitoring results of volumetric moisture content

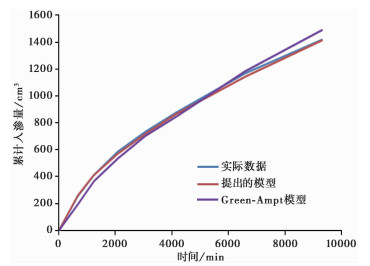

    图  9  累计入渗量时间的关系

    Figure  9.  The relationship between cumulative infiltration and time

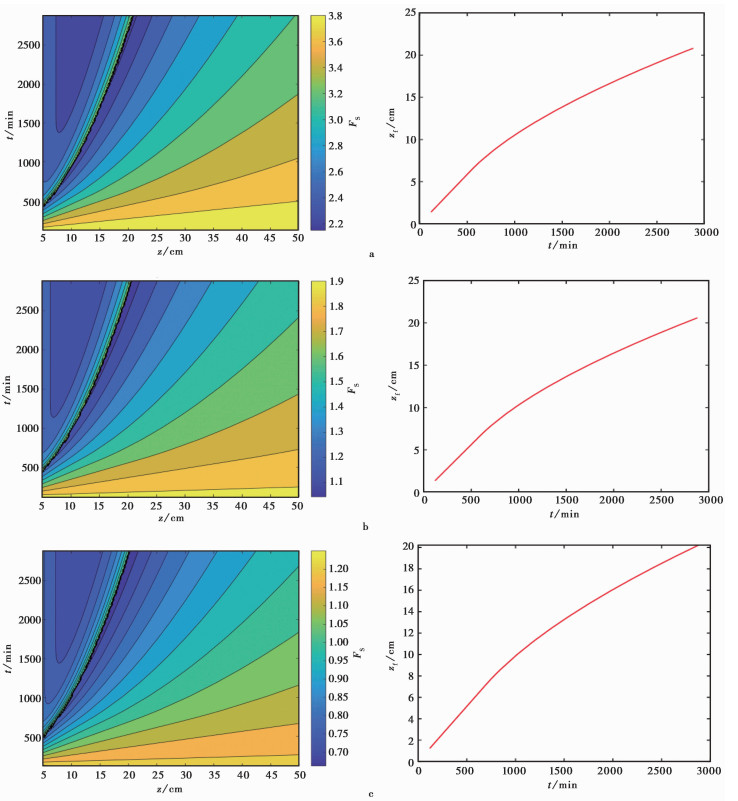

    图  10  提出的模型得到的稳定性系数

    a. 坡度为10°;b. 坡度为20°;c. 坡度为30°

    Figure  10.  The stability coefficient obtained by the presented model

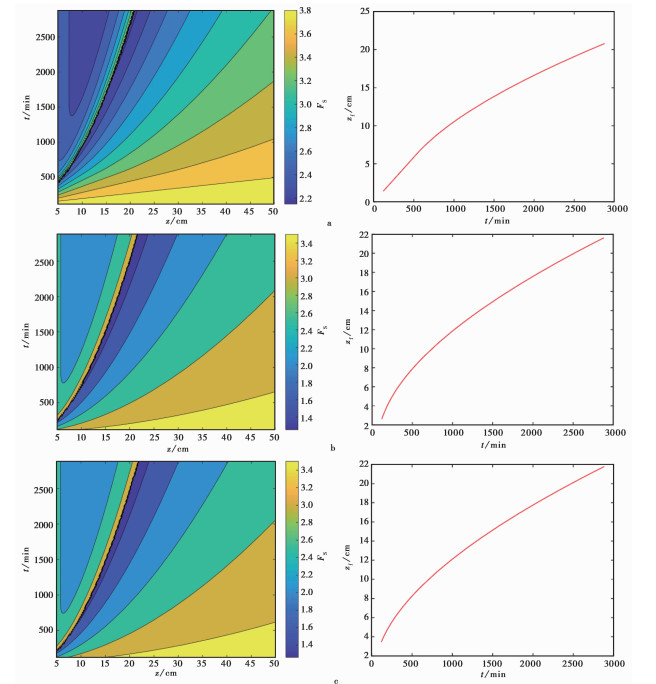

    图  11  提出的模型得到的稳定性系数

    a. 降雨强度为0.0035 cm·min-1;b. 降雨强度为0.0065 cm·min-1;c. 降雨强度为0.0095 cm·min-1

    Figure  11.  The stability coefficient obtained by the presented model

    图  12  提出的模型与Green-Ampt模型结果的比较

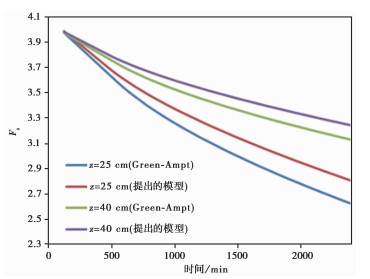

    Figure  12.  Comparison of results between the proposed model and the Green-Ampt model

    图  13  降雨过程中最小稳定性系数的变化

    a. 坡度的影响;b. 降水强度的影响

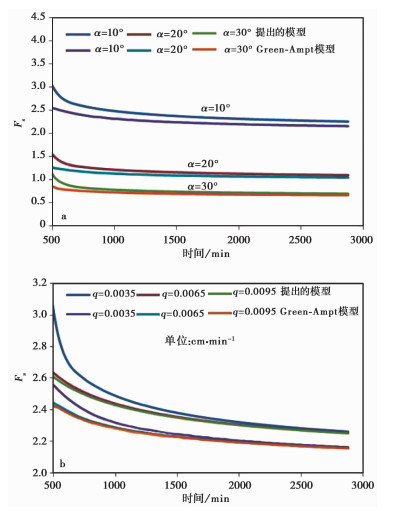

    Figure  13.  Variation of minimum stability coefficient during rainfall

    表  1  基本物理指标

    Table  1.   Basic physical indicators

    基本物理指标 干密度ρd/g·cm-3 比重Gs 孔隙比e 天然含水率w/% 残余含水wr/% 饱和含水ws/%
    次生黄土 1.35 2.76 1.04 8.68 2.3 43
    下载: 导出CSV

    表  2  计算参数

    Table  2.   Parameters for DEM simulations

    参数 提出的模型 Green-Ampt模型
    α/(°) 0 0
    q/cm·min-1 0.0035 0.0035
    sf/cm 63.08 63.08
    θs/% 44 44
    θi/% 11 11
    ks/cm·min-1 6.00×10-4 6.00×10-4
    ki/cm·min-1 7.80×10-5
    下载: 导出CSV

    表  3  提出的模型与经典的Green-Ampt模型的精度

    Table  3.   The accuracy of the proposed model and the Green-Ampt model

    MAE/cm3 MARE/% RMSE/cm3
    提出的模型 10.97 5.63 13.985
    Green-Ampt模型 42.73 8.06 46.07
    下载: 导出CSV

    表  4  计算参数

    Table  4.   Parameters for analysis

    参数 提出的模型 Green-Ampt模型
    α/(°) 10,20,30
    q/cm·min-1 0.0035,0.0065,0.0095
    sf/cm 63.057
    θs/% 44 44
    θi/% 11 11
    θr/% 2.3 2.3
    ks/cm·min-1 6.00×10-4 6.00×10-4
    ki/cm·min-1 7.80×10-5
    c/kPa 10 10
    φ/(°) 35 35
    γ/kN·m-3 20.2 20.2
    下载: 导出CSV
