砂土地基中海上风机吸力桶基础水平承载特性试验研究

寇海磊 周楠 杨丹良 冯军威 田华

寇海磊, 周楠, 杨丹良, 等.2021.砂土地基中海上风机吸力桶基础水平承载特性试验研究[J].工程地质学报, 29(6): 1752-1758. doi: 10.13544/j.cnki.jeg. 2021-0202
引用本文: 寇海磊, 周楠, 杨丹良, 等.2021.砂土地基中海上风机吸力桶基础水平承载特性试验研究[J].工程地质学报, 29(6): 1752-1758. doi: 10.13544/j.cnki.jeg. 2021-0202
Kou Hailei, Zhou Nan, Yang Danliang, et al. 2021. Study on horizontal bearing capacity of suction bucket foundation for offshore wind power in soil [J]. Joumal of Engineering Geology, 29(6): 1752-1758. doi: 10.13544/j.cnki.jeg.2021-0202
Citation: Kou Hailei, Zhou Nan, Yang Danliang, et al. 2021. Study on horizontal bearing capacity of suction bucket foundation for offshore wind power in soil [J]. Joumal of Engineering Geology, 29(6): 1752-1758. doi: 10.13544/j.cnki.jeg.2021-0202

砂土地基中海上风机吸力桶基础水平承载特性试验研究

doi: 10.13544/j.cnki.jeg.2021-0202
基金项目:

国家自然科学基金 51879246

详细信息
    作者简介:

    寇海磊(1983-),男,博士,副教授,博士生导师,主要从事海洋岩土的教学与科研工作. E-mail: hlkou@ouc.edu.cn

    通讯作者:

    周楠(1997-),男,硕士生,主要研究方向为海洋岩土. E-mail: znmr134@163.com

  • 中图分类号: TU43

STUDY ON HORIZONTAL BEARING CAPACITY OF SUCTION BUCKET FOUNDATION FOR OFFSHORE WIND POWER IN SOIL

Funds:

the National Natural Science Foundation of China 51879246

  • 摘要: 砂性土地基中海上风机吸力桶基础水平承载特性对海上风机稳定性至关重要。本文通过室内模型试验,对不同荷载循环比作用下砂性土地基吸力桶基础水平承载特性进行了研究。试验表明:当循环荷载比ζb=0.33时,吸力桶基础累积变形在循环过程中变化不大; 当循环荷载比ζb=1.0时,吸力桶基础累积变形随循环次数增加一直增大并且有继续增大的趋势,循环结束后,ζb=0.33及ζb=1.0的循环累积变形分别为0.006D、0.149D。在ζb=0.33及ζb=1.0的水平循环荷载作用下,50次循环结束后累积旋转角度分别为不同循环荷载比作用下第1次循环累积转角的1.43倍和1.76倍,随着循环次数增加,旋转中心的位置逐渐向上移动,最终稳定在砂面以下0.8L处左右。研究结果可为砂性土地基海上风机吸力桶基础的设计与施工提供理论依据。

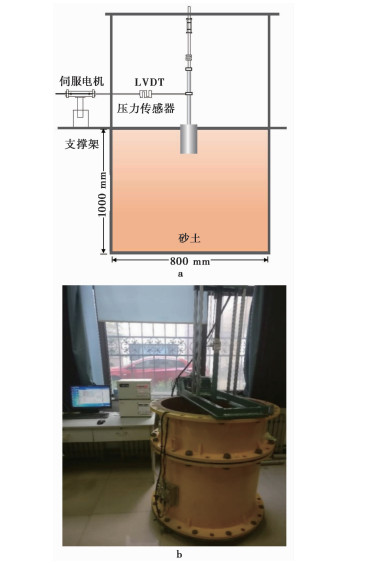

  • 图  1  室内模型装置

    a. 示意图; b. 实物图

    Figure  1.  Model device

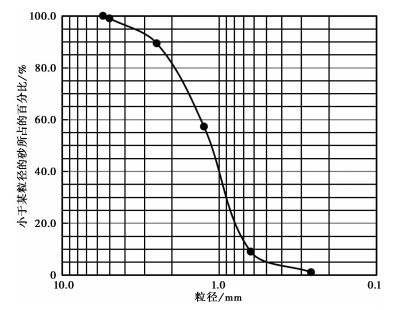

    图  2  土粒试样颗粒级配曲线

    Figure  2.  Grain grading curve

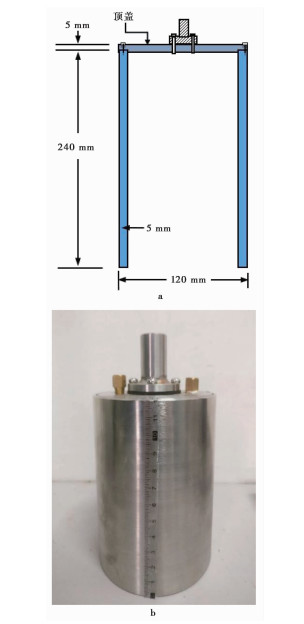

    图  3  吸力桶模型

    a. 示意图; b. 实物图

    Figure  3.  Caisson model

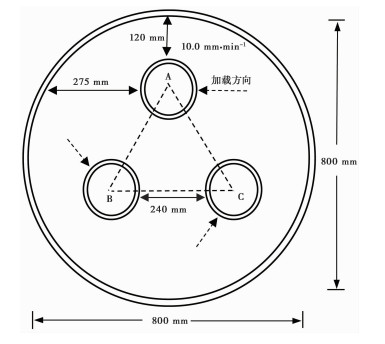

    图  4  贯入点布置

    Figure  4.  Penetration point layout

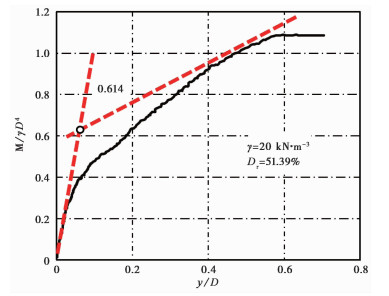

    图  5  水平静载荷试验

    Figure  5.  Horizontal static load test

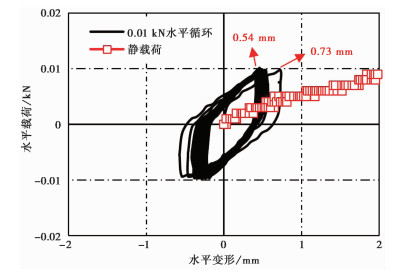

    图  6  0.01kN水平力循环过程荷载-位移关系

    Figure  6.  Load displacement relationship of 0.01kN horizontal load

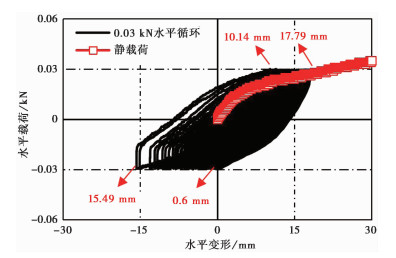

    图  7  0.03kN水平力循环过程荷载-位移关系

    Figure  7.  Load displacement relationship of 0.03kN horizontal load

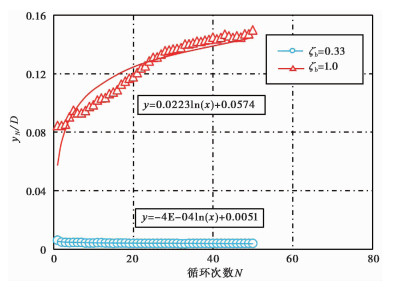

    图  8  桶形基础累积变形与循环次数N之间的关系

    Figure  8.  Relationship between cumulative deformation of bucket foundation and number of cycles N

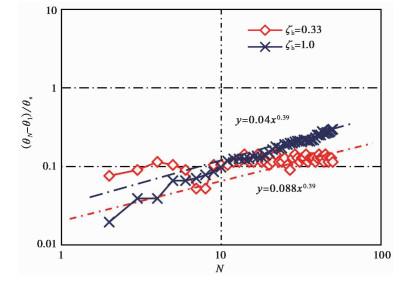

    图  9  (θN-θ1)/θs-N关系曲线

    Figure  9.  Relation curve between (θN-θ1)/θs and N

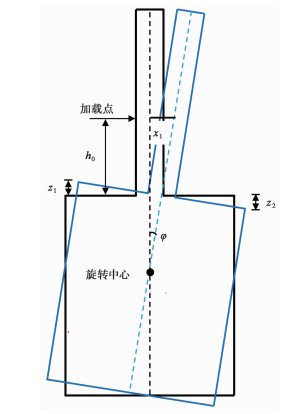

    图  10  旋转角测定示意图

    Figure  10.  Schematic diagram of rotation angle measurement

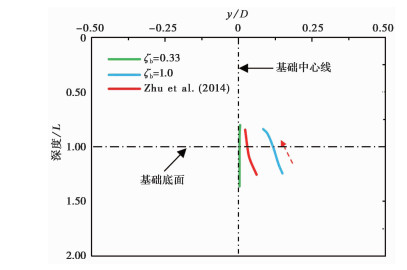

    图  11  旋转中心变化趋势

    Figure  11.  Change trend of rotation center

    表  1  土粒试样物理力学参数

    Table  1.   Mechanical parameters of sand

    物理参数 平均粒径d50/mm 最小干密度ρd,min /g·cm-3 最大干密度ρd,max /g·cm-3 相对密度Dr 内摩擦角φ /(°) 重度γ /kN·m-3
    量值 0.71 1.37 1.72 51.39% 34 20
    下载: 导出CSV
  • Anderson K H, Murff J D, Randolph M F, et al. 2005. Suction anchors for deepwater applications[C]//Proceedings of the 1st International Symposium on Frontiers in Offshore Geotechnics.
    Chen W, Randolph M F. 2007. External radial stress changes and axial capacity for suction caissons in soft clay[J]. Géotechnique, 57 (6): 499-511. doi: 10.1680/geot.2007.57.6.499
    Cheng L P, Zhang Y K, Li D Y. 2020. Review of uplift capacity and pullout mechanism of suction caisson for offshore foundation[J]. Journal of Engineering Geology, 28 (3): 639-649.
    Cox J A, O'Loughlin C D, Cassidy M, et al. 2014. Centrifuge study on the cyclic performance of caissons in sand[J]. International Journal of Physical Modelling in Geotechnics, 14 (4): 99-115. doi: 10.1680/ijpmg.14.00016
    Ding H, Zhang P, Le C. 2010. Behavior of bucket foundations for offshore wind turbines under cyclic horizontal loading[C]//Proceedings of the E-Product E-Service and E-Entertainment(ICEEE).
    Foglia A, Ibsen L B. 2016. Monopod bucket foundations under cyclic lateral loading[J]. International Journal of Offshore and Polar Engineering, 26 (2): 109-115. doi: 10.17736/ijope.2016.jcr48
    Gao Z A, Li P, Xiao J J, et al. 2020. Evaluation of shear strength of unsaturated loess using conventional direct shear test[J]. Journal of Engineering Geology, 28 (2): 344-351.
    He Y P, Tan J H. 2002. The development history and typical application of bucket foundation[J]. China Offshore Platform, 17 (6): 10-14. http://www.cqvip.com/QK/90530X/200206/7276872.html
    Hossain M S, Cassidy M J, Hu Y. 2016. T-bar to spudcan design approach in single-layer clays and calcareous silts[J]. Journal of Geotechnical and Geoenvironmental Engineering, 142(7): 04016025. doi: 10.1061/(ASCE)GT.1943-5606.0001486
    Houlsby G T. 2016. Interactions in offshore foundation design[J]. Géotechnique, 66 (10): 791-825. doi: 10.1680/jgeot.15.RL.001
    Hu R L, Li X, Wang Y, et al. 2020. Research on engineering geomechanics and structural effect of soil-rock mixture[J]. Journal of Engineering Geology, 28 (2): 255-281.
    Iskander M, Ei-gharbawy S, Olson R. 2002. Performance of suction caissons in sand and clay[J]. Canadian Geotechnical Journal, 39 (3): 576-584. doi: 10.1139/t02-030
    Kang S, Zhao Q H, Peng S Q, et al. 2019. Effect of gravel-soil characters on lateral bearing capacity of pile foundation[J]. Journal of Engineering Geology, 27 (3): 559-568. http://en.cnki.com.cn/Article_en/CJFDTotal-GCDZ201903013.htm
    Kelly R B, Houlsby G T, Byrne B W. 2006. A comparison of field and laboratory tests of caisson foundations in sand and clay[J]. Géotechnique, 56 (9): 617-626. doi: 10.1680/geot.2006.56.9.617
    LeBlanc C, Byrne B W, Houlsby G T. 2010. Response of stiff piles to random two-way lateral loading[J]. Géotechnique, 60 (9): 715-721. doi: 10.1680/geot.09.T.011
    Li D Y, Chen Q J, Zhang Y K, et al. 2020. Review of horizontal loading on suction caisson of offshore wind turbines[J]. The Ocean Engineering, 38 (4): 137-147.
    Li D Y, Zhang J R, Zhang Y K, et al. 2021. Bearing behavior and accumulated rotation of modified suction caisson(MSC)in saturated sand under cyclic loading[J]. Rock and Soil Mechanics, 42 (3): 611-619.
    Li D Y, Zhang Y K, Gao Y F, et al. 2012. Model tests on penetration of suction anchors in medium-coarse sand[J]. Chinese Journal of Geotechnical Engineering, 34 (12): 2277-2283. http://www.cqvip.com/QK/95758X/201212/44164368.html
    Li X C, Sun D A, Xu Y F. 2019. Study on correlations of physical and mechanical property indexes of Yangzhou clays[J]. Journal of Engineering Geology, 27 (2): 333-340. http://en.cnki.com.cn/Article_en/CJFDTotal-GCDZ201902014.htm
    Luo L B, Wang Y, Huang J Q, et al. 2021. Study on effects of cyclic loading on lateral capacity of suction bucket foundations[J]. Acta Energiae Solaris Sinica, 42 (3): 142-147.
    Mansur C I, Kaufman R I. 1956. Pile tests, low-sill structures, Old River, Louisiana[J]. Journal of the Soil Mechanics and Foundations Division, 82 (4): 1-33. http://www.researchgate.net/publication/288847369_Pile_tests_low-sill_structure_Old_River_Louisiana
    Tran M. 2005. Installation of suction caissons in dense sand and the influence of silt and cemented layers[D]. Sydney: University of Sydney.
    Wang Z, Du S J, Wang D Y. 2009. Numerical analysis of the ultimate bearing capacity behavior of Spar platform's suction foundation[J]. The Ocean Engineering, 27 (3): 54-61. http://en.cnki.com.cn/Article_en/CJFDTOTAL-HYGC200903008.htm
    Wu K, Luan M T, Fan Q L, et al. 2008. Numerical analysis of bearing capacity behavior of bucket foundation based on elasto-plastic FEM[J]. Journal of Dalian University of Technology, 48 (5): 702-707. http://www.cnki.com.cn/Article/CJFDTotal-DLLG200805014.htm
    Zhang Z, Cheng X. 2017. Predicting the cyclic behaviour of suction caisson foundations using the finite element method[J]. Ships and Offshore Structures, 12 (7): 900-909. doi: 10.1080/17445302.2016.1158686
    Zhu B, Byrne B W, Houlsby G T. 2013. Long-term lateral cyclic response of suction caisson foundations in sand[J]. Journal of Geotechnical and Geoenvironmental Engineering, 139 (1): 73-83. doi: 10.1061/(ASCE)GT.1943-5606.0000738
    Zhu B, Kong D Q, Tong J G, et al. 2011. Model tests on penetration and pullout of suction caissons in silt[J]. Chinese Journal of Geotechnical Engineering, 33 (7): 1045-1053. doi: 10.1139/t11-021
    Zhu B, Zhang W L, Ying P P, et al. 2014. Deflection-based bearing capacity of suction caisson foundations of offshore wind turbines[J]. Journal of Geotechnical and Geoenvironmental Engineering, 140(5): 04014013. doi: 10.1061/(ASCE)GT.1943-5606.0001107
    Zhu W B, Dai G L, Yuan L J, et al. 2018. Experimental study on the long-term horizontal bearing characteristics of suction caisson foundation[J]. The Ocean Engineering, 36 (3): 26-32. http://en.cnki.com.cn/Article_en/CJFDTOTAL-HYGC201803004.htm
    陈林平, 张雨坤, 李大勇. 2020. 吸力基础抗拔与拔出机理的研究进展[J]. 工程地质学报, 28 (3): 639-649. doi: 10.13544/j.cnki.jeg.2019-024
    高志傲, 李萍, 肖俊杰, 等. 2020. 利用常规直剪试验评价非饱和黄土抗剪强度[J]. 工程地质学报, 28 (2): 344-351. doi: 10.13544/j.cnki.jeg.2019-238
    何炎平, 谭家华. 2002. 筒型基础的发展历史和典型用途[J]. 中海洋平台, 17 (6): 10-14. https://www.cnki.com.cn/Article/CJFDTOTAL-ZGHY200206003.htm
    胡瑞林, 李晓, 王宇, 等. 2020. 土石混合体工程地质力学特性及其结构效应研究[J]. 工程地质学报, 28 (2): 255-281. doi: 10.13544/j.cnki.jeg.2020-077
    康舜, 赵其华, 彭社琴, 等. 2019. 碎石土土体性状对桩基水平承载能力的影响[J]. 工程地质学报, 27 (3): 559-568. doi: 10.13544/j.cnki.jeg.2018-231
    李大勇, 陈庆剑, 张雨坤, 等. 2020. 海上风机吸力基础的水平受荷研究综述[J]. 海洋工程, 38 (4): 137-147. https://www.cnki.com.cn/Article/CJFDTOTAL-HYGC202004017.htm
    李大勇, 张景睿, 张雨坤, 等. 2021. 饱和砂土中裙式吸力基础水平循环特性和累积转角变化规律[J]. 岩土力学, 42 (3): 611-619. https://www.cnki.com.cn/Article/CJFDTOTAL-YTLX202103003.htm
    李大勇, 张雨坤, 高玉峰, 等. 2012. 中粗砂中吸力锚的负压沉贯模型试验研究[J]. 岩土工程学报, 34 (12): 2277-2283. https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC201212022.htm
    李旭昶, 孙德安, 徐永福. 2019. 扬州土物理与力学性质指标的相关性分析[J]. 工程地质学报, 27 (2): 333-340. doi: 10.13544/j.cnki.jeg.2017-486
    罗仑博, 王媛, 黄景琦, 等. 2021. 海洋循环荷载对吸力桶基础水平承载力的影响研究[J]. 太阳能学报, 42 (3): 142-147. https://www.cnki.com.cn/Article/CJFDTOTAL-TYLX202103021.htm
    王志, 杜守继, 王德禹. 2009. Spar平台吸力式基础极限承载特性数值分析[J]. 海洋工程, 27 (3): 54-61. doi: 10.3969/j.issn.1005-9865.2009.03.008
    武科, 栾茂田, 范庆来, 等. 2008. 桶形基础承载性能弹塑性有限元数值分析[J]. 大连理工大学学报, 48 (5): 702-707. https://www.cnki.com.cn/Article/CJFDTOTAL-DLLG200805014.htm
    朱斌, 孔德琼, 童建国, 等. 2011. 粉土中吸力式桶形基础沉贯及抗拔特性试验研究[J]. 岩土工程学报, 33 (7): 1045-1053. https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC201107008.htm
    朱文波, 戴国亮, 袁龙锦, 等. 2018. 吸力式沉箱基础长期水平荷载作用下承载特性试验研究[J]. 海洋工程, 36 (3): 26-32. https://www.cnki.com.cn/Article/CJFDTOTAL-HYGC201803004.htm
