RESEARCH ON INFLUENCING FACTORS OF EXPANSIVE DEFORMATION OF EXPANSIVE SOIL IN ANKANG AREA BASED ON PCA
-
摘要: 为探究膨胀土物理力学性质指标对其膨胀变形影响。结合陕西安康地区某膨胀土工程实例，基于大量野外岩土勘察和室内测试数据资料，采用主成分分析法研究了膨胀土的膨胀变形与其物理力学性质指标间相关性及不同指标重要程度，建立了以主要物理力学指标为参数的膨胀土膨胀变形判别公式。影响膨胀土膨胀变形的物理力学指标可划分为反映外界环境的指标(含水率、饱和度、液性指数及含水比)、反映土体构造特征的指标(密度、干密度及孔隙比)、反映土体结构强度特征的指标(压缩系数和内摩擦角)及反映土体组成特征的指标(塑性指数和黏聚力)；含水率是影响膨胀土膨胀变形的关键指标，所建立判别公式可为类似地区膨胀土膨胀变形的判别提供参考。Abstract: This paper aims to explore the influence of physical and mechanical properties of expansive soil on swelling deformation. Based on principal component analysis(PCA),the paper studied the correlation between the swelling deformation of expansive soil and its physical and mechanical properties,and established the discrimination formula of swelling deformation with main physical indexes as parameters. It completed the above work through a large number of field geotechnical investigation and indoor test of an expansive soil project in Ankang,Shaanxi Province. The results show that the physical and mechanical indexes affecting the swelling deformation of expansive soil can be divided into the four types of factors. The first type of factors reflects the environment including water content,saturation,liquid index and water content ratio. The second type reflects soil structure characteristics including density,dry density and void ratio. The third reflects structural strength characteristics of soil mass including compressibility and internal friction angle. The fourth reflects soil composition including plasticity index and cohesion. Moisture content is the key index affecting the expansion deformation of expansive soil. The prediction model can provide a reference for the judgment of expansive deformation of expansive soil.
-

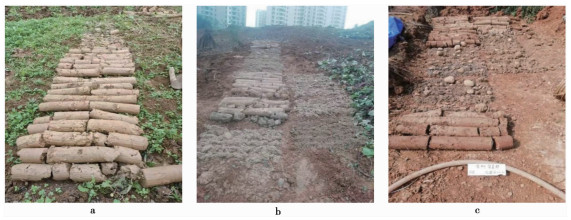

图 1 不同颜色膨胀土样
a. 黄褐色；b. 灰褐色；c. 红褐色
Figure 1. Expansive soil samples with different colors

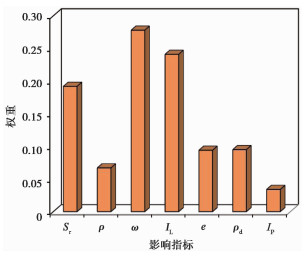

图 6 膨胀土膨胀性影响指标重要程度
Figure 6. Importance of the influence index on the expansibility of expansive soil
表 1 膨胀土物理力学指标统计值
Table 1. Test data of physical and mechanical indexes of expansive soil
数据类型 物理性质指标 力学性质指标 含水率ω /% 密度ρ /g·cm-3 干密度ρd /g·cm-3 孔隙比e 饱和度Sr /% 塑性指数Ip 液性指数IL 含水比ωb 压缩系数av/MPa-1 黏聚力c /kPa 内摩擦角φ/(°) 平均值 19.44 1.88 1.58 0.71 74.08 11.67 0.23 0.67 0.28 41.66 23.51 最大值 23.20 2.01 1.69 0.83 95.00 12.50 0.60 0.84 0.43 49.60 26.60 最小值 15.30 1.80 1.48 0.61 57.00 10.60 0.01 0.52 0.16 35.8 20.40 方差值 3.73 0 0 0 71.55 0.26 0.02 0.01 0 8.61 1.44 极差值 7.90 0.21 0.21 0.22 38.00 1.90 0.59 0.32 0.27 13.80 6.20 标准差 1.93 0.06 0.04 0.05 8.43 0.50 0.14 0.07 0.07 2.92 1.20
下载: 导出CSV
表 2 KMO和Bartlett检验结果
Table 2. KMO and Bartlett test result
Kaiser-Meyer-Olkin(KMO) 0.654 Bartlett 近似卡方 3386.733 df 55 Sig. 0
下载: 导出CSV

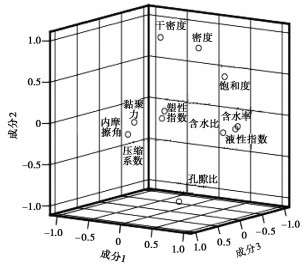

表 4 主成分荷载矩阵数值
Table 4. The value of the principal component load matrix
指标 成分 1 2 3 4 饱和度/% 0.981 -0.103 0.043 0.097 密度/g·cm-3 0.830 -0.554 -0.024 -0.012 含水率/% 0.829 0.488 0.099 0.189 含水比 0.810 0.562 0.023 -0.073 液性指数 0.716 0.515 0.194 -0.093 孔隙比 -0.408 0.897 0.089 0.125 干密度/g·cm-3 0.410 -0.893 -0.092 -0.138 内摩擦角/(°) -0.019 -0.132 0.709 -0.479 压缩系数/MPa-1 -0.332 -0.124 0.577 -0.116 黏聚力/kPa 0.075 -0.171 0.550 0.364 塑性指数 -0.105 -0.316 0.227 0.792
下载: 导出CSV
表 3 主成分特征值及贡献率
Table 3. Characteristic value and contribution rate of each component
成分 特征值 贡献率/% 累积贡献率/% 1 3.968 36.074 36.074 2 2.900 26.367 62.441 3 1.784 11.424 73.865 4 1.097 9.970 83.835 5 0.826 8.243 92.078 6 0.577 5.881 97.958 7 0.218 1.978 99.936 8 0.004 0.035 99.971 9 0.002 0.017 99.988 10 0.001 0.100 99.998 11 0.0007 0.002 100.000
下载: 导出CSV
表 5 主成分系数矩阵数值
Table 5. Numerical value of coefficient matrix of principal component
指标 成分 1 2 3 4 含水率/% 0.281 -0.064 -0.056 0.146 密度/g·cm-3 0.076 0.272 -0.017 0.023 干密度/g·cm-3 -0.086 0.337 0.016 -0.075 孔隙比 0.086 -0.336 -0.013 0.063 饱和度/% 0.200 0.142 -0.038 0.098 塑性指数 -0.019 -0.051 -0.173 0.731 液性指数 0.268 -0.057 0.134 -0.044 含水比 0.271 -0.046 0.003 -0.093 压缩系数/MPa-1 -0.006 -0.043 0.462 0.124 黏聚力/kPa 0.082 -0.039 0.224 0.497 内摩擦角/(°) 0.069 0.039 0.702 -0.115
下载: 导出CSV
-
Bao C G, Gong B W, Zhang L T. 1998. Proper of unsaturated soil and slope stability of expansive[C]//Proc. The Second International Conference on Unsaturated Soils: 71-98. Bao C G. 2004. Behavior of unsaturated soil and stability of expansive soil slope[J]. Chinese Journal of Geotechnical Engineering, 26 (1): 1-15. Chen Q, Peng Y L, Cao Z Z, et al. 2019. Experimental study on dynamic characteristics of expansive soil from Yanzhou-Shijiusuo railway roadbed under cyclic loading[J]. Journal of Engineering Geology, 27 (4): 737-744. Chen Z H, Guo N. 2019. New developments of mechanics and application for unsaturated soils and special soils[J]. Rock and Soil Mechanics, 40 (1): 1-52. Chi Z C, Chen S X, Zhou Z, et al. 2017. An experimental study of three-dimensional swelling swelling pressure of Hefei remolded expansive clay[J]. Rock and Soil Mechanics, 38 (S1): 381-386. Gao L, Li J P, Li X X. 2021. Classification method for expansive soil based on swallowtail catastrophe model and standard moisture absorption rate[J]. Engineering Journal of Wuhan University, 54 (4): 325-331. Jia J C, Song R Y, Huang Z Q. 2012. Expansive soil swelling strain model based on expansive force test data[J]. Railway Construction, 52 (11): 110-111, 135. Li G W, Gong Q Q, Li T, et al. 2021. Experimental study on properties of weak expansive soil improved by disintegrated sandstone[J]. Journal of Engineering Geology, 29 (1): 34-43. Li Z, Xing Y C, Zhang A J. 2005. Inundation deformation characteristics of expansive soils[J]. Journal of Hydraulic Engineering, 36 (11): 1385-1391. Lian J F, Luo Q, Zhang W S, et al. 2021. Nonlinear stress threshold for expansive soil strength and shallow stability of embankment slope[J]. Journal of Harbin Institute of Technology, 53 (3): 142-151. Liu H T, Zhao J M, Guo M X, et al. 2020. Swelling deformation and calculation model of expansive soil in Ankang area[J]. Journal of Water Resources & Water Engineering, 31 (6): 201-207. Miao L C, Yin Z Z, Zhong X C. 1998. Proceedings of stability and sliding forecast of expansive slope of the South-to-North Water Diversion Project Channel[C]. Wuhan: Changjiang River Scientific Research Institute: 123-127. Nauman I, Fuchu D, Zia R. 2020. Paper and wood industry waste as a sustainable solution for environmental vulnerabilities of expansive soil: A novel approach[J]. Journal of Environmental Management, 262 : 110285-1-13. Qin B, Chen Z H, Liu Y M, et al. 2008. Swelling-shrinkage behavior of Gaomiaozi bentonite[J]. Chinese Journal of Geotechnical Engineering, 30 (7): 1005-1010. Qin B, Lu Y, Zhang F Z, et al. 2016. Gas permeability of compacted bentonite considering Klinkenberg effect[J]. Chinese Journal of Geotechnical Engineering, 38 (12): 2194-2201. Shang Y H, Xu L R, Huang Y L, et al. 2020. Laboratory tests on dynamic modulus and damping ratio of cement-stabilized expansive soil as subgrade filling of heavy haul railway[J]. Journal of Engineering Geology 28 (1): 103-110. Si G W, Jiang L W, Luo Q, et al. 2016. Analysis on the effect of determinants on the expansive soil slope stability[J]. Chinese Journal of Underground Space and Engineering, 12 (S1): 386-392, 419. Tang C S, Shi B, Liu C. 2012. Study on desiccation cracking behavior of expansive soil[J]. Journal of Engineering Geology, 20 (5): 663-673. The National Standards Compilation Group of the People's Republic of China. 2013. Technical code for buildings in expansive soil regions(GB 50112-2013)[S]. Beijing: China Architecture & Building Press. The National Standards Compilation Group of the People's Republic of China. 2019. Standard for geotechnical(GB/T 50123-2019)[S]. Beijing: China Planning Press. The Professional Standards Compilation Group of the People's Republic of China. 2012. Technical specification for engineering geological prospecting and sampling of constructions(JTG/T 87-2012)[S]. Beijing: China Architecture & Building Press. Wang C, Wang Q C, Zhang R L, et al. 2017. Discriminant analysis of high speed railway expansive soil based on principal component analysis[J]. Journal of Railway Science and Engineering, 14 (8): 1571-1578. Wang L L, Yang G L. 2014. In-situ tests of vertical swelling pressures of mid-strong expansive soil[J]. Journal of the China Railway Society, 36 (1): 94-99. Yao C Q, Wei C F, Ma T T, et al. 2021. Experimental investigation on the influence of thermochemical effect on the pore-water status in expansive soil[J]. International Journal of Geomechanics, 21(6): doi: 10.1061/(ASCE)GM.1943-5622.0002020. Zhang A J, Ha A Y, Luo Y S. 2005. Swelling deformation and calculation methods of compacted expansive soil[J]. Chinese Journal of Rock Mechanics and Engineering, 24 (7): 1236-1241. Zhang W T, Dong W. 2006. Advanced course of SPSS statistical analysis[M]. Beijing: Higher Education Press: 213-227. Zhu G P, Chen Z H, Wei C F, et al. 2017. Meso-structural evolution of expansive soil in Nanyang during wetting-drying cycles under loading condition[J]. Computerized Tomography Theory & Applications, 26 (4): 411-424. 包秉纲. 2004. 非饱和土的性状及膨胀土边坡稳定问题[J]. 岩土工程学报, 26 (1): 1-15. https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC200401001.htm 陈强, 彭永良, 曹正正, 等. 2019. 循环荷载下兖石铁路路基膨胀土的动力特性试验研究[J]. 工程地质学报, 27 (4): 737-744. doi: 10.13544/j.cnki.xq2019030 陈正汉, 郭楠. 2019. 非饱和土与特殊土力学及工程应用研究的新进展[J]. 岩土力学, 40 (1): 1-52. https://www.cnki.com.cn/Article/CJFDTOTAL-YTLX201901002.htm 池泽成, 陈善雄, 周哲, 等. 2017. 合肥重塑膨胀土三向膨胀力试验研究[J]. 岩土力学, 38 (S1): 381-386. https://www.cnki.com.cn/Article/CJFDTOTAL-YTLX2017S1056.htm 高岭, 李建朋, 李雪校. 2021. 基于燕尾突变模型和标准吸湿含水率的膨胀土分类方法[J]. 武汉大学学报(工学版), 54 (4): 325-331. https://www.cnki.com.cn/Article/CJFDTOTAL-WSDD202104006.htm 贾景超, 宋日英, 黄志全. 2012. 基于膨胀力试验数据的膨胀土膨胀应变模型[J]. 铁道建筑, 52 (11): 110-111, 135. https://www.cnki.com.cn/Article/CJFDTOTAL-TDJZ201211038.htm 李国维, 巩齐齐, 李涛, 等. 2021. 崩解性砂软岩改良弱膨胀土性状实验研究[J]. 工程地质学报, 29 (1): 34-43. doi: 10.13544/j.cnki.jeg.2020-168 李振, 邢义川, 张爱军. 2005. 膨胀土的浸水变形特性[J]. 水利学报, 36 (11): 1385-1391. https://www.cnki.com.cn/Article/CJFDTOTAL-SLXB200511019.htm 连继峰, 罗强, 张文生, 等. 2021. 路堤边坡膨胀土强度非线性应力阈值与浅层稳定性[J]. 哈尔滨工业大学学报, 53 (3): 142-151. https://www.cnki.com.cn/Article/CJFDTOTAL-HEBX202103018.htm 刘宏泰, 赵佳敏, 郭敏霞, 等. 2020. 安康地区膨胀土膨胀变形与计算模式[J]. 水资源与水工程学报, 31 (6): 201-207. https://www.cnki.com.cn/Article/CJFDTOTAL-XBSZ202006031.htm 缪林昌, 殷纵泽, 仲晓晨. 1998. 南水北调膨胀土渠坡稳定和滑动早期预报研究论文集[C]. 武汉: 长江科学院: 123-127. 秦冰, 陈正汉, 刘月妙, 等. 2008. 高庙子膨润土的胀缩变形特性及其影响因素研究[J]. 岩土工程学报, 30 (7): 1005-1010. https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC200807012.htm 秦冰, 陆飏, 张发忠, 等. 2016. 考虑Klinkenberg效应的压实膨润土渗气特性研究[J]. 岩土工程学报, 38 (12): 2194-2201. 商拥辉, 徐林荣, 黄亚黎, 等. 2020. 重载铁路水泥改良膨胀土路基填料动弹模量及阻尼比研究[J]. 工程地质学报, 28 (1): 103-110. doi: 10.13544/j.cnki.jeg.2017-511 司光武, 蒋良潍, 罗强, 等. 2016. 膨胀土边坡稳定性影响因素的作用效应分析[J]. 地下空间与工程学报, 12 (S1): 386-392, 419. https://www.cnki.com.cn/Article/CJFDTOTAL-BASE2016S1061.htm 唐朝生, 施斌, 刘春. 2012. 膨胀土收缩开裂特性研究[J]. 工程地质学报, 20 (5): 663-673. http://www.gcdz.org/article/id/11185 王冲, 王起才, 张戎玲, 等. 2017. 基于主成分分析法的高速铁路膨胀土判别研究[J]. 铁道科学与工程学报, 14 (8): 1571-1578. https://www.cnki.com.cn/Article/CJFDTOTAL-CSTD201708002.htm 王亮亮, 杨果林. 2014. 中-强膨胀土竖向膨胀力原位试验[J]. 铁道学报, 36 (1): 94-99. https://www.cnki.com.cn/Article/CJFDTOTAL-TDXB201401019.htm 张爱军, 哈岸英, 骆亚生. 2005. 压实膨胀土的膨胀变形规律与计算模式[J]. 岩石力学与工程学报, 24 (7): 1236-1241. https://www.cnki.com.cn/Article/CJFDTOTAL-YSLX200507026.htm 张文彤, 董伟. 2006. SPSS统计分析高级教程[M]. 北京: 高等教育出版社: 213-227. 中华人民共和国国家标准编写组. 2013. 膨胀土地区建筑技术规范(GB 50112-2013)[S]. 北京: 中国建筑工业出版社. 中华人民共和国国家标准编写组. 2019. 土工试验方法标准(GB/T 50123-2019)[S]. 北京: 中国计划出版社. 中华人民共和国行业标准编写组. 2012. 建筑工程地质勘探与取样技术规程(JTG/T 87-2012)[S]. 北京: 中国建筑工业出版社. 朱国平, 陈正汉, 韦昌富, 等. 2017. 南阳膨胀土在受荷的湿干循环过程中细观结构演化规律研究[J]. CT理论与应用研究, 26 (4): 411-424. https://www.cnki.com.cn/Article/CJFDTOTAL-CTLL201704003.htm -
