广西地区炭质岩基本物质组成及其对崩解特性的影响

邵羽 米德才 叶琼瑶 唐正辉 刘先林

邵羽, 米德才, 叶琼瑶, 等. 2023. 广西地区炭质岩基本物质组成及其对崩解特性的影响[J]. 工程地质学报, 31(5): 1588-1596. doi: 10.13544/j.cnki.jeg.2021-0321
引用本文: 邵羽, 米德才, 叶琼瑶, 等. 2023. 广西地区炭质岩基本物质组成及其对崩解特性的影响[J]. 工程地质学报, 31(5): 1588-1596. doi: 10.13544/j.cnki.jeg.2021-0321
Shao Yu, Mi Decai, Ye Qiongyao, et al. 2023. Basic material composition of carbonaceous rocks in Guangxi Province and its influence on engineering geological characteristics[J]. Journal of Engineering Geology, 31(5): 1588-1596. doi: 10.13544/j.cnki.jeg.2021-0321
Citation: Shao Yu, Mi Decai, Ye Qiongyao, et al. 2023. Basic material composition of carbonaceous rocks in Guangxi Province and its influence on engineering geological characteristics[J]. Journal of Engineering Geology, 31(5): 1588-1596. doi: 10.13544/j.cnki.jeg.2021-0321

广西地区炭质岩基本物质组成及其对崩解特性的影响

doi: 10.13544/j.cnki.jeg.2021-0321
基金项目:

广西科技计划项目 GuiKe AC16380119

广西自然科学基金重点项目 2020GXNSFDA238024

中国博士后科学基金资助项目 2019M663874XB

广西科技基地和人才专项 GuiKe AD20238069

详细信息
    作者简介:

    邵羽(1987-),男,博士,高级工程师,主要从事特殊岩土与地下工程方面的研究工作. E-mail: GXUGEO@126.com

    通讯作者:

    刘先林(1985-),男,硕士,高级工程师,主要从事特殊岩土与地下工程方面的研究工作. E-mail: 154461842@qq.com

  • 中图分类号: P584

BASIC MATERIAL COMPOSITION OF CARBONACEOUS ROCKS IN GUANGXI PROVINCE AND ITS INFLUENCE ON ENGINEERING GEOLOGICAL CHARACTERISTICS

Funds:

the Science and Technology Project of Guangxi GuiKe AC16380119

Key Project of Natural Science Foundation of Guangxi 2020GXNSFDA238024

China Postdoctoral Science Foundation Funded Project 2019M663874XB

Special Fund for Science and Technology Bases and Talented Young Persons in Guangxi GuiKe AD20238069

  • 摘要: 炭质岩层常作为主要岩层或者夹层频繁出现在广西各时代地层单元中,因其易风化裂碎、崩解软化及工程性质对环境敏感,给广西地区公路工程建设带来诸多复杂问题。通过既有地质资料搜集、野外地质调查、取样测试等研究手段,对广西地区炭质岩的分布及组合特征、矿物组成、有机质特征开展研究,并对炭质岩崩解的影响因素及相应工程措施进行了探讨。研究表明:(1)广西地区炭质岩从新元古界至古近系均有分布,主要包括24个地层单元,其基本物质组成以黏土矿物、石英和碳酸盐岩矿物为主,且有机质含量较高,属于中-高级烃源岩的炭质岩类;(2)炭质岩所含黏土矿物中的伊利石和伊/蒙混层、高含量有机质以及硫化物是炭质岩在自然暴露状态下发生崩解的主要物质因素;(3)炭质岩边坡发生崩解的主要原因可分为4类:构造活动、黏土矿物的吸水膨胀性和受热脱水性、有机质和还原性矿物氧化分解反应、自然因素的影响。相关研究成果可为炭质岩地区边坡工程、隧道工程及路基工程的设计施工及处治工作提供重要参考。
  • 图  1  广西区内炭质岩分布图

    Figure  1.  Distribution of carbonaceous rocks in Guangxi Province

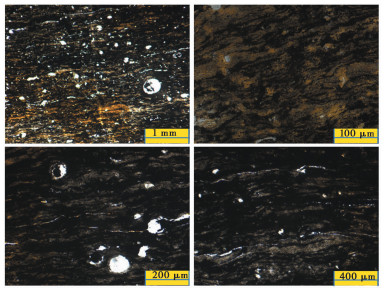

    图  2  中泥盆统罗富组炭质岩薄片显微照片

    Figure  2.  Microscope images of Middle Devonian carbonaceous rocks sections from Luofu Formation

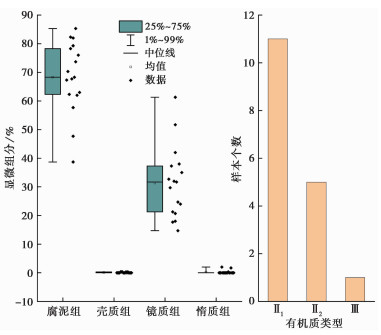

    图  3  塘丁组炭质岩干酪根显微组分及有机质类型

    Figure  3.  Maceral of organic kerogen for carbonaceous rocks of Luzhai Formation

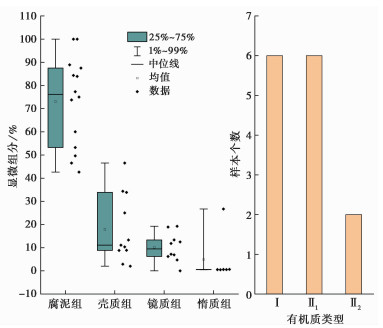

    图  4  罗富组炭质岩干酪根显微组分及有机质类型

    Figure  4.  Maceral of organic kerogen for carbonaceous rocks of Luofu Formation

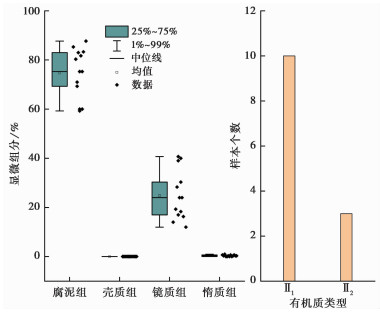

    图  5  鹿寨组炭质岩干酪根显微组分及有机质类型

    Figure  5.  Maceral of organic kerogen and types of organic matter for carbonaceous rocks of Luzhai Formation

    图  6  炭质硅质岩、炭质泥岩中的褶皱构造

    Figure  6.  Fold structure in the carbonaceous-siliceous rocks

    图  7  英塘组受热崩解的炭质泥岩

    Figure  7.  Disintegrated carbonaceous mudstone of

    图  8  炭质页岩表面絮状硫化物

    Figure  8.  Flocculent sulfide on the surface of carbonaceous shale

    表  1  炭质泥页岩矿物成分

    Table  1.   Mineral composition for carbonaceous shale

    所属组 样品编号 黏土矿物/% 石英/% 长石/% 方解石/% 白云石/% 菱铁矿/% 硬石膏/% 黄铁矿/%
    高岭石 绿泥石 伊利石 蒙脱石 伊/蒙混层 绿/蒙混层
    塘丁组(D1-2t) TD-1 0.8 6.5 4.7 0 29.5 0.5 37.9 2.0 2.0 13.0 0.9 1.1 0.9
    TD-2 1.2 5.5 4.3 0 29.6 0.4 32.9 2.0 10 10.1 1.1 0.9 1.9
    TD-3 1.0 3.9 8.0 0 25.0 0.1 37.0 2.2 16.9 3.0 0.9 1.1 0.9
    罗富组(D2l) LF-1 3.0 5.6 4.6 0 27.7 0 33.1 3.3 12.8 8.7 1.2 0 0
    LF-2 2.5 6.9 9.3 0 36.5 0 31.2 3.9 1.1 3.5 2.1 2.3 0.8
    LF-3 2.1 4.9 6.9 0 21.0 0 36.4 3.1 2.3 11.1 9.7 1.0 1.5
    鹿寨组(C1lz) LZ-1 2.5 0 3.6 0 42.7 0 44.9 0 0 5.3 0 0.8 0.2
    LZ-2 0 2.5 4.5 0 36.8 0 35.2 1.2 9.8 7.6 1.4 0.9 0
    LZ-3 0.6 3.1 4.2 0 27.7 4.0 36.0 0 6.9 16.6 0 0 0.9
    英塘组(C1yt) YT-1 0 0.4 8.1 0 31.6 0 51.6 0 7.6 0 0 0 0.6
    YT-2 0.3 2.0 10.1 0 28.4 2.0 42.9 1.0 5.9 3.5 1.9 1.5 0.5
    YT-3 0 0.4 9.2 0 35.7 0 35.6 3.5 10.1 2.3 0.9 1.4 0.9
    下载: 导出CSV

    表  2  炭质岩类型分类

    Table  2.   Classification of carbonaceous rocks

    岩石类型 TOC含量
    <0.5% 0.5%~1% 1%~4% ≥4%
    无页理 泥岩 含炭泥岩 炭质泥岩 高炭泥岩
    有页理 页岩 含炭页岩 炭质页岩 高炭页岩
    下载: 导出CSV

    表  3  中-下泥盆统塘丁组炭质页岩TOC统计表

    Table  3.   Statistical table for the total organic carbon content of carbonaceous shale in the Tangding Formation of Middle-Lower Devonian

    采样位置 最小值/% 最大值/% 平均值/% 样品个数 数据来源
    南丹同贡 0.36 0.61 0.47 3 实测
    罗富剖面 0.65 4.70 1.85 25 页岩气地质调查
    桂页1井 0.53 6.21 2.41 页岩气地质调查
    下载: 导出CSV

    表  4  中泥盆统罗富组炭质页岩TOC统计表

    Table  4.   Statistical table for the total organic carbon content of carbonaceous shale in the Luofu Formation of Middle Devonian

    采样位置 最小值/% 最大值/% 平均值/% 样品个数 数据来源
    南丹车河 0.11 0.81 0.37 6 实测
    南丹大厂 0.54 4.74 3.14 14 页岩气地质调查
    桂页1井 0.23 3.96 1.44 50 页岩气地质调查
    下载: 导出CSV

    表  5  中下石炭统鹿寨组炭质页岩TOC统计表

    Table  5.   Statistical table for the total organic carbon content of carbonaceous shale in the Luzhai Formation of Lower carboniferous

    采样位置 最小值/% 最大值/% 平均值/% 样品个数 数据来源
    环江浅凹 0.73 3.37 1.62 30 实测
    柳城斜坡 0.89 3.90 2.65 11 页岩气地质调查
    宜山断凹 0.47 3.60 1.88 15 页岩气地质调查
    东塘1井 0.42 1.34 0.98 83 页岩气地质调查
    下载: 导出CSV

    表  6  干酪根镜检划分有机质类型表

    Table  6.   Type tables for organic matter by microscopic examination of kerogen

    类型 Ⅰ型(腐泥型) 1(腐植-腐泥型) 2(腐泥-腐植型) Ⅲ(腐植型)
    干酪根镜检 壳质组/% 70~90 70~50 50~10 <10
    镜质组/% <10 10~20 20~70 70~90
    TI 80~100 80~40 40~0 <0
    下载: 导出CSV
