含水合物土抗拉强度特性

徐玉博 姜大伟 颜荣涛 于鸿飞

徐玉博, 姜大伟, 颜荣涛, 等. 2023. 含水合物土抗拉强度特性[J]. 工程地质学报, 31(5): 1563-1572. doi: 10.13544/j.cnki.jeg.2021-0579
引用本文: 徐玉博, 姜大伟, 颜荣涛, 等. 2023. 含水合物土抗拉强度特性[J]. 工程地质学报, 31(5): 1563-1572. doi: 10.13544/j.cnki.jeg.2021-0579
Xu Yubo, Jiang Dawei, Yan Rongtao, et al. 2023. Tensile strength characteristics of hydrate-bearing soil[J]. Journal of Engineering Geology, 31(5): 1563-1572. doi: 10.13544/j.cnki.jeg.2021-0579
Citation: Xu Yubo, Jiang Dawei, Yan Rongtao, et al. 2023. Tensile strength characteristics of hydrate-bearing soil[J]. Journal of Engineering Geology, 31(5): 1563-1572. doi: 10.13544/j.cnki.jeg.2021-0579

含水合物土抗拉强度特性

doi: 10.13544/j.cnki.jeg.2021-0579
基金项目:

国家自然科学基金 11962004

国家自然科学基金 12262009

广西自然科学基金项目 2017GXNSFAA198215

详细信息
    作者简介:

    徐玉博(1996-),男,硕士生,主要从事含水合物土力学特性的研究工作. E-mail: xyb1120@163.com

    通讯作者:

    颜荣涛(1984-),男,博士,教授,硕士生导师,主要从事含水合物土力学特性的研究工作. E-mail: yrt301@163.com

  • 中图分类号: P642.3

TENSILE STRENGTH CHARACTERISTICS OF HYDRATE-BEARING SOIL

Funds:

the National Natural Science Foundation of China 11962004

the National Natural Science Foundation of China 12262009

Guangxi Natural Science Foundation Project 2017GXNSFAA198215

  • 摘要: 含水合物土的抗拉强度特性对含水合物地层的稳定评估具有重要意义。以黏质粉土为赋存介质,利用四氢呋喃(THF)合成含水合物土试样,在冷冻库中利用改进后的单轴拉伸装置研究了含水合物土单轴抗拉强度特性。试验结果表明水合物饱和度、试样干密度、细粒含量对含水合物土的抗拉强度存在明显影响。随着水合物饱和度的增加,抗拉强度呈现指数函数的增长趋势。干密度和细粒含量对抗拉强度的影响在不同的水合物饱和度情况下影响不同,在低水合物饱和度情况下,干密度和细粒含量的增加会使抗拉强度增强;而在较高的水合物饱和度情况下,抗拉强度则随着干密度和细粒含量增加而降低。此外,通过分析含水合物土的波速特性,建立抗拉强度与波速之间的经验关系式。这一关系式对采用声波来估算含水合物土试样的抗拉特性具有重要的参考意义。

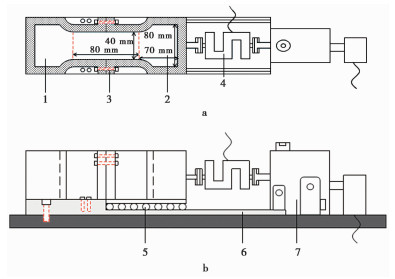

  • 图  1  抗拉强度试验装置设计平面图及侧视图

    a. 平面图,b. 侧面图;1. 拉伸固定端,2. 拉伸移动端,3. 固定螺栓,4. 测力传感器,5. 包裹式轴承,6. 底板,7. 步进电机

    Figure  1.  The design planar and lateral plots for the tensile strength test apparatus

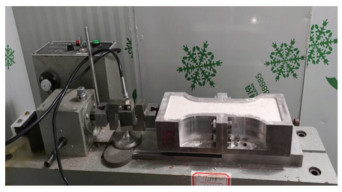

    图  2  抗拉强度试验装置实物图

    Figure  2.  The real plot of tensile strength test apparatus

    图  3  抗拉试样

    Figure  3.  Sample for tension test

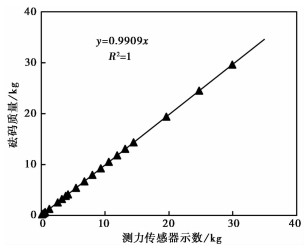

    图  4  测力传感器的校核(测力传感器以kg为单位进行校正)

    Figure  4.  The check result for the force sensor

    图  5  声波测试试样

    Figure  5.  Sample for acoustic wave test

    图  6  拉伸应力-拉应变曲线(σd=1.6g · cm-3)

    Figure  6.  The tension stress versus the tensile strain for hydrate-bearing soil(1.6g · cm-3)

    图  7  水合物饱和度与抗拉强度的关系(ρd=1.6g · cm-3)

    Figure  7.  Relationship between hydrate saturation and tensile strength(ρd=1.6g · cm-3)

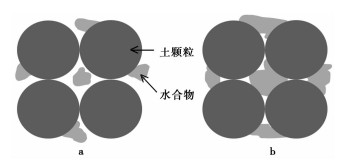

    图  8  土体结构微观示意图

    a. 孔隙填充;b. 持力体

    Figure  8.  Microcosmic diagram of soil structure

    图  9  不同水合物饱和度下干密度与抗拉强度的关系

    Figure  9.  Relationship between dry density and tensile strength at different hydrate saturations(FC=87%)

    图  10  不同水合物饱和度下细粒含量与抗拉强度的关系(ρd=1.6g · cm-3)

    Figure  10.  Relationship between fine grain content and tensile strength at different hydrate saturations(ρd=1.6g · cm-3)

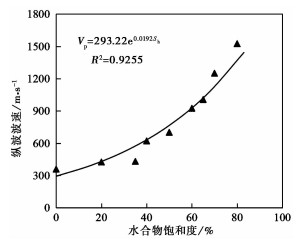

    图  11  水合物饱和度与纵波波速的关系(ρd=1.6g · cm-3)

    Figure  11.  Relationship between hydrate saturation and longitudinal wave velocity(ρd=1.6g · cm-3

    图  12  模型预测与试验结果对比(ρd=1.6g · cm-3)

    Figure  12.  Comparison between model simulation and testing result(ρd=1.6g · cm-3)

    表  1  土的成分表

    Table  1.   Composition of soil

    土样名称及类别 各粒径质量占比/% 粒径级配不均匀系数Cu 颗分曲线的曲率系数Cc 塑性指数
    1.0~0.5 mm 0.5~0.25 mm 0.25~0.075 mm ≤0.075 mm
    FC=87%(黏质粉土) 0.50 2.50 10.00 87.00 19 1.89 9.49
    FC=49.85%(粉砂) 3.50 7.50 39.15 49.85 30 1.95
    FC=12.70%(细砂) 1.70 13.30 72.30 12.70 2.98 1.36
    表 1中FC是Fine Content的缩写,代指细粒含量
    下载: 导出CSV

    表  2  不同干密度不同水合物饱和度试样中水合物的体积(FC=87%)

    Table  2.   Hydrate volumes in samples with different dry densities and hydrate saturation(FC=87%)

    干密度/g·cm-3 Sh=0.35 Sh=0.5 Sh=0.65
    1.5 71.85 102.640 133.43
    1.6 65.60 93.720 121.84
    1.7 59.35 84.793 110.23
    下载: 导出CSV
