钙质砂破碎过程及其微观机制试验研究

张丙树 顾凯 李金文 唐朝生 施斌 李天斌

张丙树,顾凯,李金文,等.2020.钙质砂破碎过程及其微观机制试验研究[J].工程地质学报,28(4):725-733.doi:10.13544/j.cnki.jeg. 2019-312
引用本文: 张丙树,顾凯,李金文,等.2020.钙质砂破碎过程及其微观机制试验研究[J].工程地质学报,28(4):725-733.doi:10.13544/j.cnki.jeg. 2019-312
Zhang Bingshu,Gu Kai,Li Jinwen,et al.2020.Study on crushing process and microscopic mechanism of calcareous sand[J].Journal of Engineering Geology,28(4):725-733.doi: 10.13544/j.cnki.jeg.2019-312
Citation: Zhang Bingshu,Gu Kai,Li Jinwen,et al.2020.Study on crushing process and microscopic mechanism of calcareous sand[J].Journal of Engineering Geology,28(4):725-733.doi: 10.13544/j.cnki.jeg.2019-312

钙质砂破碎过程及其微观机制试验研究

doi: 10.13544/j.cnki.jeg.2019-312
基金项目:

国家自然科学青年基金 41502274

南京大学技术创新基金重点项目,地质灾害防治与地质环境保护国家重点实验室开放基金 SKLGP2016K010

国家自然科学基金面上项目 41977217

详细信息
    作者简介:

    张丙树(1996-),男,硕士生,主要从事海洋工程地质研究. E-mail: MF1729033@nju.edu.cn

    通讯作者:

    顾凯(1987-),男,博士,副教授,主要从事环境工程地质研究. E-mail: gukai@nju.edu.cn

  • 中图分类号: P642.3

STUDY ON CRUSHING PROCESS AND MICROSCOPIC MECHANISM OF CALCAREOUS SAND

Funds:

This research is supported by the Youth Program of National Natural Science Foundation of China 41502274

The Key Project of Nanjing University Technology Innovation Fund, Open Foundation of State Key Laboratory of Geohazard Prevention and Geoenvironmental Protection, Chengdu University of Technology SKLGP2016K010

The National Natural Science Foundation of China 41977217

  • 摘要: 为了掌握南海钙质砂压缩变形特征及其微观机制,对3种不同粒组(S1:1.43~2mm、S2:0.5~1mm、S3:0.5~2mm)的钙质砂进行100~3200kPa压力范围的压缩试验,利用自制的砂土微观结构提取装置和图像处理软件(PCAS)获得并分析了钙质砂压缩过程中微观结构。结果表明:(1)钙质砂的大小、形状和级配对颗粒的破碎具有显著影响,当压力较低时(<800kPa),粒径较大的S1组以砂颗粒棱角破碎为主;粒径较小的S2组没有明显破裂,相对规则的颗粒形态使S2粒组在该压力范围内主要因颗粒的滚动与重分布导致压缩;级配良好的S3组除部分低宽度断肢状颗粒外其余大小、形态颗粒无明显破裂。(2)当压力较大时(>800kPa),S1组钙质砂逐渐转向以颗粒的整体破坏为主的破碎形式;S2、S3两组试样随着密实度的提高,砂颗粒的破坏以整体破碎为主。基于对破碎过程中试样微观结构变化的提取与分析,总结并提出了控制钙质砂颗粒破碎的4种接触模式:点-线接触、线-面接触、面-面接触和复合接触,可用于判断不同条件下的颗粒破碎形式。最后,讨论了钙质砂在破碎过程中颗粒几何参数的变化。

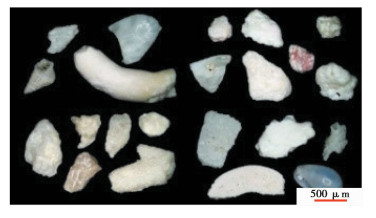

  • 图  1  本文所用钙质砂的典型颗粒形态

    Figure  1.  Typical calcareous sand morphology in this study

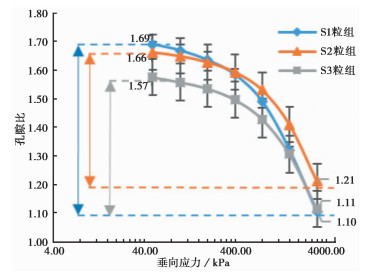

    图  2  不同粒径、级配下试样的e-lgp曲线

    Figure  2.  e-lgp curves with different particle sizes and gradations

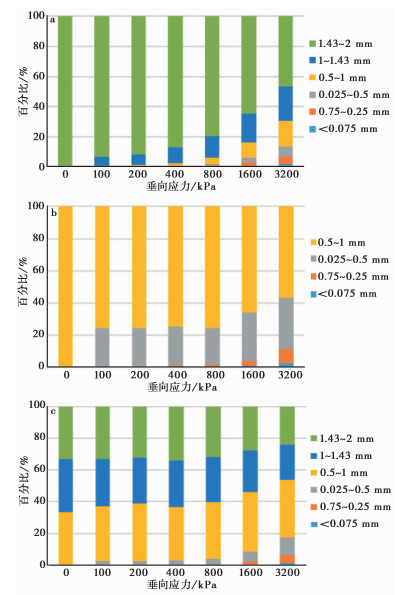

    图  3  压缩过程中各粒组百分比变化图

    a. S1粒组;b. S2粒组;c. S3粒组

    Figure  3.  Percentage change pattern of each particle group during compression

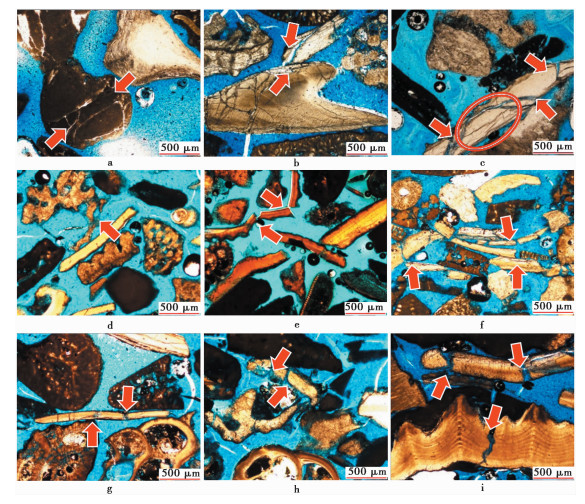

    图  4  钙质砂在不同压力下破碎后的微观结构特征

    a. S1-200kPa;b. S1-800kPa;c. S1-3200kPa;d. S2-400kPa;e. S2-800kPa;f. S2-3200kPa;g. S3-800kPa;h. S3-1600kPa;i. S3-3200kPa

    Figure  4.  Microstructure characteristics of broken calcareous sand under different pressure levels

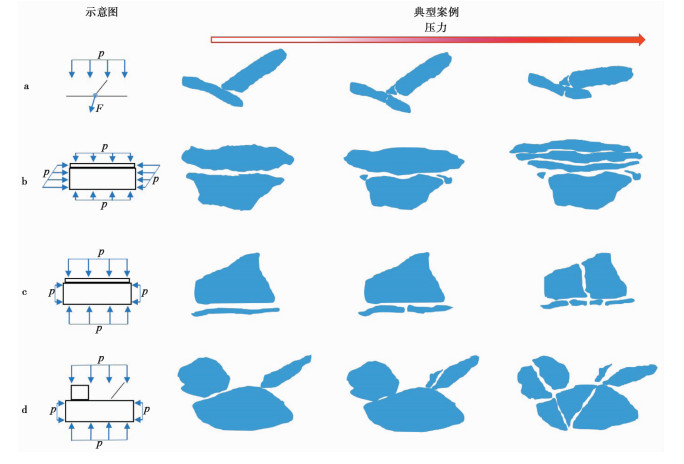

    图  5  不同接触形式下颗粒破坏示意图

    Figure  5.  Schematic diagram of particle failure under different contact forms

    表  1  各粒径砂颗粒基本几何参数

    Table  1.   Basic geometric parameter of various particle size

    粒径
    范围
    /mm
    平均
    周长
    /mm
    最大
    长度
    /mm
    平均
    长度
    /mm
    最大
    宽度
    /mm
    平均
    宽度
    /mm
    平均
    长宽比
    平均
    形状
    系数
    0.5~1 2.57 1.68 0.91 0.94 0.61 1.49 0.73
    1~2 5.31 3.59 1.89 1.65 1.2 1.58 0.70
    下载: 导出CSV

    表  2  各粒组颗粒统计参数

    Table  2.   Sand sample particle statistical

    粒组 压力
    /kPa
    最大长度
    /mm
    平均长度
    /mm
    最大宽度
    /mm
    平均宽度
    /mm
    形状
    系数
    S1粒组 100 1.45 0.60 0.62 0.27 0.43
    200 0.91 0.43 0.45 0.18 0.39
    400 1.54 0.65 0.74 0.32 0.40
    800 0.97 0.32 0.57 0.17 0.46
    1600 1.92 0.85 0.79 0.36 0.44
    3200 0.77 0.29 0.38 0.13 0.50
    S2粒组 100 1.07 0.42 0.59 0.20 0.49
    200 1.12 0.54 0.60 0.25 0.41
    400 0.56 0.29 0.30 0.15 0.45
    800 0.99 0.45 0.53 0.21 0.46
    1600 0.57 0.24 0.29 0.12 0.46
    S3粒组 100 1.40 0.65 0.56 0.28 0.48
    200 1.34 0.72 0.62 0.32 0.50
    400 0.77 0.29 0.36 0.13 0.40
    800 0.82 0.31 0.45 0.14 0.43
    1600 0.79 0.27 0.39 0.12 0.43
    3200 0.77 0.26 0.40 0.12 0.46
    下载: 导出CSV
