A PRELIMINARY STUDY ON SPATIAL DISTRIBUTION PATTERNS OF LANDSLIDES TRIGGERED BY JIUZHAIGOU EARTHQUAKE IN SICHUAN ON AUGUST 8TH, 2017 AND THEIR SUSCEPTIBILITY ASSESSMENT

doi: 10.13544/j.cnki.jeg.2017.04.030

  • State Key Laboratory of Geo-hazards Prevention and Geo-environment Protection, Chengdu University of Technology, Chengdu 610059

Funds:

  • Received Date: 2017-09-04
  • Accepted Date: 2017-09-07
  • Publish Date: 2017-08-25
    Abstract

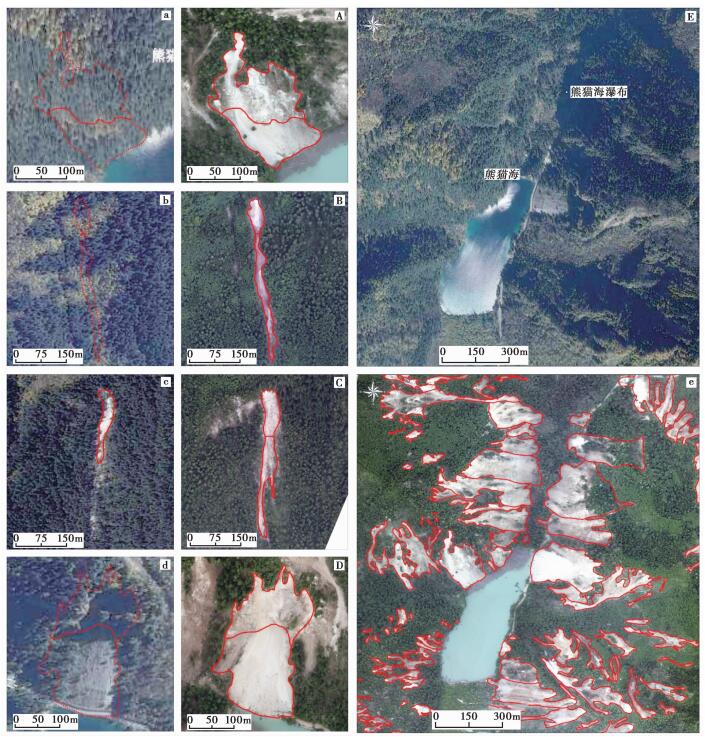

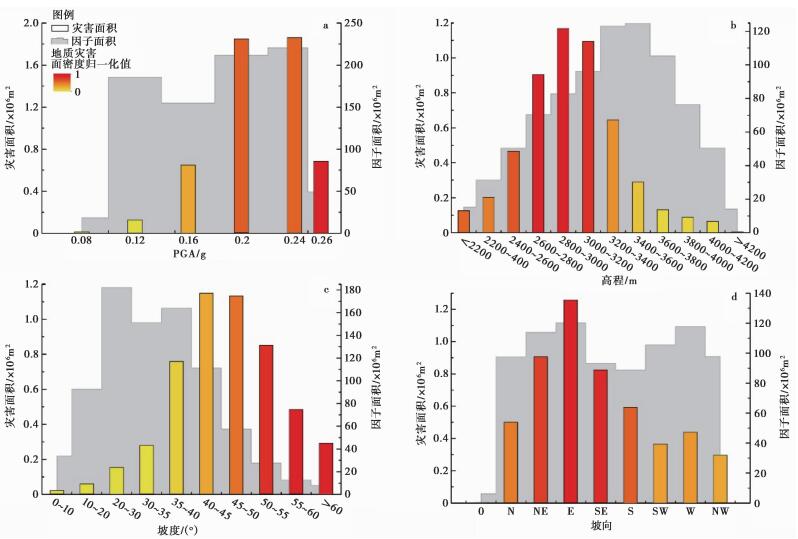

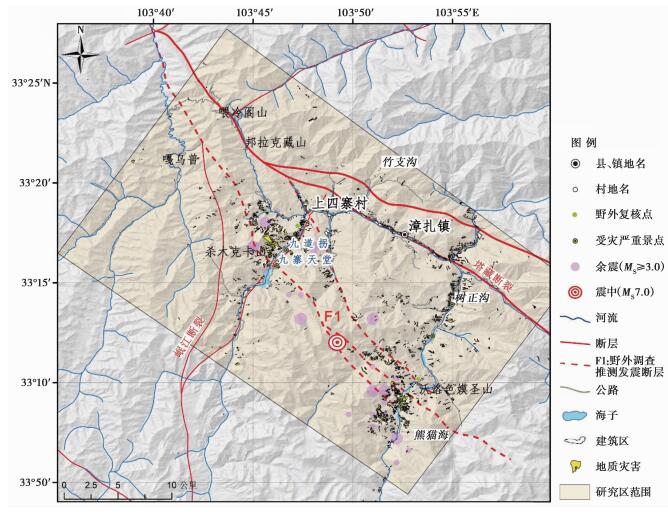

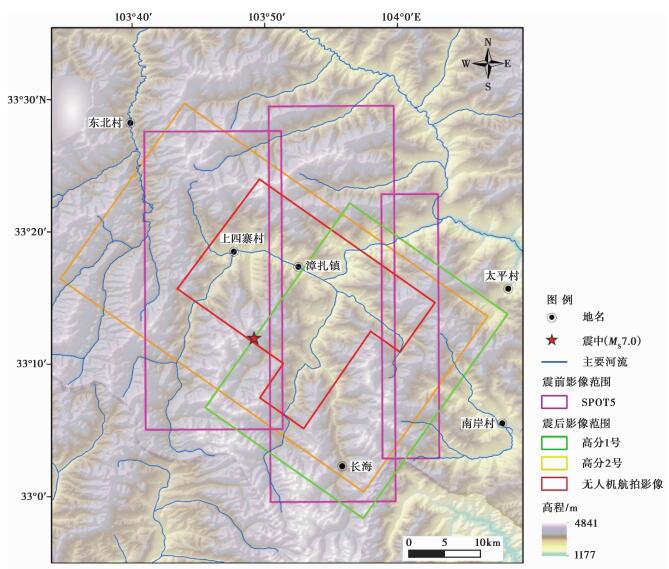

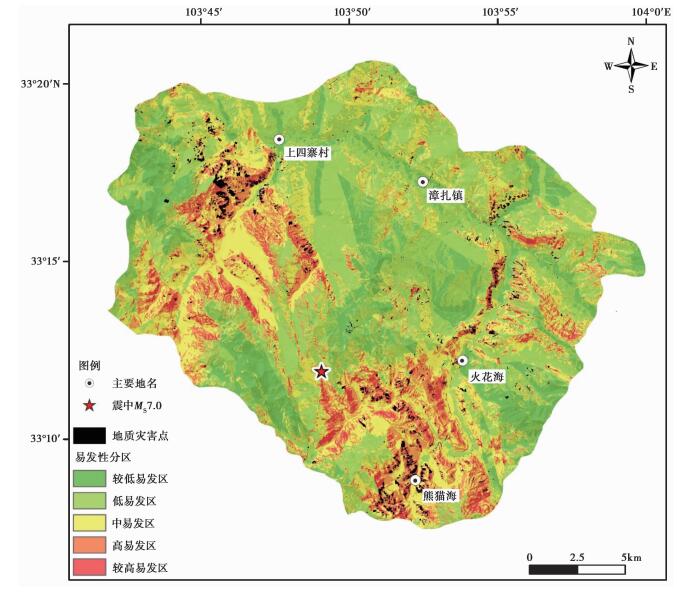

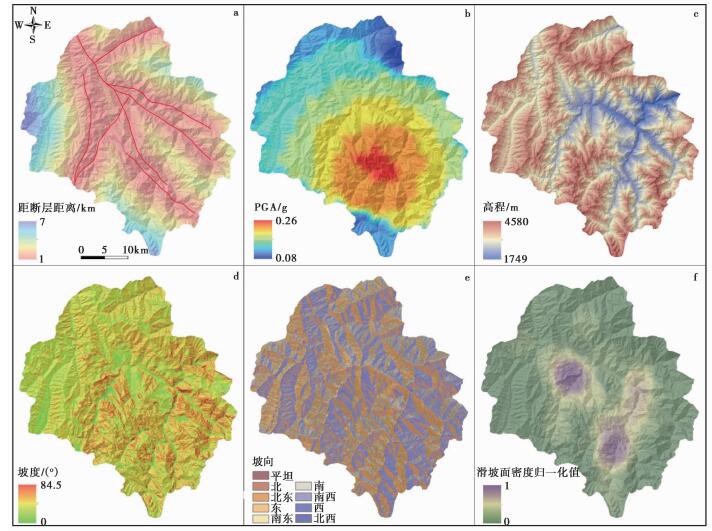

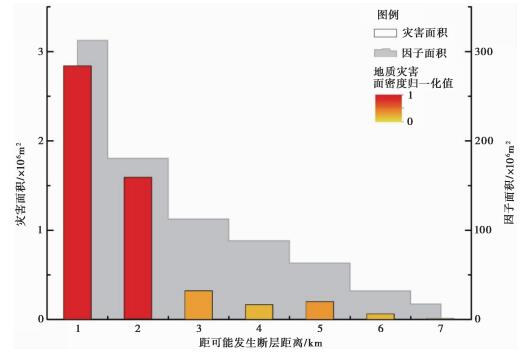

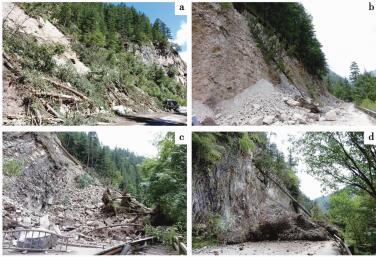

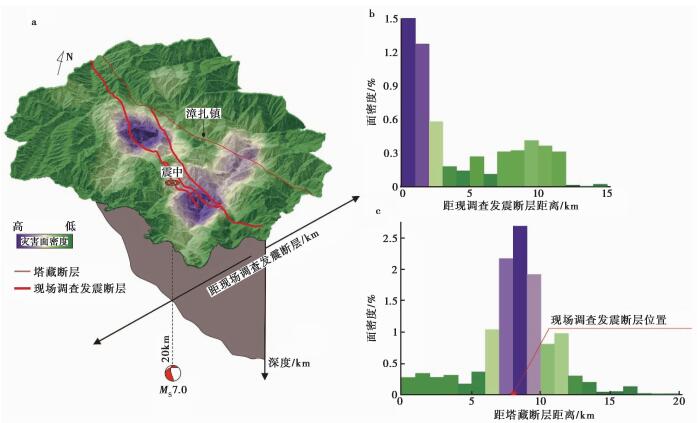

  • A magnitude 7.0 earthquake struck Jiuzhaigou on August 8th, 2017 in Sichuan province, which is another strong earthquake happened in Sichuan province after the 2008 great Wenchuan earthquake and the 2013 Lushan earthquake. In order to provide scientific evidence for on-the-spot rescue work and geologic hazard prevention after the earthquake, the author arrived quickly on the field and finished geologic hazard interpretation and review work in the earth-stricken areas based on high resolution remote sensing images before and after the earthquake. As a result, 1833 earthquake-induced geohazards have been obtained in the study area of 840km2, which are mainly medium-scale and small-scale shallow landslides and collapses. In terms of the results of the interpretation, the spatial distribution patterns and control factors in the cosesmic geohazards (distance from the fault, PGA, elevation, slope, aspect etc.) are analyzed, the research shows that the geohazards triggered by earthquake have the features of zonal distribution mainly distributed along north-west and east-south, especially along the roads and valleys. The width of strong development zone along the field inferred seismogenic fault is about 2km, showing a distinct faulting effect, but the spatial correlation betweem geohazards and Tazang fault is weak. Based on the above-described analysis, logistic regression model is taken quick comments and divisions of geologic hazard susceptibility are made. After statists and testing, the accuracy of this model has reached 0.851, a comparatively high precise data.
    • FullText(HTML)
  • loading
    • References(40)
  • Chang M, Tang C, Xia C H, et al. 2016. Spatial distribution analysis of landslide triggered by the 2013-04-20 Lushan earthquake, China[J]. Earthquake Engineering and Engineering Vibration, 15(1):163~171. doi: 10.1007/s11803-016-0313-5
    Chen X L, Yu L, Wang M M, et al. 2014. Brief Communication:Landslides triggered by the MS=7.0 Lushan earthquake, China[J]. Nature Hazards and Earth System Sciences, 1(4):3891~3918. doi: 10.5194/nhess-14-1257-2014
    Chigira M, Yagi H. 2006. Geological and geomorphological characteristics of landslides triggered by the 2004 Mid Niigta prefecture earthquake in Japan[J]. Engineering Geology, 82(4):202~221. doi: 10.1016/j.enggeo.2005.10.006
    Cruden D M, Varnes D J. 1996. Landslide types and processes//Turner A K, Schuster R L. Landslides. Investigation and Mitigation. Transportation Research Board Special Report 247[M]. Washington DC:National Academy Press:36~75.
    Dai F C, Xu C, Yao X, et al. 2011. Spatial distribution of landslides triggered by the 2008 MS8.0 Wenchuan earthquake, China[J]. Journal of Asian Earth Sciences, 40(4):883~895. doi: 10.1016/j.jseaes.2010.04.010
    Fan X, Xu Q, Westen C J V, et al. 2017. Characteristics and classification of landslide dams associated with the 2008 Wenchuan earthquake[J]. Geoenvironmental Disasters, 4(1):12. doi: 10.1186/s40677-017-0079-8
    Gorum T, Fan X, Westen C J V, et al. 2011. Distribution pattern of earthquake-induced landslides triggered by the 12 May 2008 Wenchuan earthquake[J]. Geomorphology, 133(3):152~167. http://www.sciencedirect.com/science/article/pii/S0169555X11002649
    Hang R Q, Li W L. 2009. Fault effect analysis of Geo-hazard triggered by Wenchuan earthquake[J]. Journal of Engineering Geology, 17(1):19~28. http://www.gcdz.org/EN/abstract/abstract8399.shtml
    Huang R, Fan X. 2013. The landslide story[J]. Nature Geoscience, 6(5), 325~326. doi: 10.1038/ngeo1806
    Huang R, Pei X, Fan X, et al. 2012. The characteristics and failure mechanism of the largest landslide triggered by the Wenchuan earthquake, May 12, 2008, China[J]. Landslides, 9(1):131~ 142. doi: 10.1007/s10346-011-0276-6
    Huang R Q, Li W L. 2008. Research on development and distribution rules of geohazards induced by Wenchuan earthquake on 12th May, 2008[J]. Chinese Journal of Rock Mechanics and Engineering, 27(12):2585~2592. http://en.cnki.com.cn/article_en/cjfdtotal-yslx200812032.htm
    Kargel J S, Leonard G J, Shugar D H, et al. 2016. Geomorphic and geologic controls of geohazards induced by Nepals 2015 Gorkha earthquake[J]. Science, 351(6269). http://www.ncbi.nlm.nih.gov/pubmed/26676355
    Keefer D K. 1984. Landslides caused by earthquakes[J]. Geological Society of America Bulletin, 95(4):406~421. doi: 10.1130/0016-7606(1984)95<406:LCBE>2.0.CO;2
    Keefer D K. 2010. Earthquake-induced landslides from horseback surveys through GIS analyses (Sergey Soloviev Medal Lecture)[J]. Egu General Assembly, 12:14677. http://adsabs.harvard.edu/abs/2010eguga..1214677k
    Keefer D K. 2000. Statistical analysis of an earthquake-induced landslide distribution-the 1989 Loma Prieta, California event[J]. Engineering Geology, 58(3):231~249. http://www.sciencedirect.com/science/article/pii/S0013795200000375
    Larsen I J, Montgomery D R, Korup O. 2010. Landslide erosion controlled by hillslope material[J]. Nature Geoscience, 3(4):247~251. doi: 10.1038/ngeo776
    Li Y H, Huang C, Yi S J, et al. 2017. Study on seismic fault and source rupture tectonic dynamic mechanism of Jiuzhaigou MS7.0 earthquake[J]. Journal of Engineering Geology, 25 (4):1141~ 1150.
    Malamud B D, Turcotte D L, Guzzetti F, et al. 2004. Landslide inventories and their statistical properties[J]. Earth Surface Processes and Landforms, 29(6):687~711. doi: 10.1002/(ISSN)1096-9837
    Sato H P, Hasegawa H, Fujiwara S, et al. 2007. Interpretation of landslide distribution triggered by the 2005 Northern Pakistan earthquake using SPOT 5 imagery[J]. Landslides, 4(2):113~122. doi: 10.1007/s10346-006-0069-5
    Soeters R, Westen C V. 1996. Slope instability recognition, analysis and zonation// Turner A K, Schuster R. Landslides Investigation and Mitigation. Transportation Research Board Special Report[M]. Washington DC:National Academy Press:247.
    Tang C, Ma G C. 2015. Small regional geohazards susceptibility mapping based on geomorphic unit[J]. Scientia Geographica Sinica, 35(1):91~98. http://en.cnki.com.cn/Article_en/CJFDTotal-DLKX201501011.htm
    Tian C S, Liu X L, Wang J. 2016. Geohazard susceptibility assessment based on CF model and logistic regression models in Guangdong[J]. Hydrogeology & Engineering Geology, 43(6):154~170.
    Westen C V, Gorum T. 2010. Preliminary results on earthquake triggered landslides for the Haiti earthquake(January 2010)[J]. Egu General Assembly Conference, 11153. http://adsabs.harvard.edu/abs/2010EGUGA..1211153V
    Xu C, Xu X W, Wu X Y, et al. 2013a. Detailed catalog of landslides triggered by the 2008 Wenchuan earthquake and statistical analyses of their spatial distribution[J]. Journal of Engineering Geology, 21(1):25~44. http://en.cnki.com.cn/Article_en/CJFDTotal-GCDZ201301005.htm
    Xu C, Xu X W, Zheng W J. 2013b. Compiling inventory of landslides triggered by Minxian-Zhangxian earthquake of July 22, 2013 and their spatial distribution analysis[J]. Journal of Engineering Geology, 21(5):736~749.
    Xu C, Xu X W.2013c. Response rate of seismic slope mass movements related to 2008 Wenchuan earthquake and its spatial distribution analysys[J]. Chinese Journal of Rock Mechanics and Engineering, 32(S2):3888~3908. http://en.cnki.com.cn/Article_en/CJFDTotal-YSLX2013S2113.htm
    Xu Q, Li W L.2010a. Study on the direction effects of landslides triggered by Wenchuan earthquake[J]. Journal of Sichuan University(Engineering Science Edition), 42(S1):7~14. http://en.cnki.com.cn/Article_en/CJFDTOTAL-SCLH2010S1003.htm
    Xu Q, Li W L. 2010b. Distribution of large-scale landslides induced by the Wenchuan earthquake[J]. Journal of Engineering Geology, 18(6):818~826. http://www.gcdz.org/EN/abstract/abstract8731.shtml
    Zou Q, Wang Q, Liu Y G. 2014. Evaluation method of debris-flow susceptibility using GIS and logistic model[J]. Bulletin of Soil and Water Conservation, 34(3):185~189. http://en.cnki.com.cn/Article_en/CJFDTotal-STTB201403036.htm
    黄润秋, 李为乐. 2008. "5·12"汶川大地震触发地质灾害的发育分布规律研究[J].岩石力学与工程学报, 27(12):2585~2592. doi: 10.3321/j.issn:1000-6915.2008.12.028
    黄润秋, 李为乐. 2009.汶川大地震触发地质灾害的断层效应分析[J].工程地质学报, 17(1):19~28. http://www.gcdz.org/CN/abstract/abstract8399.shtml
    李渝生, 黄超, 易树健等. 2017.九寨沟7.0级地震的地震断裂及震源破裂的构造动力学机理研究[J].工程地质学报, 25 (4):1141~1150. http://www.gcdz.org/CN/abstract/abstract12453.shtml
    唐川, 马国超. 2015.基于地貌单元的小区域地质灾害易发性分区方法研究[J].地理科学, 35(1):91~98. http://www.cnki.com.cn/Article/CJFDTOTAL-DLKX201501011.htm
    田春山, 刘希林, 汪佳. 2016.基于CF和Logistic回归模型的广东省地质灾害易发性评价[J].水文地质工程地质, 43 (6):154~ 170. http://www.cnki.com.cn/Article/CJFDTOTAL-SWDG201606025.htm
    许冲, 徐锡伟, 吴熙彦, 等.2013a.2008年汶川地震滑坡详细编目及其空间分布规律分析[J].工程地质学报, 21(1):25~44. http://www.gcdz.org/CN/abstract/abstract11246.shtml
    许冲, 徐锡伟, 郑文俊.2013b.2013年7月22日岷县漳县MS6.6级地震滑坡编录与空间分布规律分析[J].工程地质学报, 21(5):736~749. http://www.gcdz.org/CN/abstract/abstract11342.shtml
    许冲, 徐锡伟.2013c.2008年汶川地震导致的斜坡物质响应率及其空间分布规律分析[J].岩石力学与工程学报, 32 (S2):3888~ 3908. http://www.cnki.com.cn/Article/CJFDTOTAL-YSLX2013S2113.htm
    许强, 李为乐.2010a.汶川地震诱发滑坡方向效应研究[J].四川大学学报(工程科学版), 42(S1):7~14. http://www.cnki.com.cn/Article/CJFDTOTAL-SCLH2010S1003.htm
    许强, 李为乐.2010b.汶川地震诱发大型滑坡分布规律研究[J].工程地质学报, 18(6):818~826. http://www.gcdz.org/CN/abstract/abstract8731.shtml
    邹强, 王青, 刘延国. 2014.基于GIS与Logistic模型的公路泥石流易发性分析[J].水土保持通报, 34(3):185~189. http://www.cnki.com.cn/Article/CJFDTOTAL-STTB201403036.htm
